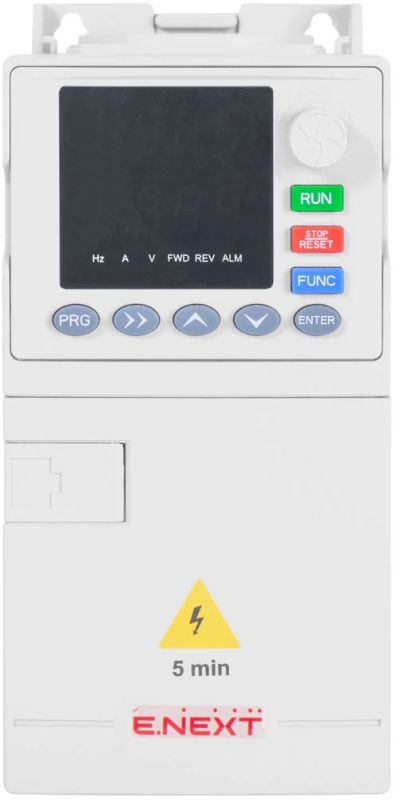

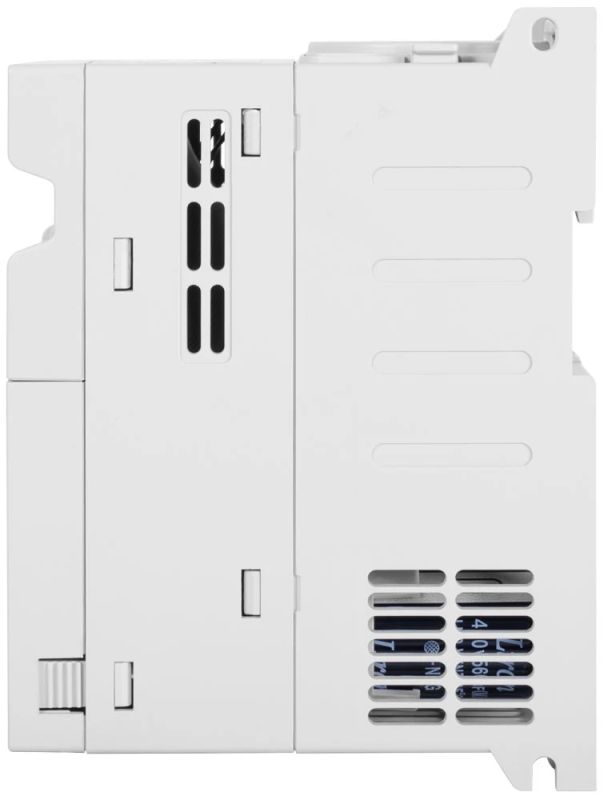

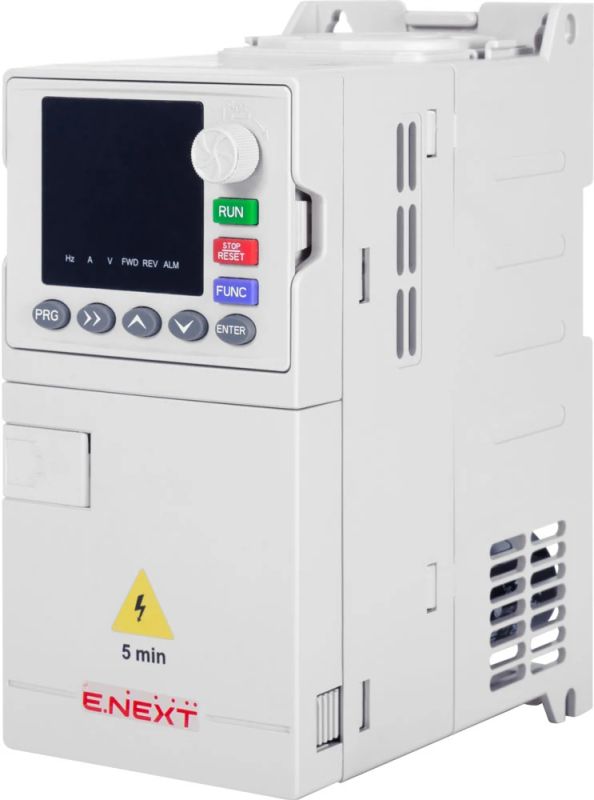

Frequency converter E.NEXT e.f-drive.stand.2R2s, 2.2 kW, single-phase power supply 220 V, three-phase output
Price excl. tax:
€270.00
Price inc. tax:
€324.00
-
Code:s069004
The E.NEXT e.f-drive.stand.2R2s frequency converter with a power of 2.2 kW is a compact and high-performance device for speed control of three-phase asynchronous electric motors with a single-phase power supply of 220 V. The converter provides a three-phase output voltage of up to 220 V and supports scalar (V/F) and sensorless vector control.
The model has a two-line digital LED display, which allows simultaneous monitoring of two selected operating parameters. In addition to the standard functions for controlling electric motors, the converter offers specialized capabilities for controlling pumping systems - a built-in PID regulator, minimum and maximum pressure control, a function for filling an empty pipeline and the ability to turn on an additional pump.

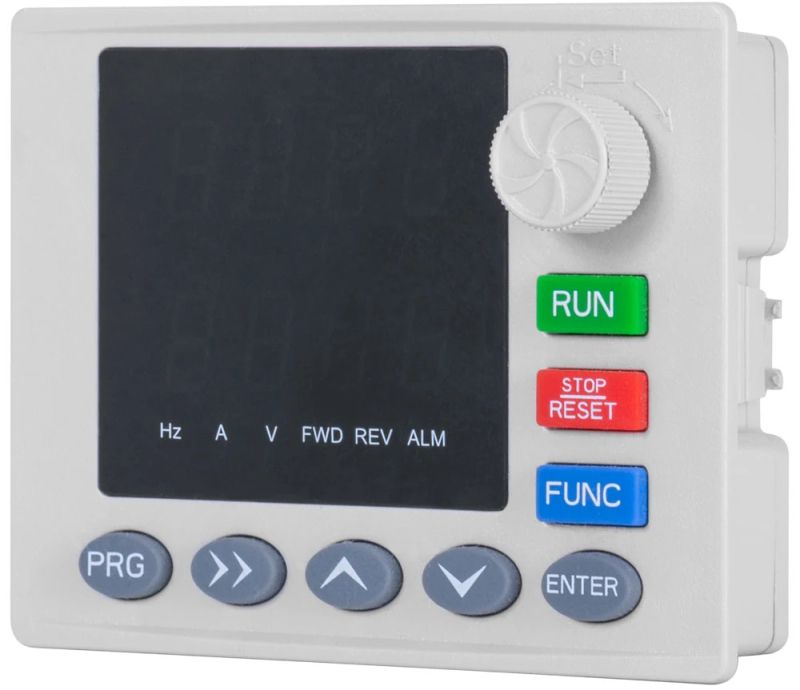

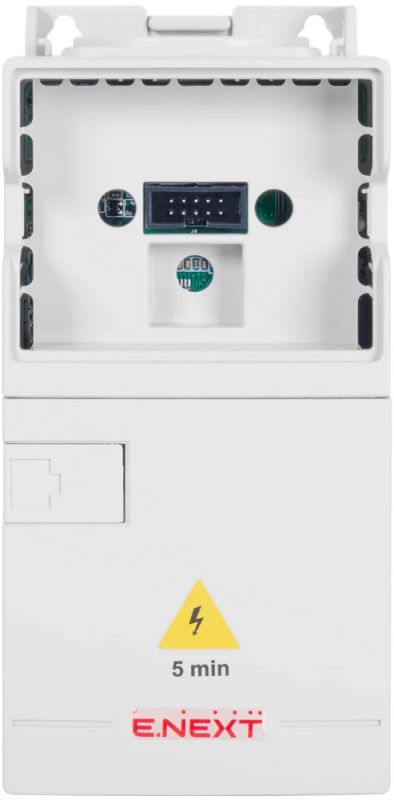

The device is equipped with programmable digital and analog inputs and outputs, a built-in brake module, an RS485 communication interface with Modbus RTU protocol and a removable programming panel. The protective lacquer coating of the electronic boards contributes to higher durability and longer service life.
The model has a two-line digital LED display, which allows simultaneous monitoring of two selected operating parameters. In addition to the standard functions for controlling electric motors, the converter offers specialized capabilities for controlling pumping systems - a built-in PID regulator, minimum and maximum pressure control, a function for filling an empty pipeline and the ability to turn on an additional pump.
The device is equipped with programmable digital and analog inputs and outputs, a built-in brake module, an RS485 communication interface with Modbus RTU protocol and a removable programming panel. The protective lacquer coating of the electronic boards contributes to higher durability and longer service life.
Estimated Shipping
outside Varna starts at
€8.62
to Varna starts at
€8.62
to Varna starts at
€3.62
outside Varna starts at
€3.77
Quick Buy
Just 4 fields to fill in
Technical characteristics
| Parameter | Value |
|---|---|
| Manufacturer | E.NEXT |
| Series | ef-drive.stand |
| Model | ef-drive.stand.2R2s |
| Item code | s069004 |
| Rated power | 2.2kW |
| Supply voltage | 1 × 220V AC |
| Output voltage | 3 × 0–220 V AC |
| Voltage tolerance | −15% to +10% |
| Rated input current | 23 A |
| Rated output current | 10A |
| Control modes | Scalar (V/F); sensorless vector |
| Digital inputs | 5 |
| Analog inputs | 1 (0–10V / 0–20mA) |
| Open collector output | 1 |
| Relay outputs | 1 |
| Analog outputs | 1 (0–10V / 0–20mA) |
| Carrier frequency | 2–16 kHz |
| Acceleration and deceleration time | 0–999 seconds |
| Overloading capacity | 150% for 60 s; 180% for 2 s; 200% for 0.5 s |
| Command sources | Keyboard, external terminal, digital communication |
| Brake module | Built-in |
| Communication interface | RS485, Modbus RTU |
| Programming panel | Removable, included in the kit |
| Cooling | Forced |
| Degree of protection | IP20 |
| Compliance with standards | DSTU EN 61800-3, DSTU EN 61800-5-1 |
| Country of origin | China |
| Warranty | 12 months |
