Hygrostat for electrical panels E.NEXT e.climat.temp.pro.h, 40–90% RH, 230 V AC, 5 A, DIN rail
Price excl. tax:
€26.75
Price inc. tax:
€32.10
-
Code:s0103004

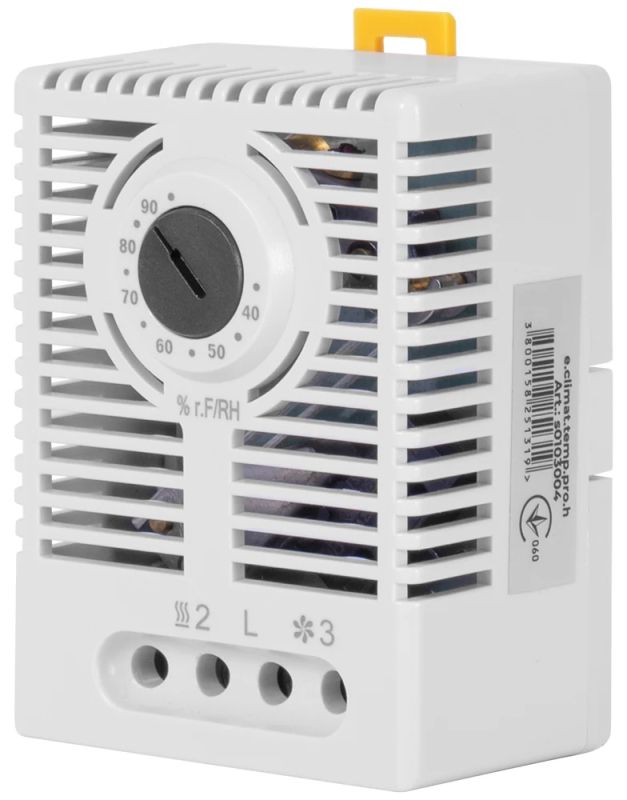

The E.NEXT e.climat.temp.pro.h hygrostat is designed for automatic control of relative humidity in electrical panels and control cabinets. The device allows humidity regulation by controlling connected equipment, such as heaters or fans, in order to limit condensation and protect electrical components.
The hygrostat has an adjustable humidity threshold from 40 to 90% RH and a 1 C/O changeover contact with a rated current of 5 A. It is powered by 230 V AC and is designed for DIN rail mounting.
The compact dimensions facilitate installation in electrical distribution panels, automation cabinets and industrial systems where it is necessary to maintain appropriate humidity conditions.
The hygrostat has an adjustable humidity threshold from 40 to 90% RH and a 1 C/O changeover contact with a rated current of 5 A. It is powered by 230 V AC and is designed for DIN rail mounting.
The compact dimensions facilitate installation in electrical distribution panels, automation cabinets and industrial systems where it is necessary to maintain appropriate humidity conditions.
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€3.62
outside Varna starts at
€3.77
Quick Buy
Just 4 fields to fill in
Technical characteristics
| Parameter | Value |
|---|---|
| Manufacturer | E.NEXT |
| Device type | Hygrostat for electrical panels |
| Model | e.climat.temp.pro.h |
| Item code | s0103004 |
| Relative humidity setting range | 40–90% RH |
| Rated operating voltage | 230V AC |
| Nominal frequency | 50Hz |
| Rated current | 5 A |
| Contact type | 1 C/O (changeover contact) |
| Operating temperature | 0 to +60 °C |
| Degree of protection | IP20 |
| Maximum cross-section of the connected wires | 1.5 mm²; up to 2.5 mm² for solid conductor |
| Wear resistance | Minimum 50,000 on/off cycles |
| Installation | On DIN rail |
| Dimensions (H × W × D) | 60 × 33 × 43 mm |
| Weight | 0.04 kg |
| Maximum altitude | 2000 m |
| Compliance with standards | DSTU EN 60730-1, DSTU EN 60730-2-9, DSTU EN 60730-2-13 |
| Country of origin | China |
| Warranty | 12 months |
