Key switch e.switch.key.01, 3 pin, 6A/250V AC, ON-OFF, with red backlight E.NEXT
Price excl. tax:
€1.19
2.33лв.
Price inc. tax:
€1.43
2.80лв.
-
Code:s2040001
The e.switch.key.01 key switch is designed for switching electrical circuits with alternating current, frequency 50 Hz and voltage up to 250 V AC, with active and/or inductive load. The model has 3 pins, 1NO contact, ON-OFF function with fixation and red backlight. The rated current is 6 A at 250 V AC.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Item: s2040001
Model: e.switch.key.01
Product type: Key switch

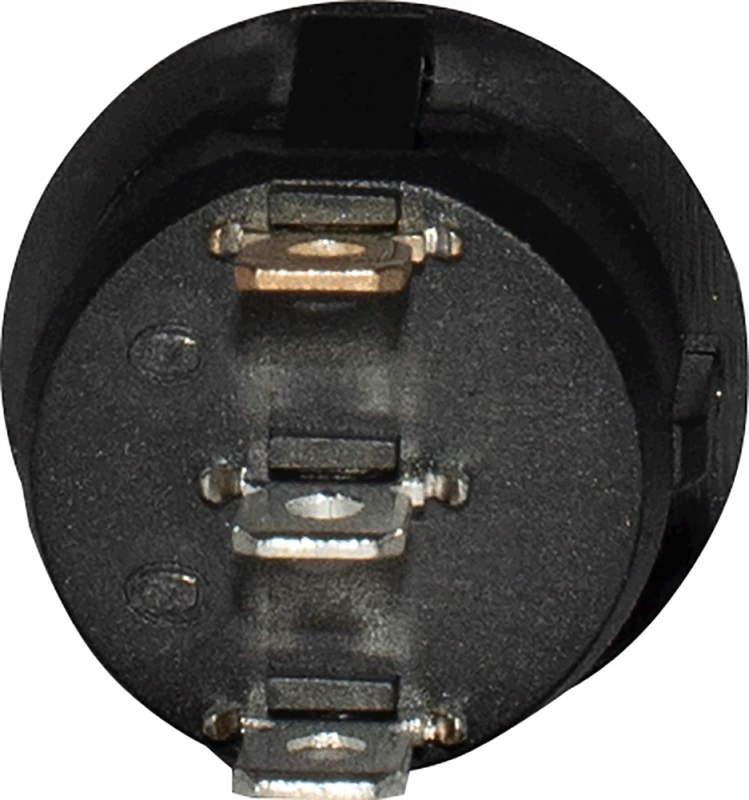

Number of pins: 3
Number of contact groups: 1 × 3 contacts
Contact type: 1NO
Commutation: I-0
Operation algorithm: ON-OFF with fixation
Number of keys: 1
Backlight: Yes
Color: Red
Rated current (In): 6 A at 250 V AC
Rated voltage: 250 V AC
Current type: AC
Nominal frequency: 50 Hz

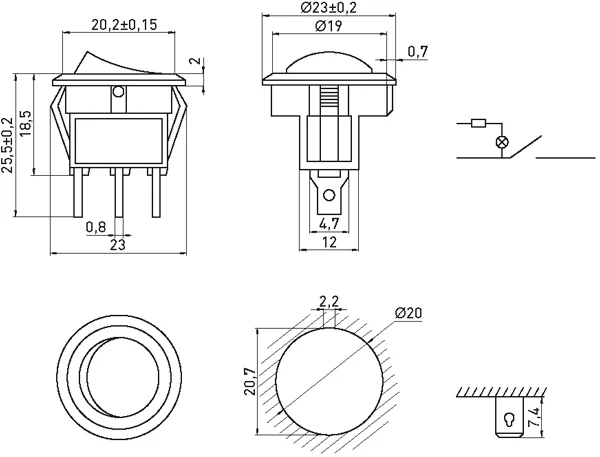

Mounting hole size: 20 mm
Dielectric strength: 1500 V AC / 1 min
Contact resistance: ≤35 mΩ
Operating temperature: –25…+70 °C
Mechanical/electrical durability: ≥100,000 / 10,000 cycles
Compliance with standards: DSTU EN 60947-1, DSTU EN 60947-5-1
Warranty: 12 months
