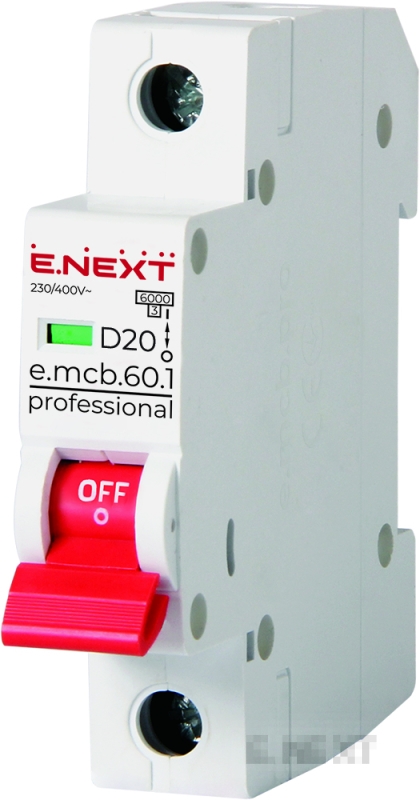

Modular circuit breaker 1P 20A D 6kA E.NEXT
-
Code:p0710024
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€3.40
outside Varna starts at
€3.54
Quick Buy
Technical characteristics
Item: p0710024
Series: e.mcb.pro.60
Product type: modular circuit breaker
Number of poles: 1P
Rated current In: 20A
Feature: D
Rated operating voltage Ue: AC 230/400V
Nominal DC voltage per pole: 48V
Nominal frequency: 50 Hz
Breaking capacity Icu: 6kA
Current limitation class: 3
Impulse withstand voltage Uimp: 6kV
Insulation voltage Ui: 500V
Application category: AC-22B
Current type: AC
Degree of protection: IP20
Pollution level: 2
Climate performance: UHL4
Connection to FORK busbar: top and bottom
Maximum conductor cross-section: 25 mm²
Terminal tightening torque: 3 Nm
Operating temperature: -30…+60°C
Mounting: on DIN rail 35 mm
Working position: vertical, horizontal, with a deviation of up to 5°
Mechanical/electrical durability: 20,000 / 10,000 cycles
Altitude above sea level: up to 2000 m
Weight: up to 100 g
Compliance with standards: DSTU EN 60898-1, DSTU EN 60947-2
Disposal method: handover to a specialized company
Warranty: 12 months
