Home Circuit breakers and residual current protection Circuit breakers Circuit breakers of the E.STAND series Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT

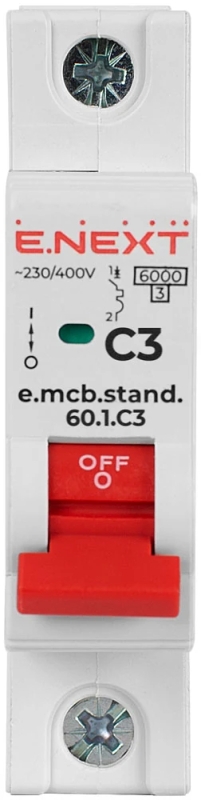

Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT

Price excl. tax: €2.53
Price inc. tax: €3.04
  • Code:
    s002103
The E.NEXT e.mcb.stand circuit breaker is designed to protect electrical circuits from overload and short circuit. It is suitable for use in residential, commercial and industrial electrical installations. The C characteristic makes it suitable for circuits with moderate inrush currents, such as lighting, sockets and small electrical appliances. The circuit breaker provides reliable protection, easy mounting on a DIN rail and a long service life.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    3 A
  • Number of poles:
    1P
  • Shutdown curve:
    C
  • Breaking capacity [kA]:
    6 kA

We have 60 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Circuit breaker 1P 3A C 6kA E.NEXT
Circuit breaker 1P 3A C 6kA E.NEXT Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT Circuit breaker 1P 3 A C 6kA e.mcb.stand, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: s002103
Product type: circuit breaker
Number of poles: 1 (1P)
Rated current: 3 A
Feature: C
Breaking capacity: 6 kA
Rated voltage: 230/400 V AC
Nominal DC voltage: 48 V/pole
Current type: AC
Rated frequency: 50 Hz
Current limitation class: 3
Impulse voltage: 4 kV
Insulation voltage: 690 V
Application category: AC-22B
Degree of protection (IP): IP20
Operating temperature range: -40…+70 °C
Max. conductor cross-section: 25 mm²
Tightening torque: 2.5 Nm
Mounting: DIN rail 35 mm
Operating position: vertical/horizontal (±5°)
Mechanical wear resistance: ≥20,000 cycles
Electrical durability: ≥10,000 cycles
Maximum altitude: 2000 m
Compliance with standards: DSTU EN 60898-1, DSTU EN 60947-2
Disposal method: handover to a specialized company
Weight: ≤100 g
Warranty: 60 months
