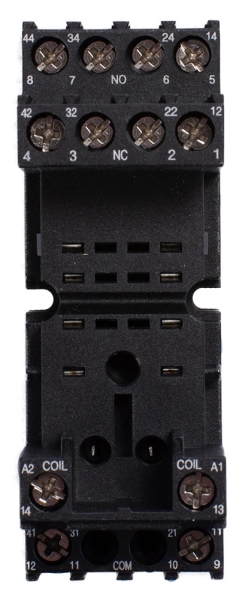

Socket for intermediate relay 5A 4CO DIN rail E.NEXT e.relay.pro
Price excl. tax:
€3.90
Price inc. tax:
€4.68
-
Code:p091012

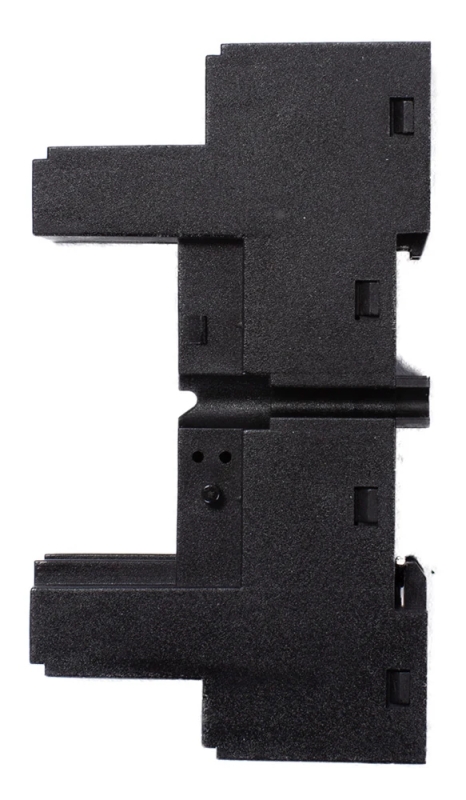

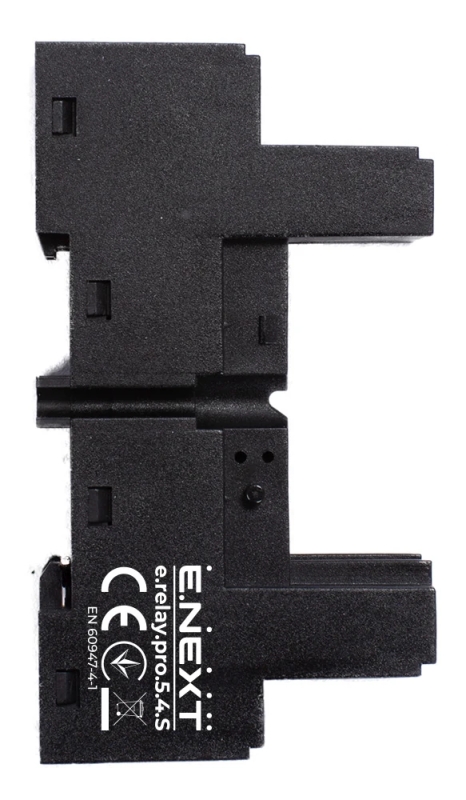

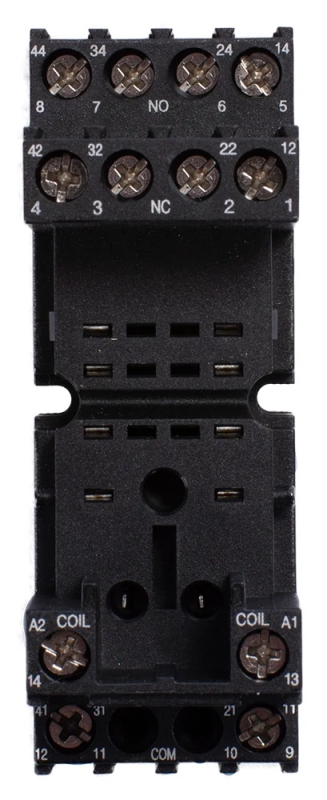

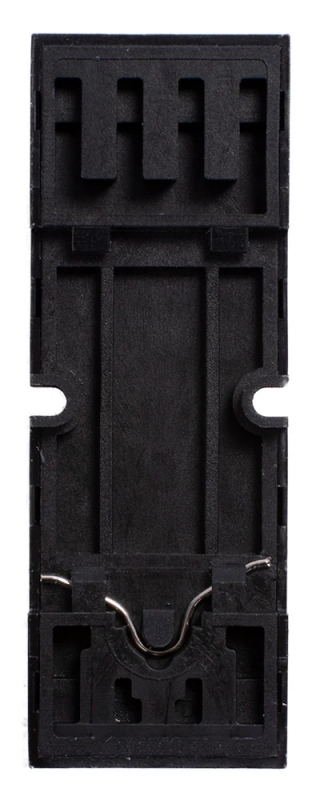

The E.NEXT e.relay.pro modular socket is designed for mounting and connecting intermediate relays with 4 contact groups (4CO) and a rated current of up to 5A.
Provides stable mounting on a 35 mm DIN rail and reliable electrical connection in electrical panels, automation systems and control circuits.
The socket allows easy replacement of the relay without disconnecting the wires, which greatly facilitates the service and maintenance of electrical systems.
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€3.40
outside Varna starts at
€3.54
Quick Buy
Just 4 fields to fill in
Technical characteristics
Item: p091012
Number of contact groups: 4
Current type: AC/DC
Maximum conductor cross-section: 0.5 – 2.0 mm²
Tightening torque: 0.8 Nm
Degree of protection: IP20
Insulation voltage: 300 V
Operating temperature: -40…+85 °C
Pollution level: 3
Mounting: DIN rail 35 mm
Working position: arbitrary
Maximum altitude: 1000 m

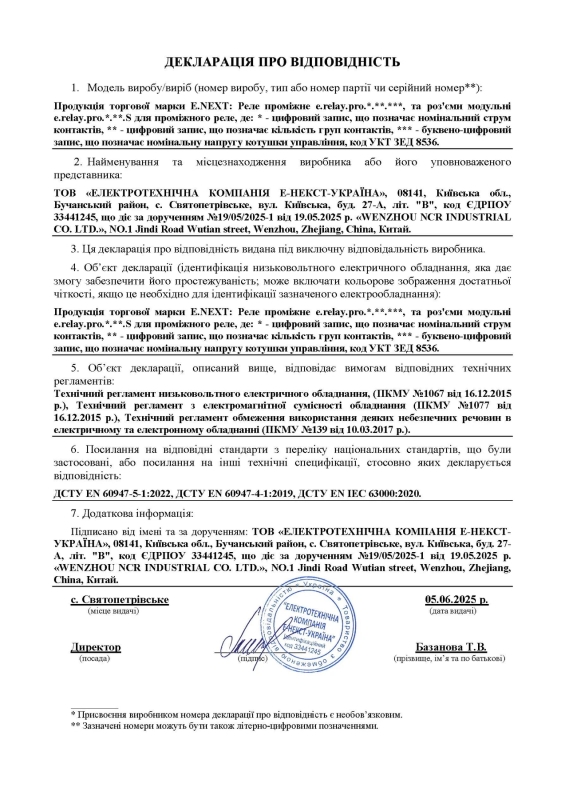

Compliance with standards: DSTU EN 60947-4-1
Disposal method: handover to a specialized company
Warranty: 12 months
