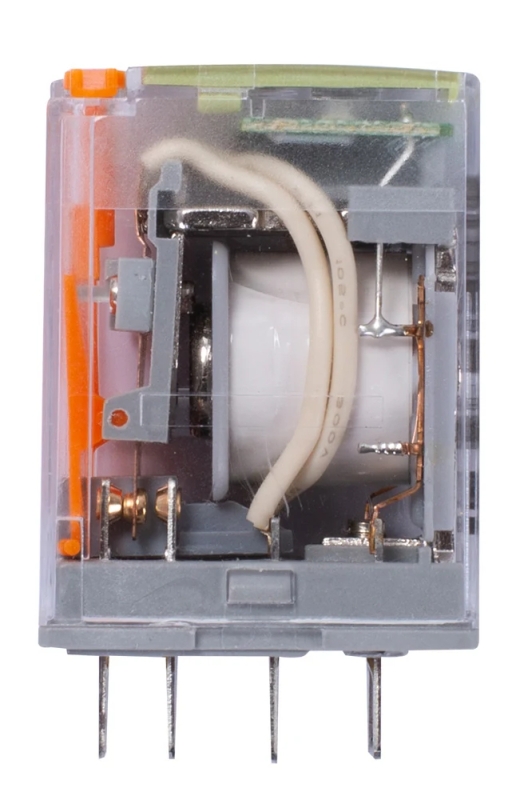

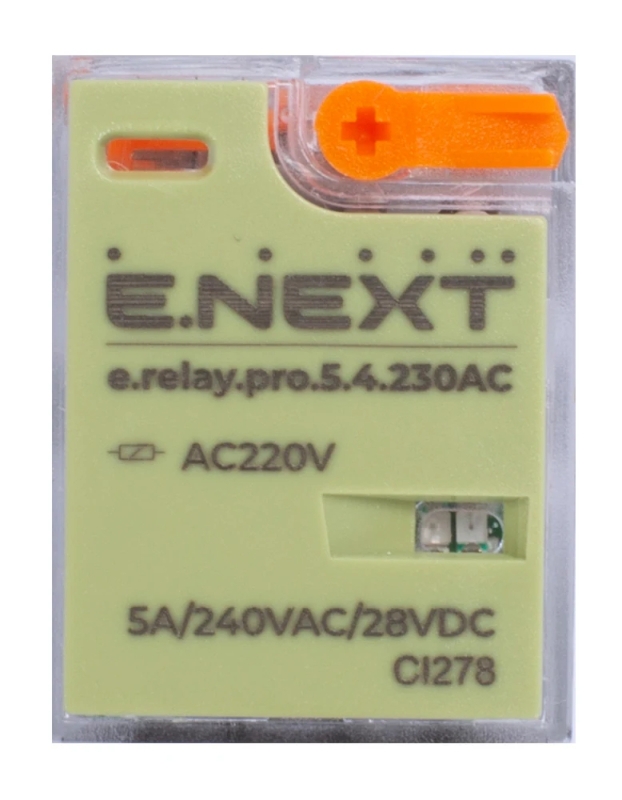

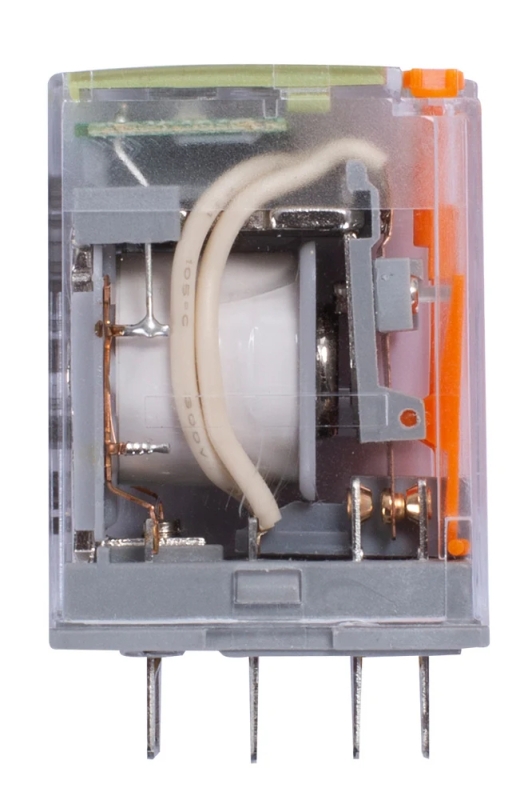

Intermediate relay 5A 230V AC 4CO E.NEXT e.relay.pro

Technical characteristics

Item: p091007
Rated current: 5 A
Number of contact groups: 4 (4CO)
Nominal coil voltage: 230 V AC
Current type: AC
On/off time: 25 ms
Coil resistance: 18,021 Ω (±10%)
Pick-up/drop-out voltage: ≥30% of Un
Insulation resistance: ≥100 MΩ
Insulation voltage: 1000 V
Impulse voltage: 1800 V
Coil power: ≤1 W
Protection degree: IP40
Operating temperature: -40…+85 °C
Pollution level: 3
Rated operating voltage: ≤80% of Un (230AC)
Rated motor power (AC-3): 0.145 kW
Mounting: 35 mm DIN rail or mounting plate (via socket)
Working position: arbitrary
Mechanical wear resistance: ≥10,000,000 cycles
Electrical durability: ≥100,000 cycles

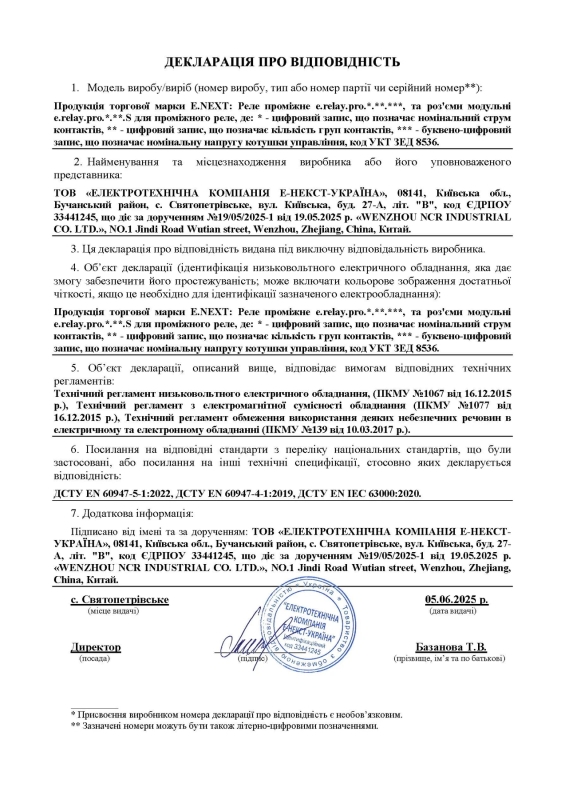

Compliance with standards: DSTU EN 60947-5-1
Disposal method: handover to a specialized company
Maximum altitude: 1000 m
Warranty: 12 months
