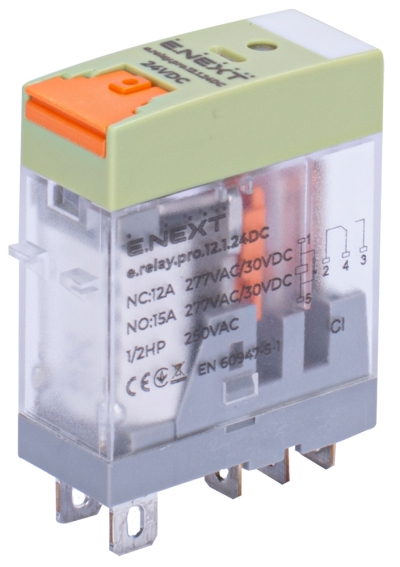

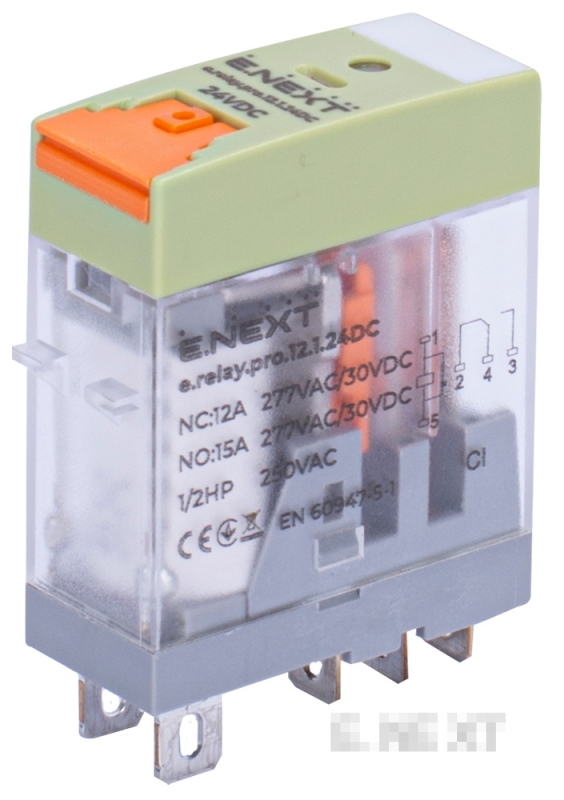

Intermediate relay 12A 24V DC 1NO E.NEXT e.relay.pro

Technical characteristics

Item: p091002
Rated current: 12 A
Number of contact groups: 1 (1NO)
Nominal coil voltage: 24 V DC
Current type: DC
On/off time: 20 / 10 ms
Coil resistance: 1087 Ω (±10%)
Pick-up/drop-out voltage: ≥10% of Un
Insulation resistance: ≥100 MΩ
Insulation voltage: 1000 V
Impulse voltage: 5000 V
Coil power: ≤0.53 W
Protection degree: IP40
Operating temperature: -40…+85 °C
Pollution level: 3
Rated operating voltage: ≤75% of Un (24DC)
Rated motor power (AC-3): 0.375 kW
Mounting: 35 mm DIN rail or mounting plate (via socket)
Working position: arbitrary
Mechanical wear resistance: ≥10,000,000 cycles
Electrical durability: ≥100,000 cycles
Compliance with standards: DSTU EN 60947-5-1
Disposal method: handover to a specialized company
Maximum altitude: 1000 m
Warranty: 12 months
