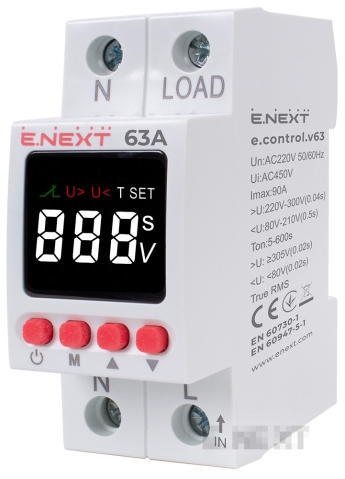

Voltage control relay single-phase 63A with indication E.Control.V63, E.NEXT
-
Code:p0690033
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€3.40
outside Varna starts at
€3.54
Quick Buy
Technical characteristics
Item: p0690033
Operating voltage range: 50–400 V
L (length): 65 mm
H (height): 90 mm
W (width): 36 mm
Voltage measurement range: 50–400 V
Mechanical wear resistance: ≥1,000,000 cycles
Operating temperature range: −5…+40 °C
Degree of protection: IP20
Terminal tightening torque: 2.5 Nm
Insulation voltage Ui: 400 V
Rated operating voltage Ue: AC 220 V
Current type: AC
Rated frequency: 50/60 Hz
Environmental pollution level: 3
Maximum cross-section of the connected wires: 16 mm²
Compliance with standards: DSTU EN 60947-5-1, DSTU EN 60730-1
Disposal method: handover to a specialized company
Rated current In: 63 A
Wear resistance (mechanical/electrical): 1,000,000 / 10,000 cycles
Hysteresis: 2 %
Contact: 1 NO
Mounting: on DIN rail 35 mm
Upper voltage limit setting range: 220–300 V
Maximum installation altitude: up to 2000 m above sea level
Lower voltage limit setting range: 80–210 V
Power-on delay time setting range: 5–600 s
Features: True RMS measurement method; Measurement accuracy ≤1% (over the entire range)
Working position: arbitrary
Low voltage response time: ≥80 V – 0.5 s; <80 V – 0.02 s
Warranty: 12 months
