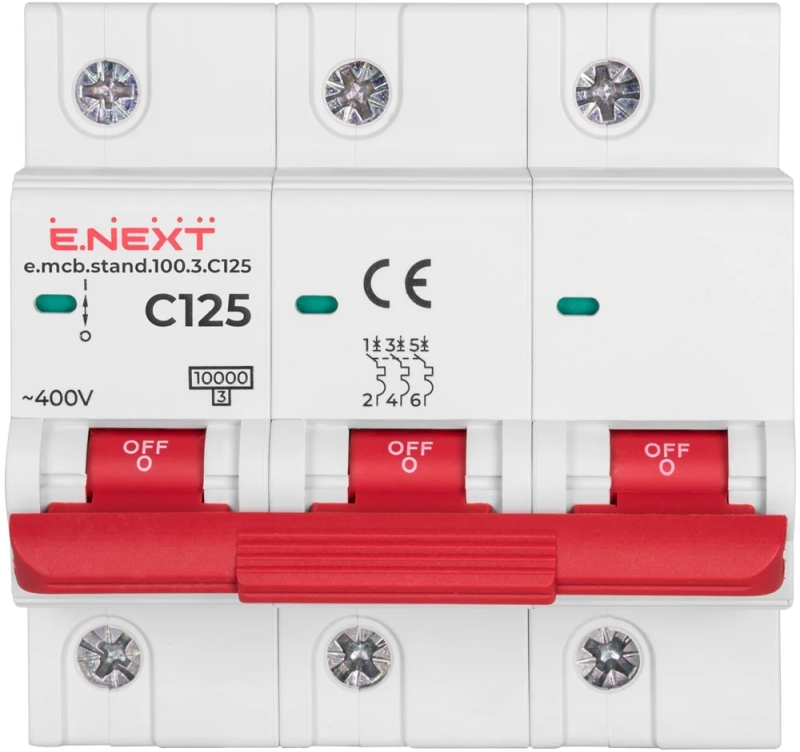

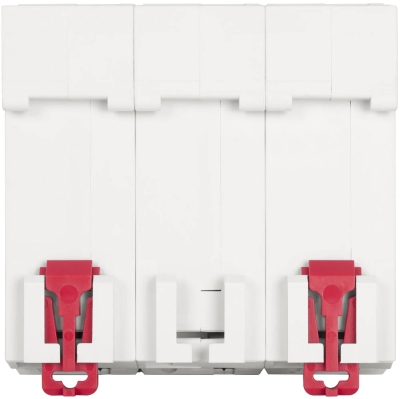

Modular circuit breaker e.MCB STAND 100, 3P, C125, 125 A, 10 kA, E.NEXT

Price excl. tax: €24.54
Price inc. tax: €29.45
  • Code:
    s002215
The modular circuit breaker e.MCB STAND 100.3.C125 is designed to protect low-voltage electrical networks from overload and short-circuit currents, as well as for partial operational switching of electrical circuits. The device is three-pole (3P), with time-delay characteristic C and a rated current of 125 A. The rated breaking capacity is 10 kA, which makes it suitable for panels and installations requiring reliable protection of three-phase lines. The circuit breaker is mounted on a 35 mm DIN rail and complies with the applicable standards for low-voltage equipment.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    125 A
  • Number of poles:
    3P
  • Shutdown curve:
    C
  • Breaking capacity [kA]:
    10 kA

We have 35 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Modular circuit breaker e.MCB STAND 100 3P C125 125A 10kA E.NEXT
Modular circuit breaker e.MCB STAND 100 3P C125 125A 10kA E.NEXT Modular circuit breaker e.MCB STAND 100, 3P, C125, 125 A, 10 kA, E.NEXT Modular circuit breaker e.MCB STAND 100, 3P, C125, 125 A, 10 kA, E.NEXT Modular circuit breaker e.MCB STAND 100, 3P, C125, 125 A, 10 kA, E.NEXT Modular circuit breaker e.MCB STAND 100, 3P, C125, 125 A, 10 kA, E.NEXT Modular circuit breaker e.MCB STAND 100, 3P, C125, 125 A, 10 kA, E.NEXT Modular circuit breaker e.MCB STAND 100, 3P, C125, 125 A, 10 kA, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: s002215
Series: e.MCB STAND 100
Number of poles: 3
Temporal characteristic: C
Rated current In, A: 125
Nominal operating frequency, Hz: 50
Current type: AC
Rated operating voltage Ue, V: AC 230/400
Nominal voltage DC, V/pole: 48
Rated breaking capacity Icu, kA: 10
Current limitation class: 3
Impulse withstand voltage Uimp, kV: 4
Insulation voltage Ui, V: 690
Application category: AC-22 B
Degree of protection, IP: IP20
Operating temperature range, °C: -40...+70
Climate performance: UHL3, UHL4
Environmental pollution level: 2
Max. cross-section of connected wires, mm²: 50
Terminal tightening torque, Nm: 3.5
Height above sea level, m: 2000
Mounting: on DIN rail 35 mm
Operating position: vertical, horizontal, with a deviation of no more than 5°
Connection to FORK type busbar: no
Wear resistance mech./el., cycles (ON/OFF), not less: 20000/10000
Mass, g (no more): 450
Compliance with standards: DSTU EN 60898-1, DSTU EN 60947-2
Disposal method: handover to a specialized company
Warranty, months: 36
