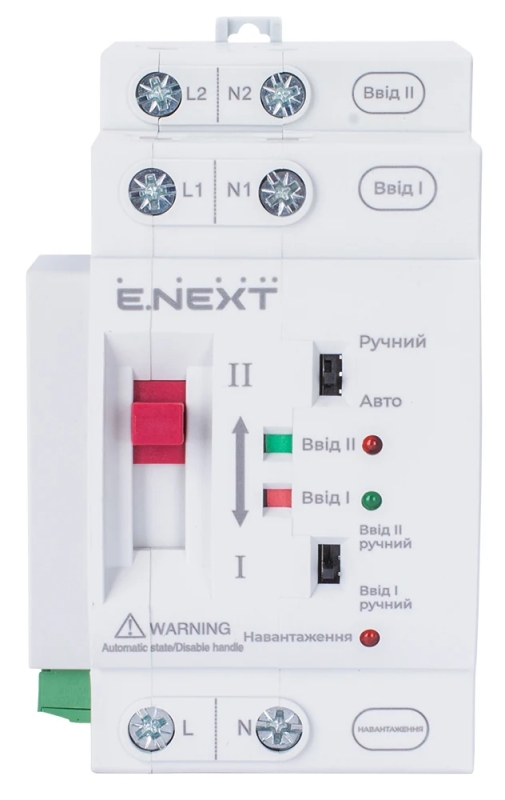

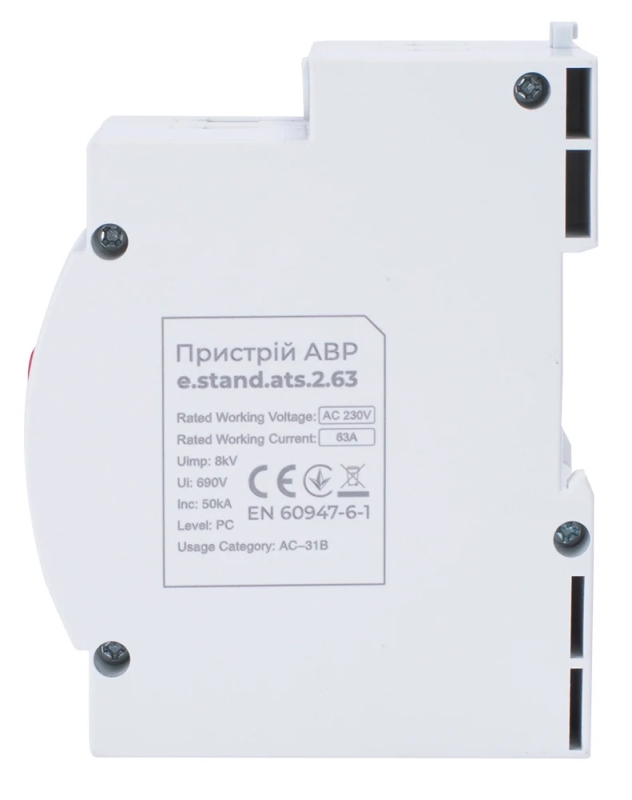

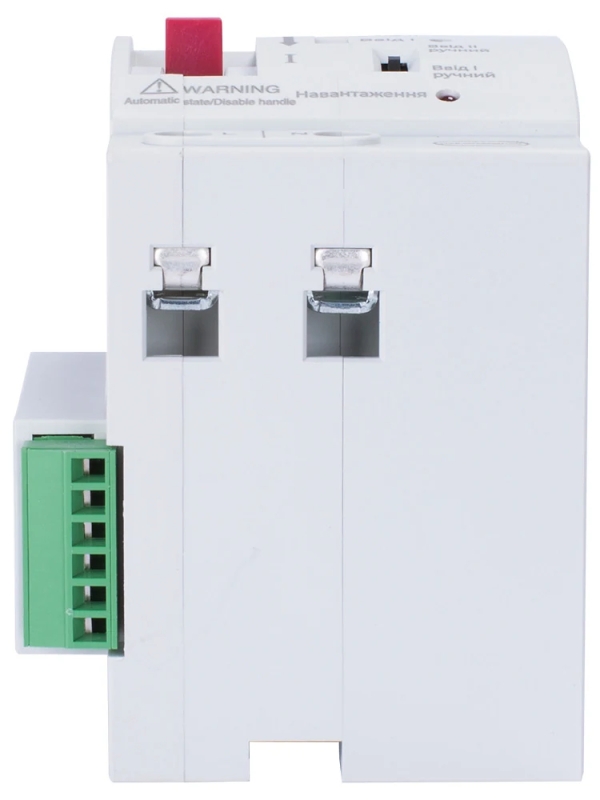

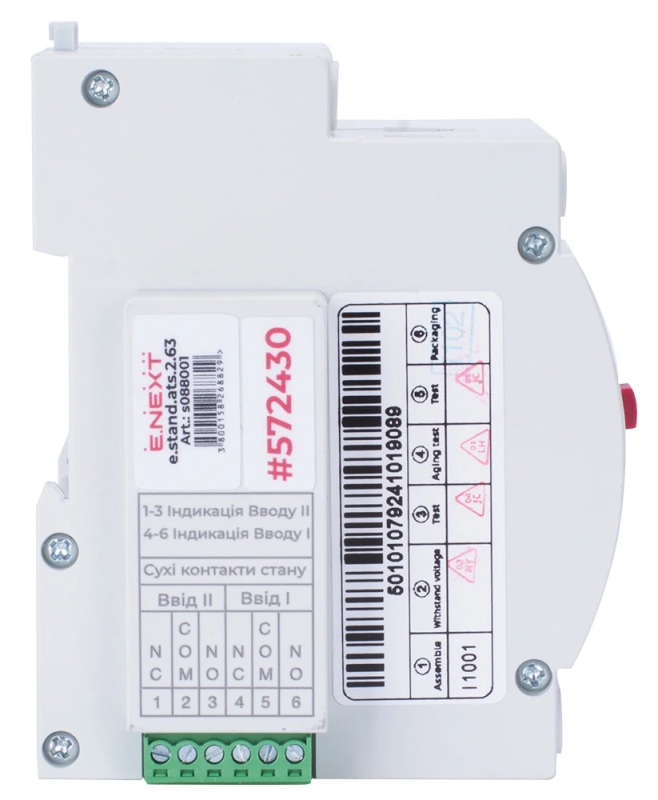

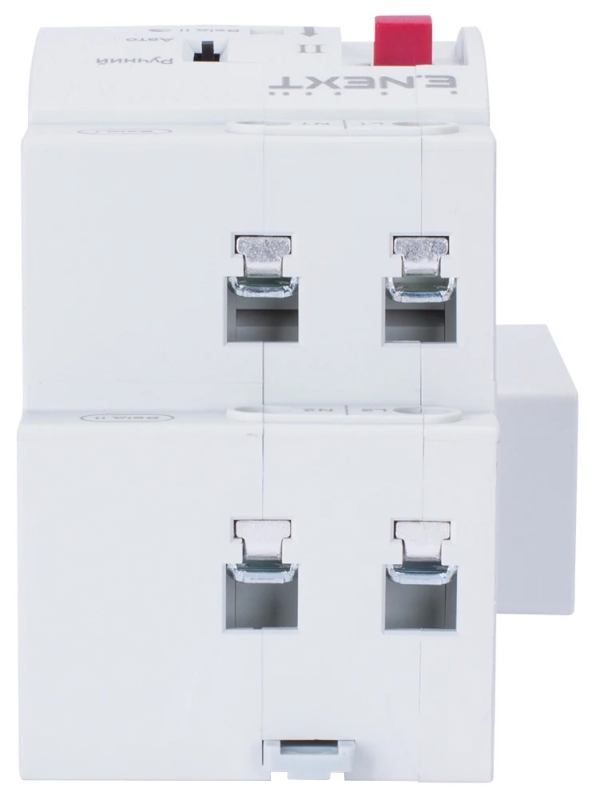

Automatic transfer switch (ATS) E.STAND ATS 2.63, 2P, 63 A, E.NEXT
Price excl. tax:
€56.40
Price inc. tax:
€67.68
-
Code:s088001
The E.STAND ATS 2.63 automatic transfer switch (ATS) is designed for automatic and manual switching between the main and backup power supply in low-voltage electrical installations with a rated current of up to 63 A. It provides reliable power supply management, reducing the risk of interruption of critical consumers in the event of a main power failure. The design is modular with 35 mm DIN rail mounting, which facilitates installation in panels and distribution systems.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: s088001
Type: Automatic Transfer Switch (ATS)
Number of poles: 2
Rated current In: 63 A
Rated operating voltage Un: AC 230 V
Voltage type: alternating current (AC)
Rated frequency: 50/60 Hz
Switching time: ≤ 60 ms
Operating voltage range: 187–253 V AC
Rated breaking capacity Icn: 50 kA
Impulse withstand voltage Uimp: 8 kV
Insulation voltage Ui: 690 V
Control: automatic and manual
Degree of protection (IP): IP30
Application category: AC-31B
Operating temperature range: –5…+40 °C

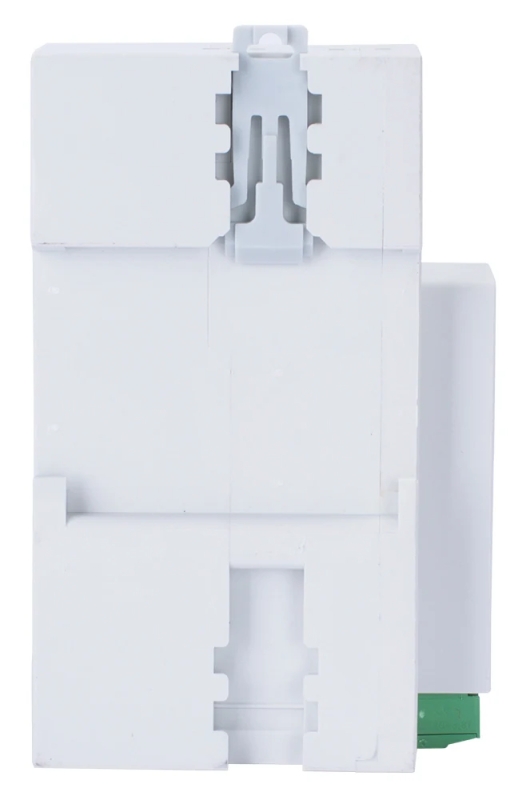

Mounting: on DIN rail 35 mm

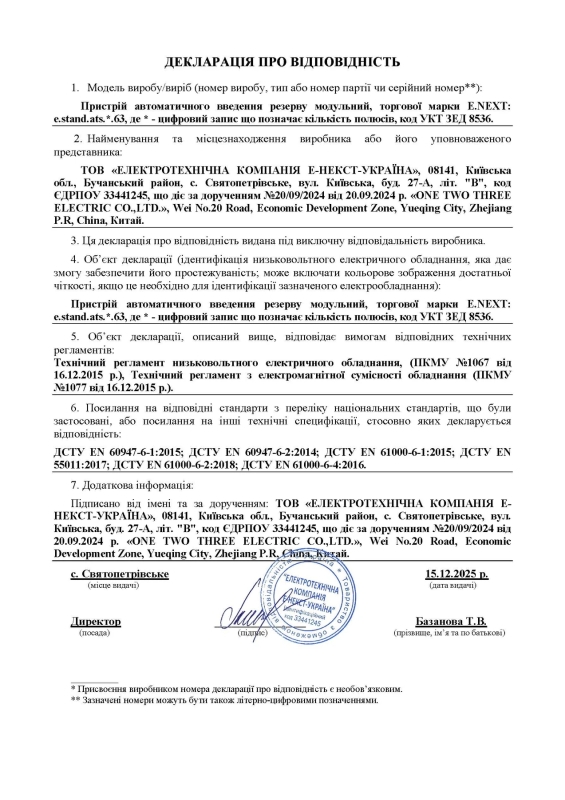

Compliance with standards: DSTU EN 60947-6-1
Disposal method: handover to a specialized company
Warranty: 12 months
