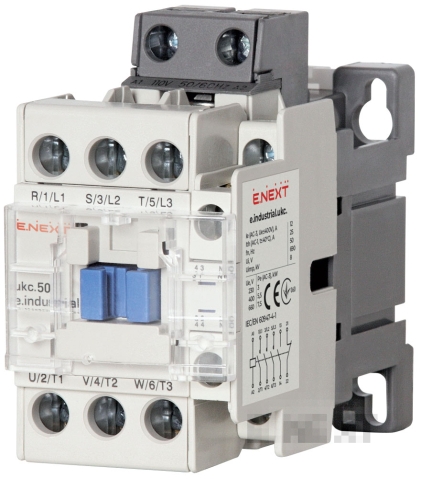

Contactor E.INDUSTRIAL UKC 50 110 50 A, 110 V, 3P, 1NO+1NC
Price excl. tax:
€0.00
0.00лв.
Price inc. tax:
€0.00
0.00лв.
-
Code:i.0090033
The E.INDUSTRIAL UKC 50 110 contactor from E.NEXT is designed for switching and controlling single-phase and three-phase electrical circuits, including starting and stopping motors, in industrial and domestic installations. The device has three main poles (3P) and one additional pair of contacts 1NO+1NC, which allows for extended control. With a 110 V control coil and a rated operating current of up to 50 A (AC-3), this contactor is suitable for use in switching circuits, motor power supply, lighting, etc. Installation is easy on a standard 35 mm DIN rail in electrical panels.
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€5.36
outside Varna starts at
€5.58
Quick Buy
Just 4 fields to fill in
Technical characteristics
Item: i.0090033
Number of poles: 3
Impulse withstand voltage Uimp: 8 kV
Application category: AC-3
Type and number of additional contacts: 1NO + 1NC
Maximum short-term overload (t≤1 s): 18×In
Insulation voltage Ui: 690 V
Rated operating voltage Ue: AC 400/660 V
Current type: AC
Control coil voltage Uc: 110 V
Nominal frequency: 50 Hz
Rated power of the controlled motor (AC-3): 22 kW
Rated operating current In (AC-3): 50 A
Operating temperature range: –25…+40 °C
Mounting: DIN rail 35 mm
Working position: arbitrary
Degree of protection: IP20
Compliance with standards: DSTU EN 60947-1; DSTU EN 60947-4-1
Warranty: 12 months
