Home Command and signal devices Buttons and switches Switch E.MB.BJ25 2 positions, 1NO+1NC, with extended handle

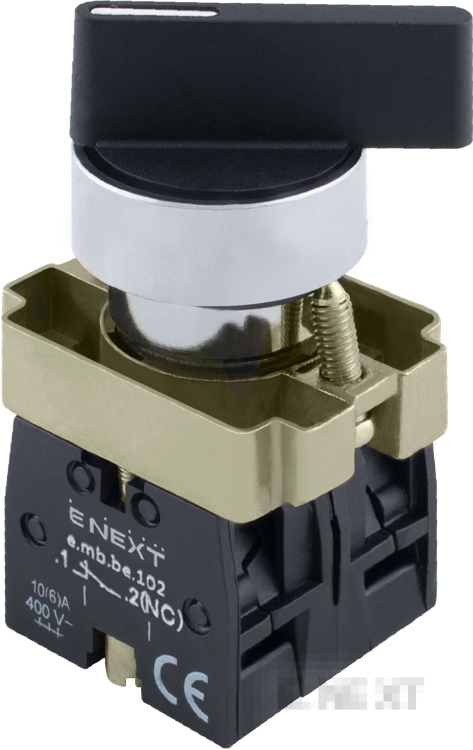

Switch E.MB.BJ25 2 positions, 1NO+1NC, with extended handle

Price excl. tax: €2.56 5.01лв.
Price inc. tax: €3.07 6.00лв.
  • Code:
    p0810135
The E.MB.BJ25 switch from E.NEXT is designed to control electrical circuits through two fixed modes – “1” and “0”. It has one normally open (1NO) and one normally closed (1NC) contact group and an extended handle that provides convenient control and a visible position signal. This panel switch is used to control contactors, relays and automatic electrical circuits in domestic, industrial and control panels. Compact and reliable, it is suitable for installation in standard 22 mm holes.

We have 20 in stock

- +
Brand:

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
New Product
Switch E.MB.BJ25 2 positions 1NO+1NC E.NEXT
Switch E.MB.BJ25 2 positions 1NO+1NC E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Item: p0810135
Type: panel switch with fixed positions
Series: E.MB.BJ
Number of positions: 2 (1-0)
Contacts: 1NO + 1NC
Handle: extended
Mounting: panel (Ø22 mm)
Housing material: thermoplastic plastic
Rated operating current In: 10 A (AC-15, 220/380 V)
Rated operating voltage: 220/380 V AC *(typical for such switches)* :contentReference[oaicite:0]{index=0}
Protection level: IP40 :contentReference[oaicite:1]{index=1}
Color: black :contentReference[oaicite:2]{index=2}
Nominal frequency: 50/60 Hz :contentReference[oaicite:3]{index=3}
Wear resistance (mech./el.): ≥ 50×10⁴ / 250×10⁴ cycles :contentReference[oaicite:4]{index=4}
Compliance with standards: DSTU EN 60947-1, DSTU EN 60947-5-1 :contentReference[oaicite:5]{index=5}
Warranty: 12 months
