Switch E.MB.BJ25 2 positions, 1NO+1NC, with extended handle, E.NEXT
Price excl. tax:
€2.56
Price inc. tax:
€3.07
-
Code:p0810135
The E.MB.BJ25 switch from E.NEXT is designed to control electrical circuits through two fixed modes – “1” and “0”. It has one normally open (1NO) and one normally closed (1NC) contact group and an extended handle that provides convenient control and a visible position signal. This panel switch is used to control contactors, relays and automatic electrical circuits in domestic, industrial and control panels. Compact and reliable, it is suitable for installation in standard 22 mm holes.
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: p0810135
Type: panel switch with fixed positions
Series: E.MB.BJ
Number of positions: 2 (1-0)
Contacts: 1NO + 1NC
Handle: extended

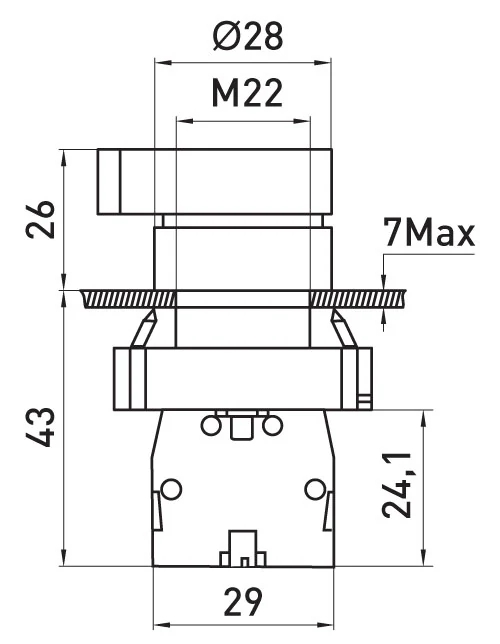

Mounting: panel (Ø22 mm)
Housing material: thermoplastic plastic
Rated operating current In: 10 A (AC-15, 220/380 V)
Rated operating voltage: 220/380 V AC *(typical for such switches)*
Degree of protection (IP): IP40
Color: black
Rated frequency: 50/60 Hz
Wear resistance (mechanical/electrical): ≥ 50×10⁴ / 250×10⁴ cycles
Compliance with standards: DSTU EN 60947-1, DSTU EN 60947-5-1
Warranty: 12 months
