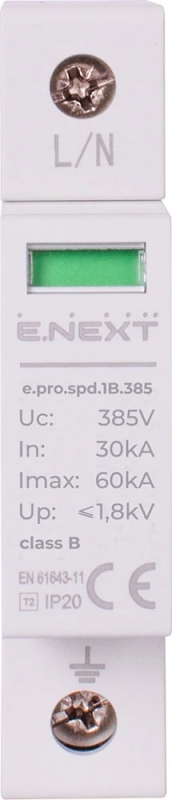

Surge protection device E.PRO.SPD.1B.385 1P (class B), E.NEXT
Price excl. tax:
€11.25
Price inc. tax:
€13.50
-
Code:p076001
The surge protection device e.pro.spd.1B.385 is designed to protect electrical installations and equipment from surges. The design is 1P, with a maximum continuous operating voltage Uc 385 V, a nominal discharge current of 30 kA and a maximum discharge current of 60 kA. It is designed for mounting on a 35 mm DIN rail.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: p076001
Cross-section of connecting wires: 2.5–25 mm²
FORK bus connection: Yes
Number of poles: 1P
Response time: <25 ns
Current type: AC
Operating temperature range: –40…+80 °C
Degree of protection (IP): IP20
Rated frequency: 50 Hz
Maximum continuous operating voltage (Uc): 385 V
Surge protection level (Up): 1.8 kV
Nominal discharge current (8/20 μs) In: 30 kA
Maximum discharge current (8/20 μs) Imax: 60 kA
Protection class: Class I (B)
Mounting: On a 35 mm DIN rail
Compliance with standards: DSTU EN 61643-11
Disposal method: Handover to a specialized company
Warranty: 12 months
