Fuse gPV 10x38 15A 1000V DC for photovoltaic systems E.NEXT
Price excl. tax:
€3.20
6.26лв.
Price inc. tax:
€3.84
7.51лв.
-
Code:i0610107

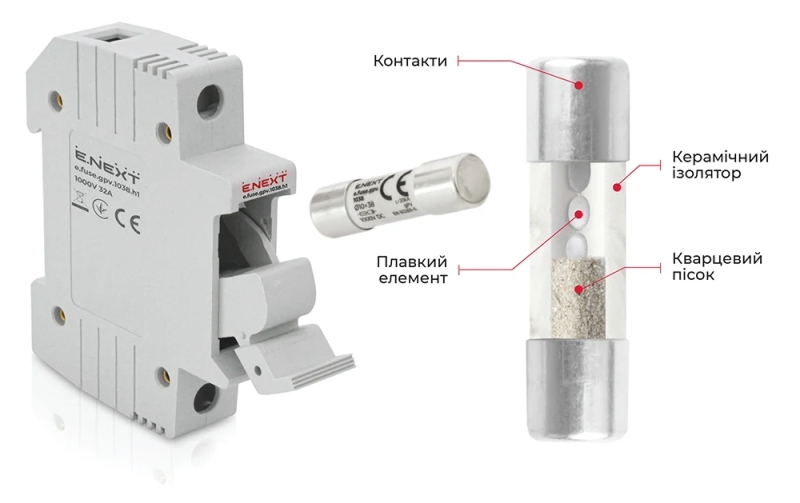

The DC (PV) fuse E.FUSE GPV 10×38 15 A is designed for
protection of direct current (DC) circuits in solar and photovoltaic
installations. With a rated current of 15 A and an operating voltage of up to 1000 VDC,
it provides reliable overload and short-circuit protection.

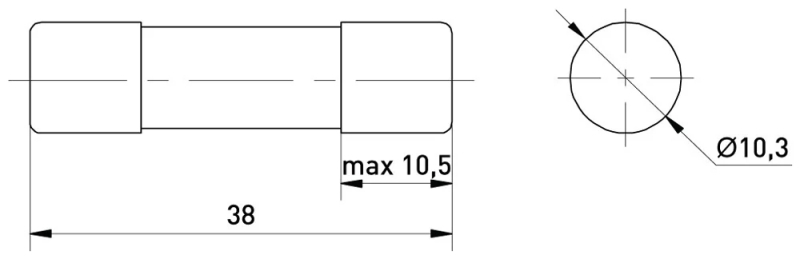

The fuse has a standard size of 10×38 mm and gPV characteristic,
providing appropriate selectivity and protection for DC modules and systems.
It is mounted in a 10×38 holder designed for DC (PV) fuses.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: i0610107
Operating temperature range, °C: –40…+90
Altitude above sea level, m: 2000
Rated operating voltage Ue, V: DC 1000
Current type: DC
Compliance with standards: DSTU EN 60269-6
Disposal method: transfer to a specialized company
Rated breaking capacity Icu, kA: 20
Rated current In, A: 15
Mounting: in holder 10×38
Characteristic: gPV
Type (size): 10×38
Operating position: arbitrary
Warranty, months: 12
