DIN-rail fuse holder E.FUSE GPV 10×38 H1, 1P 32 A, E.NEXT
Price excl. tax:
€4.60
Price inc. tax:
€5.52
-
Code:i0300007

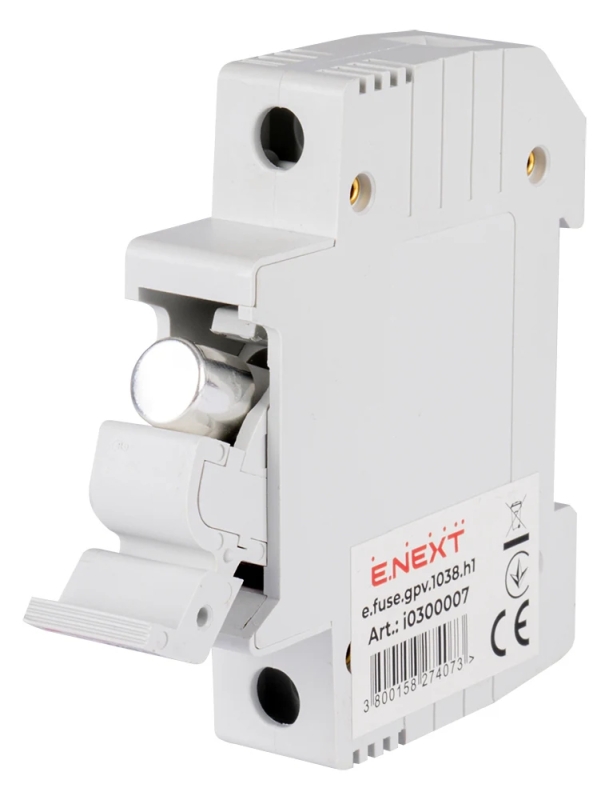

The E.FUSE GPV 10×38 H1 fuse holder is designed for mounting on a standard 35 mm DIN rail and for use with 10×38 mm fuses. It provides reliable fixation and easy installation/removal of the fuse to protect electrical circuits from overload and short circuit. It is suitable for low-voltage installations and electrical panels.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: i0300007
Number of poles: 1
Operating temperature range, °C: –25…+55
Degree of protection, IP: IP20
Tightening torque of contact terminals, Nm: 3
Height above sea level, m: 2000
Rated operating voltage Ue, V: AC 500
Current type: DC
Nominal frequency, Hz: 50
Maximum cross-section of connected wires, mm²: 25
Disposal method: handover to a specialized company
Rated current In, A: 2–32
Mounting: on a 35 mm DIN-rail
Operating position: arbitrary
Warranty, months: 12
