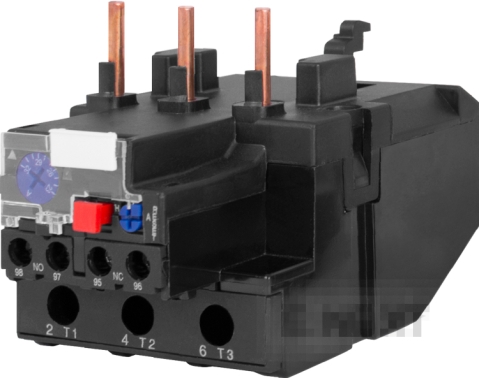

Thermal relay e.pro.ukh.3.40, 30–40 A (for UKC contactors size 3–4)
Price excl. tax:
€17.28
33.80лв.
Price inc. tax:
€20.74
40.56лв.
-
Code:p058019
The thermal relay e.pro.ukh.3.40 is designed to protect electric motors from overload. It allows current adjustment in the range of 30–40 A and is mounted on UKC contactors of size 3–4.
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€5.36
outside Varna starts at
€5.58
Quick Buy
Just 4 fields to fill in
Technical characteristics
Item: p058018
Current setting range, A: 30–40
Contact type: 1NO + 1NC
Impulse withstand voltage Uimp: 6 kV
Insulation voltage Ui: 690 V
Rated operating voltage Ue: AC 400/690 V
Nominal frequency: 50 Hz
Degree of protection: IP20
Relay gauge: 3–4
Maximum conductor cross-section: 4 mm²
Operating temperature range: –25…+40 °C
Mounting: to UKC series contactors
