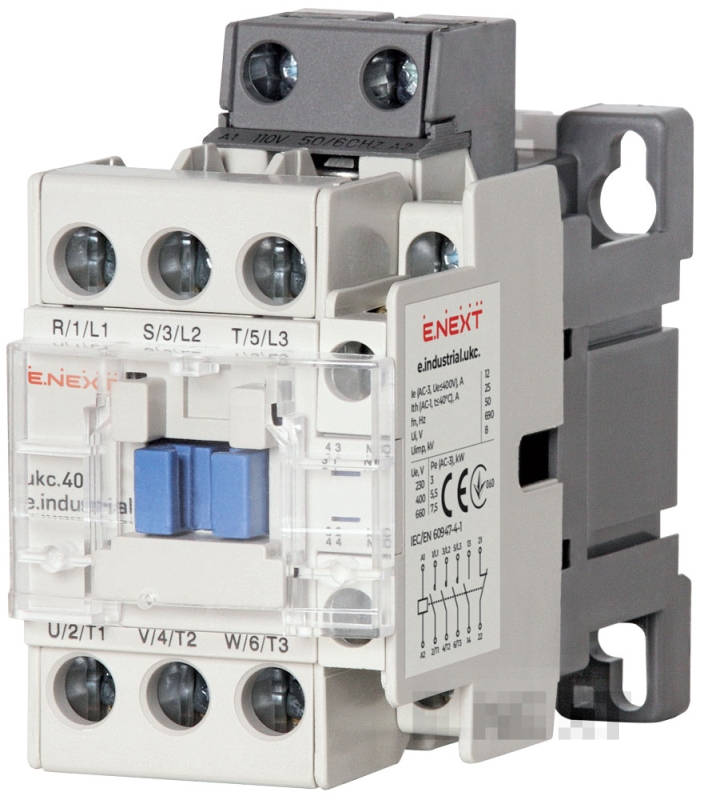

Contactor e.industrial.ukc.40.110, 40A, 110V, 1no+1nc
Price excl. tax:
€16.41
32.10лв.
Price inc. tax:
€19.70
38.53лв.
-
Code:i.0090026
The contactor e.industrial.ukc.40.110, 40A, 110V, 1NO+1NC is intended for use in stationary installations for remote starting, stopping and reversing by direct connection to the network of three-phase asynchronous electric motors with a squirrel-cage rotor, as well as for switching group lighting circuits and other low-inductive loads.
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: i.0090026
Number of poles: 3
Impulse withstand voltage Uimp, kV: 8
Application category: AC-3
Operating temperature range, °C: -25…+40
Protection degree, IP: IP20
Type and number of additional contacts: 1NO+1NC
Maximum short-term overload (t≤1s), A: 18 In
Altitude above sea level, m: 2000
Insulation voltage Ui, V: 690
Rated operating voltage Ue, V: AC 400/660
Current type: AC
Control coil voltage Uc, V: 110
Rated frequency, Hz: 50
Rated power of controlled motor AC-3, kW: 18.5
Environmental pollution degree: 3
Rated operating current In, A (AC-3): 40
Compliance with standards: BDS EN 60947-1, BDS EN 60947-4-1
Disposal method: handover to a specialized company
Wear resistance mech./el., cycles V-I, not less: 8 000 000 / 800 000
Mounting: on DIN-rail 35 mm
Operating position: arbitrary
Warranty, months: 12
