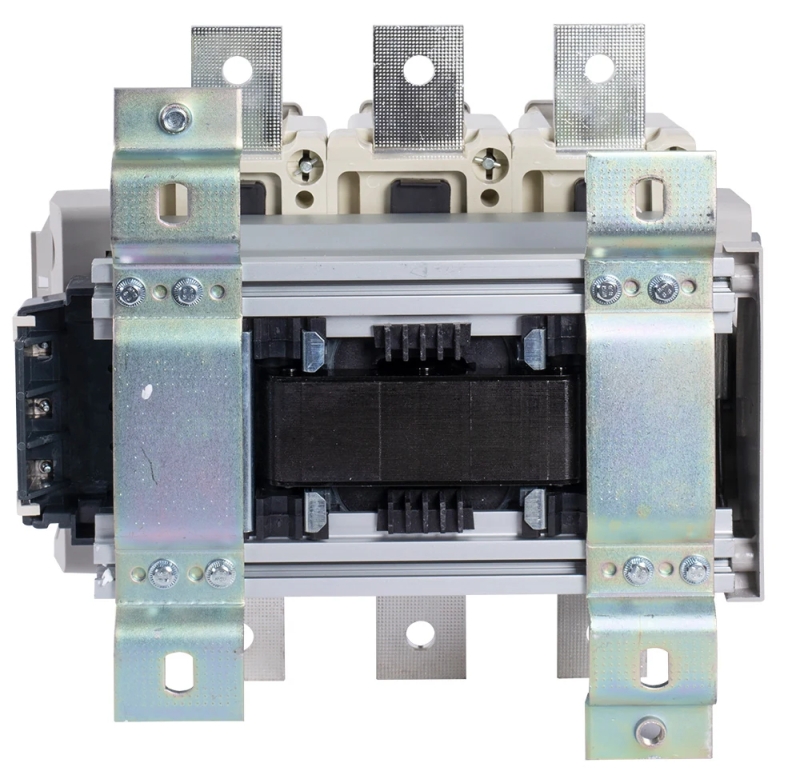

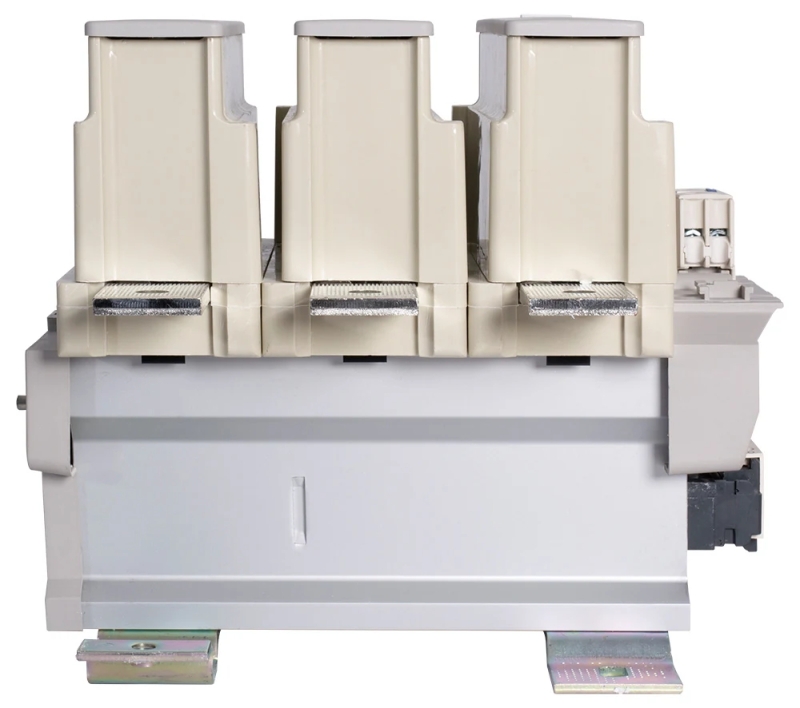

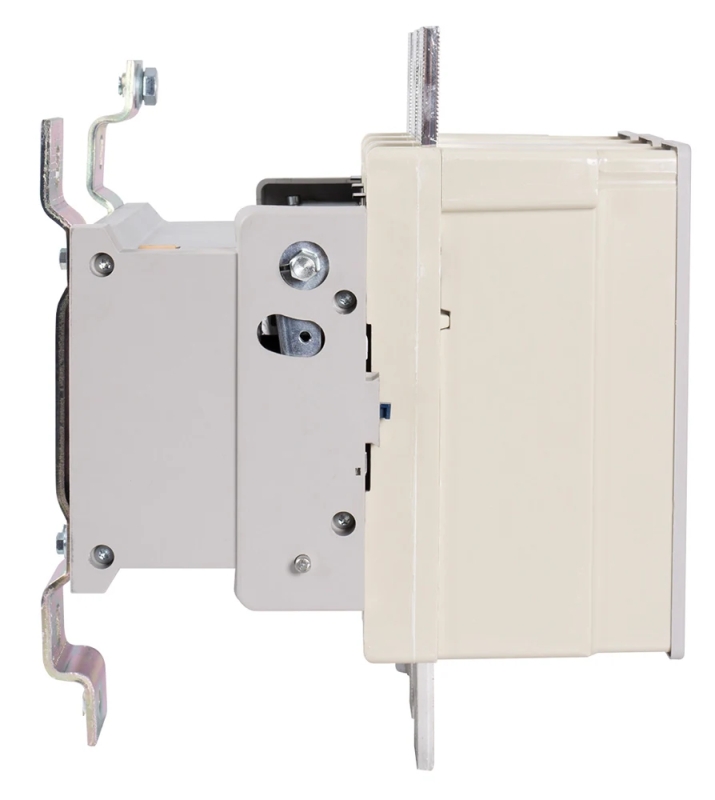

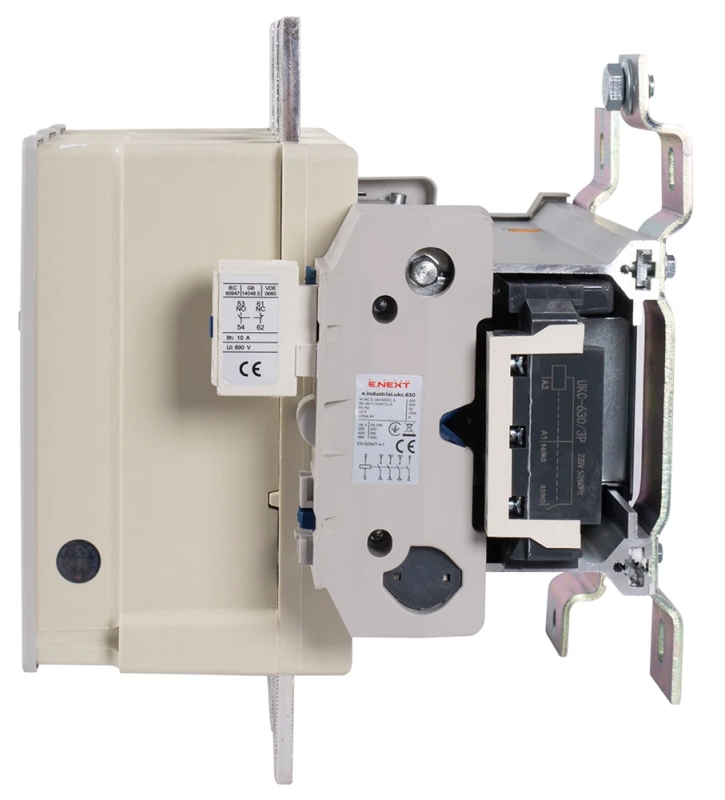

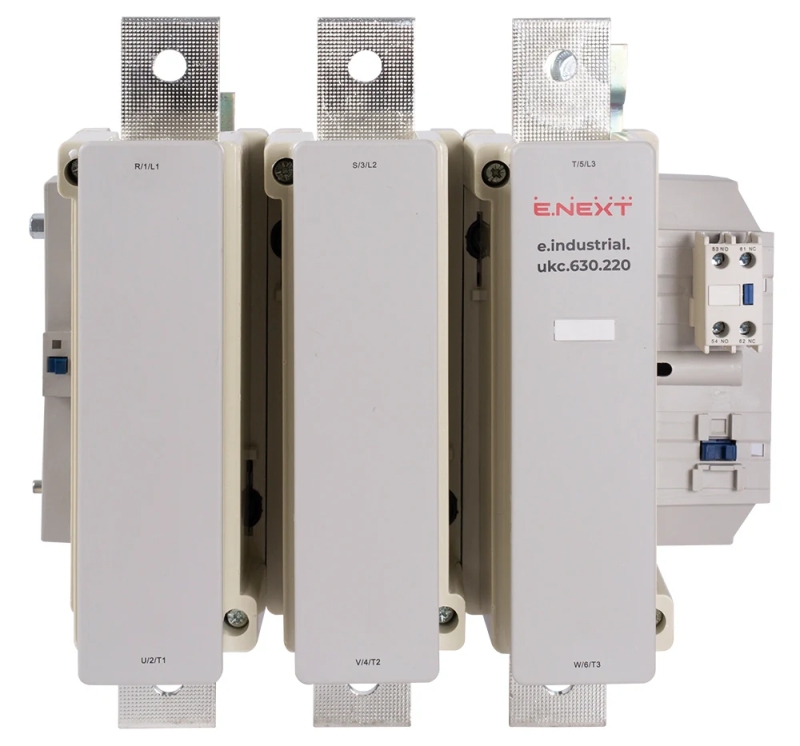

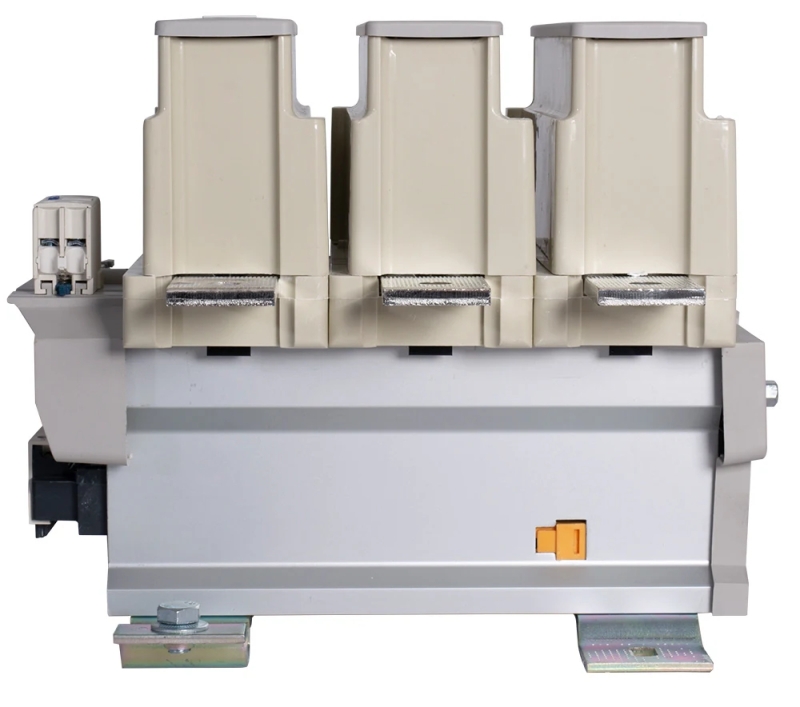

Contactor e.industrial.ukc.630.220, E.NEXT

Technical characteristics

Article: i.0090015
Number of poles: 3
Impulse withstand voltage Uimp: 8 kV
Application category: AC-3
Operating temperature range: -25…+40 °C
Degree of protection (IP): IP00
Additional contacts (type/number): 1NO
Maximum short-term overload (t≤1 s): 18 × In
Altitude: up to 2000 m
Insulation voltage Ui: 690 V
Rated operating voltage Ue: AC 400/660 V
Current type: AC
Coil voltage (Uc): 220 V
Rated frequency: 50 Hz
Rated power of controlled motor (AC-3): 400 kW
Pollution degree: 3
Rated operating current In (AC-3): 630 A
Compliance with standards: DSTU EN 60947-1; DSTU EN 60947-4-1
Disposal method: handover to a specialized company
Wear resistance mech./el.: ≥ 3 000 000 / 600 000 cycles
Mounting: on mounting plate
Operating position: arbitrary
Warranty: 12 months
