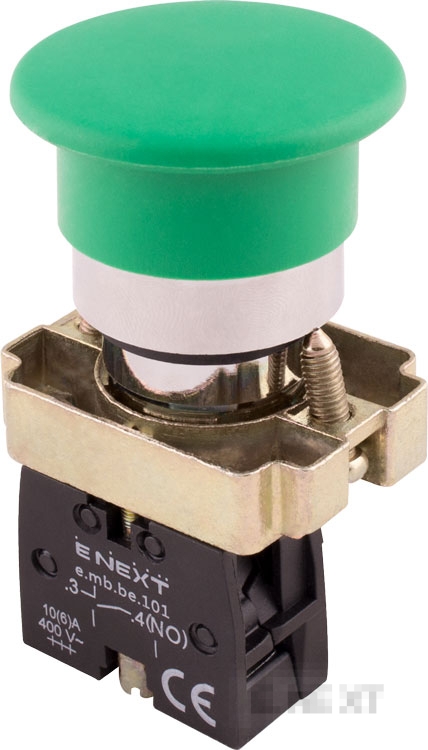

Mushroom button e.mb.bc31, non-latching, green, 1NO
Price excl. tax:
€1.92
Price inc. tax:
€2.82
-
Code:p0810116
The mushroom-type pushbutton e.mb.bc31 without locking, green, 1NO, is designed to control alternating current electrical circuits with voltage up to 400V, frequency 50/60Hz and direct current up to 220V, as well as various technological equipment.
Quick Buy
Just 4 fields to fill in
Technical specifications
Article p0810116
Insulation resistance ≥100 MΩ
Diameter, mm 22
Color Green
Supply voltage, V AC400, DC220
Operating temperature range, °C -25...+55
Protection degree, IP IP40
Altitude above sea level, m 2000
Insulation voltage Ui, V 600
Current type AC/DC
Rated frequency, Hz 50
Environmental pollution degree 3
Compliance with standards DSTU EN 60947-1, DSTU EN 60947-5-1
Disposal method transfer to a specialized enterprise
Wear resistance mechanical/electrical, cycles U-V, not less than 100*10⁴/500*10⁴
Contact 1NO
Assembly panel
Characteristics Without backlight
Rated operating current In, A (for AC-15, 220/380 V) 10/6
Contact resistance, mOhm 30
Warranty, I miss 12
