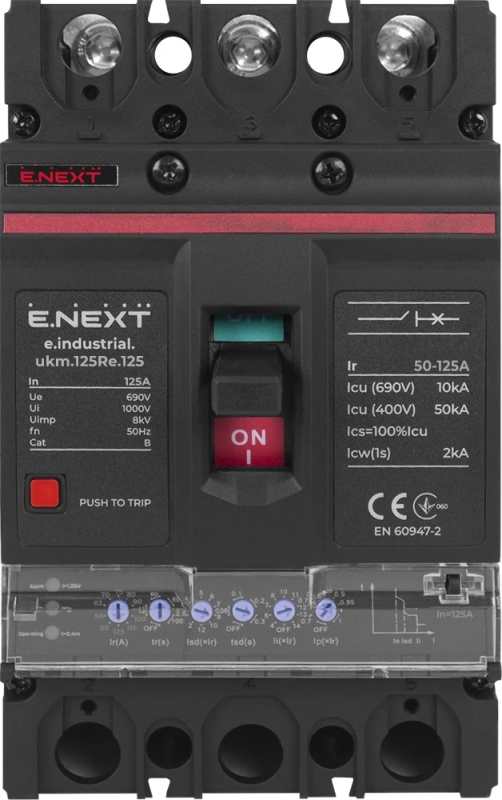

Power circuit breaker e.industrial.ukm.125re, 125 A with electronic tripping, E.NEXT
-
Code:i0770056
Estimated Shipping
outside Varna starts at
€11.49
to Varna starts at
€11.49
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Technical characteristics
Article: i0770056
Number of poles: 3
Impulse withstand voltage Uimp: 8 kV
Insulation voltage (Ui): 1000 V
Application category: B
Maximum short-term overload (t≤1s): 2000 A
Terminal tightening force: 10 Nm
Rated operating voltage Ue: AC 690 V
Current type: AC
Rated frequency: 50 Hz
Max. cross-section of connected wires: 50 mm²
Degree of protection (IP): housing – IP30, terminals – IP00
Compliance with standards: DSTU EN 60947-1; EN 60947-2
Disposal method: handover to a specialized company
Rated breaking capacity (Icu): 50 kA
Rated current In: 125 A
Durable mechanical/electrical: <40,000 / 8,000 cycles
Rated operational breaking capacity (Ics, AC 400 V): 50 kA
Operating temperature range: -30…+70 °C
Mounting: on a mounting panel
Disconnector type: electronic
Altitude above sea level: ≤2000 m
Operating position: vertical and horizontal, with a deviation of ≤5°
Warranty: 24 months
