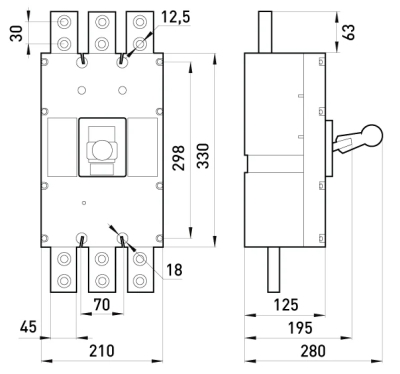

MCCB e.industrial.ukm.1600s.1600.3p, 1600 A, E.NEXT
-
Code:i0010030
Estimated Shipping
outside Varna starts at
€30.83
to Varna starts at
€30.83
to Varna starts at
€27.42
outside Varna starts at
€27.62
Quick Buy
Technical characteristics
Article: i0010030
Number of poles: 3
Weight: 21.5 kg
Impulse withstand voltage Uimp: 8 kV
Insulation voltage (Ui): 800 V
Application category: A
Terminal tightening force: 22.5 Nm
Rated operating voltage Ue: AC 660 V
Current type: AC
Rated frequency: 50 Hz
Tripping setting at hp (Im): 5 In ±20%
Max. cross-section of connected wires: 40×10 mm²
Degree of protection (IP): housing – IP30, terminals – IP00
Compliance with standards: DSTU EN 60947-1; EN 60947-2
Disposal method: handover to a specialized company
Rated breaking capacity (Icu): 80 kA
Rated current In: 1600 A
Mechanical/electrical durability: <2,500 / 500 cycles
Rated operational breaking capacity (Ics, AC 400 V): 40 kA
Operating temperature range: -25…+60 °C
Mounting: on a mounting panel
Altitude above sea level: ≤1000 m
Characteristics: thermomagnetic protection unit
Operating position: vertical and horizontal, with a deviation of ≤5°
Warranty: 12 months
