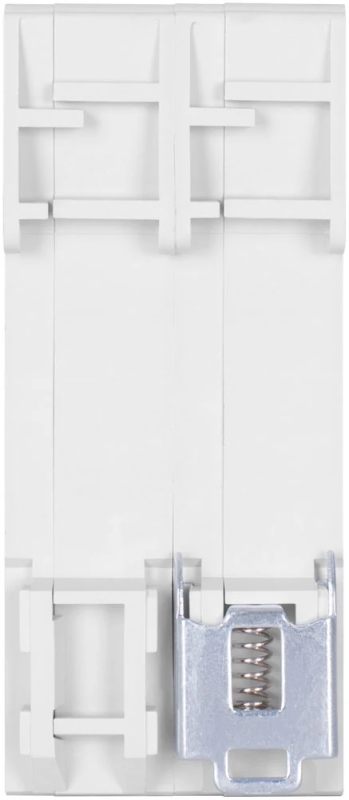

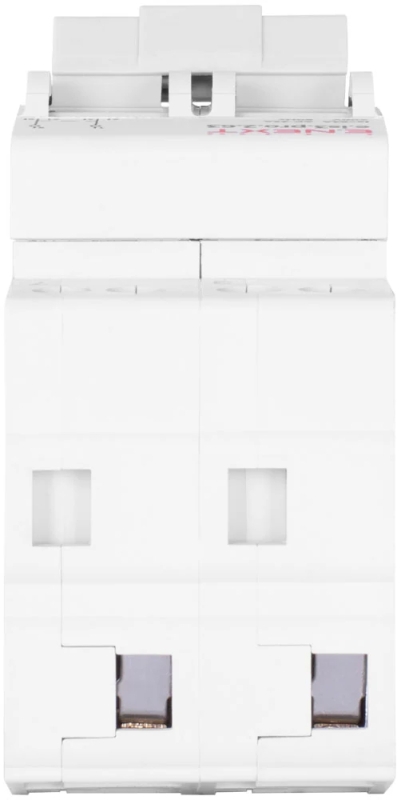

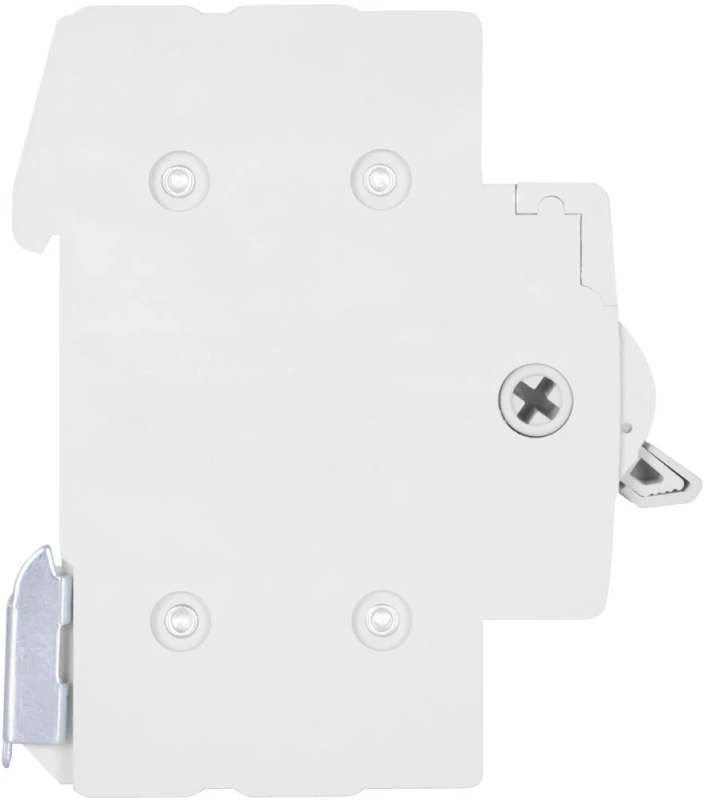

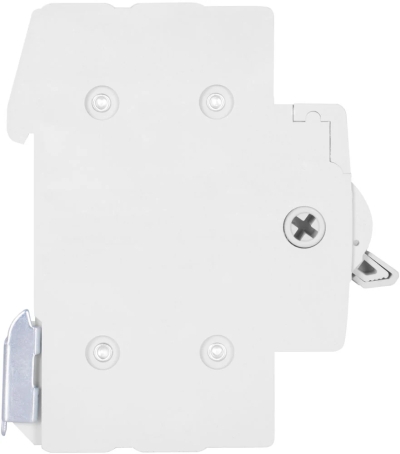

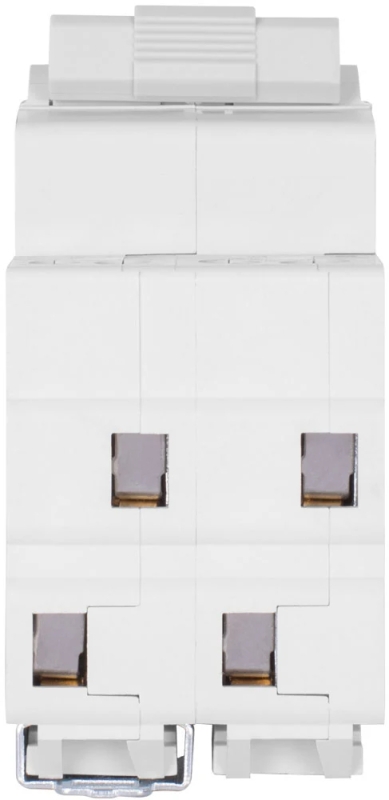

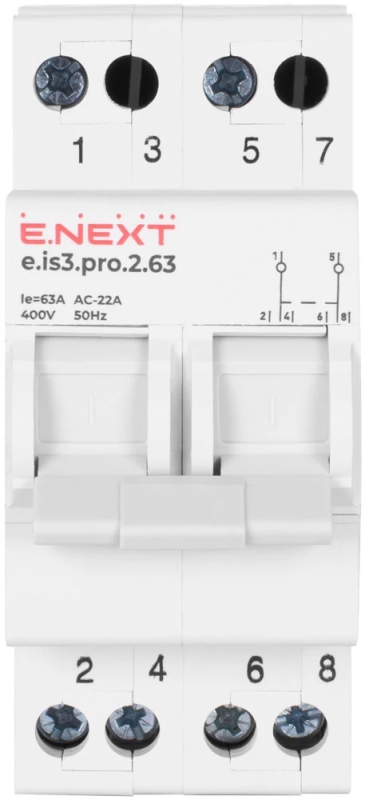

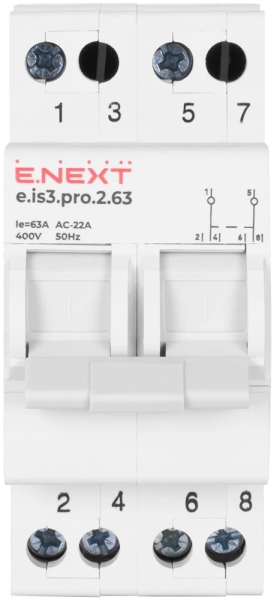

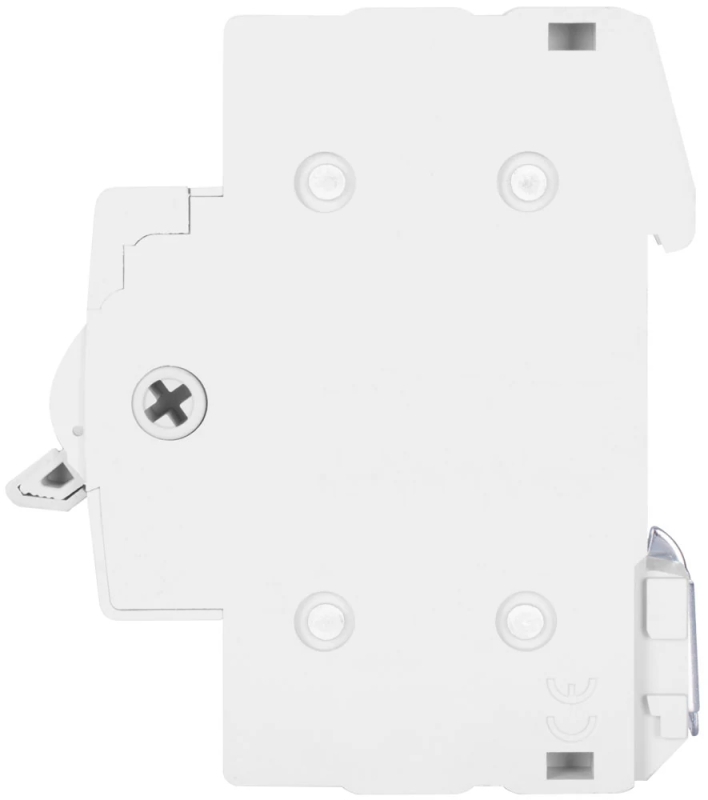

Three-position load break switch e.is3.pro.2.63, 2p, 63 A, E.NEXT
-
Code:p008014
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Technical characteristics
Article: p008014
Number of poles: 2
Impulse withstand voltage Uimp: 4 kV
Application category: AC-22 A
Tightening force of contact terminals: 1.5 Nm
Altitude above sea level: 2000 m
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Max. cross-section of connected wires, mm²: 6 (stranded), 10 (solid)
Degree of protection (IP): IP20

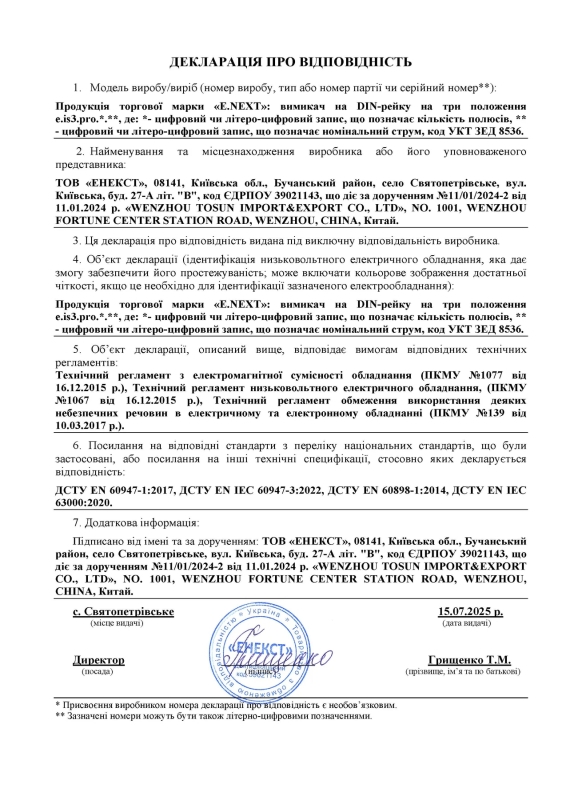

Compliance with standards: DSTU EN 60947-3
Disposal method: transfer to a specialized company
Switch position: 1-0-2
Rated current In: 63 A
Wear resistance mech./el.: under 30,000 / 10,000 cycles
Rated short-time withstand current (1s) Icw: 12 In
Operating temperature range: -25…+40 °C
Mounting: on DIN-rail 35 mm
Operating position: vertical, horizontal, deviation no more than 5°
Weight: up to 200 g
Warranty: 12 months
