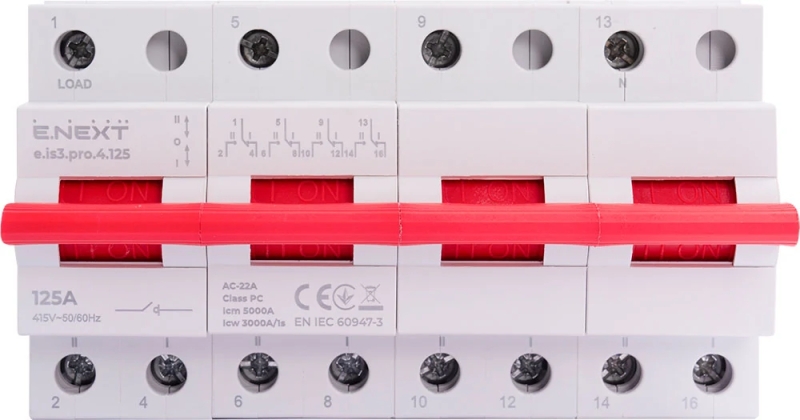

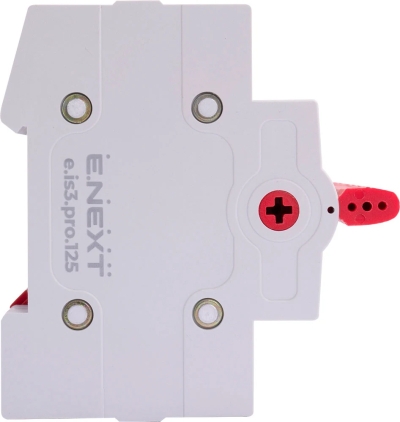

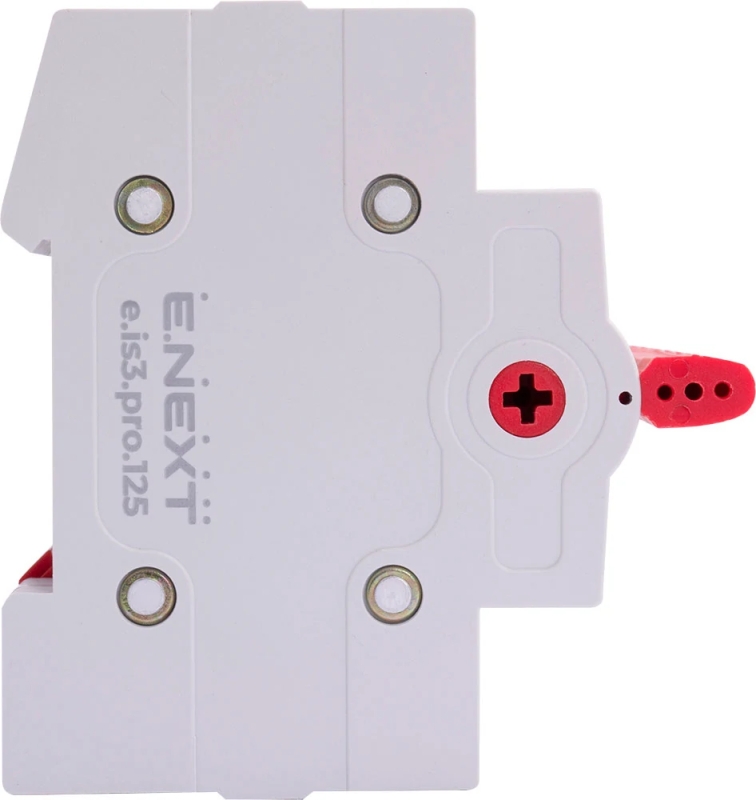

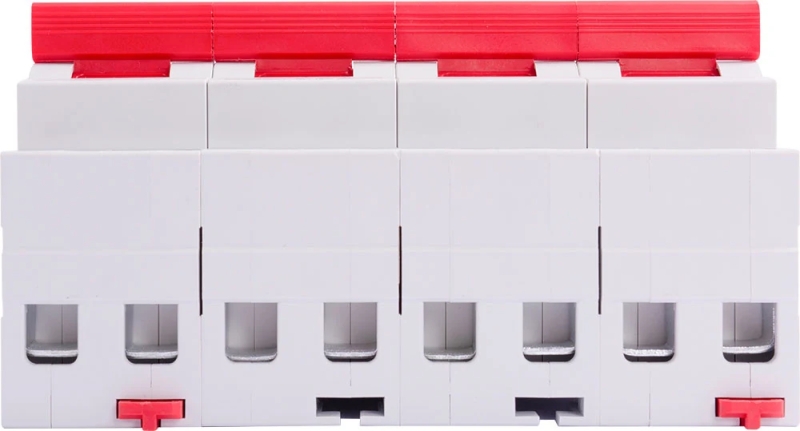

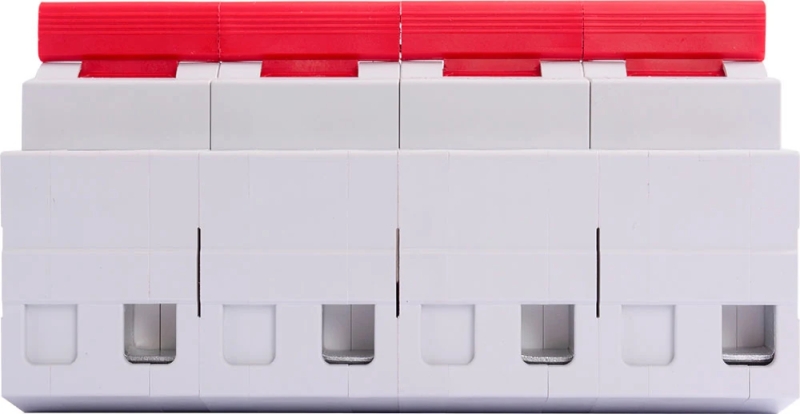

Three-position load switch e.is3.pro.4.125, 4p, 125 A, E.NEXT
Price excl. tax:
€55.48
Price inc. tax:
€66.58
-
Code:p008032
The e.is3.pro.4.63, 4p, 63A three-position DIN-rail switch is designed for switching electrical circuits, switching phases, reversing motors, manual reserve switching, etc. The product is used in networks protected against short-circuit and overload currents.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: p008032
Number of poles: 4
Impulse withstand voltage Uimp: 4 kV
Application category: AC-22B
Tightening force of contact terminals: 6 Nm
Altitude above sea level: 2000 m
Insulation voltage (Ui): 500 V
Rated operating voltage Ue: AC 415 V
Current type: AC
Rated frequency: 50 Hz
Maximum cross-section of connecting wires: 60 mm²
Degree of protection (IP): IP20

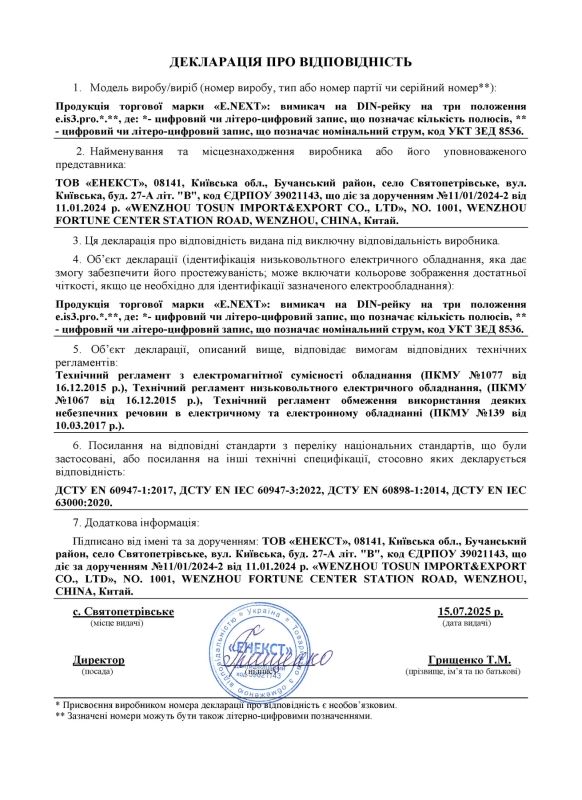

Compliance with standards: DSTU EN 60947-3
Disposal method: Handover to a specialized company
Switch position: 1-0-2
Rated current In: 125 A
Wear resistance (mechanical/electrical): <30000 / 10000 cycles
Operating temperature range: –5…+40 °C

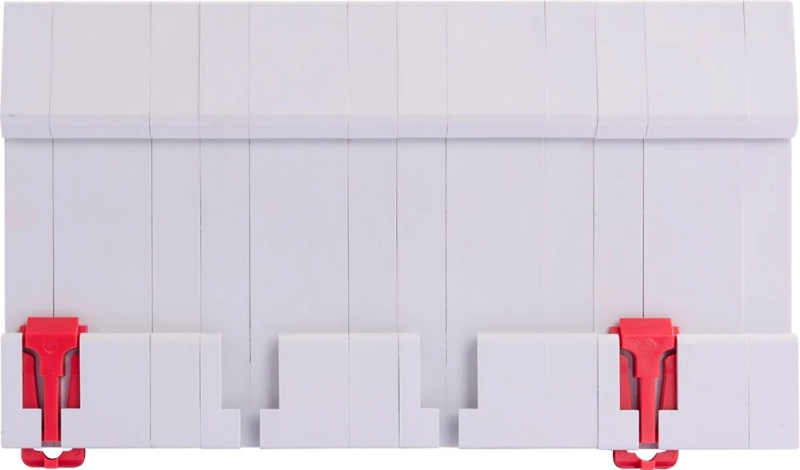

Mounting: On DIN rail 35 mm
Operating position: Vertical or horizontal (deviation up to 5°)
Weight: no more than 600 g
Warranty: 12 months
