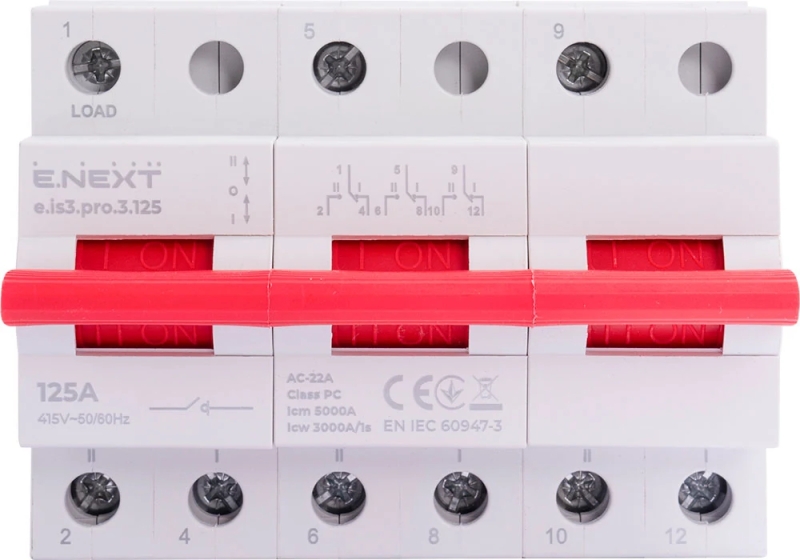

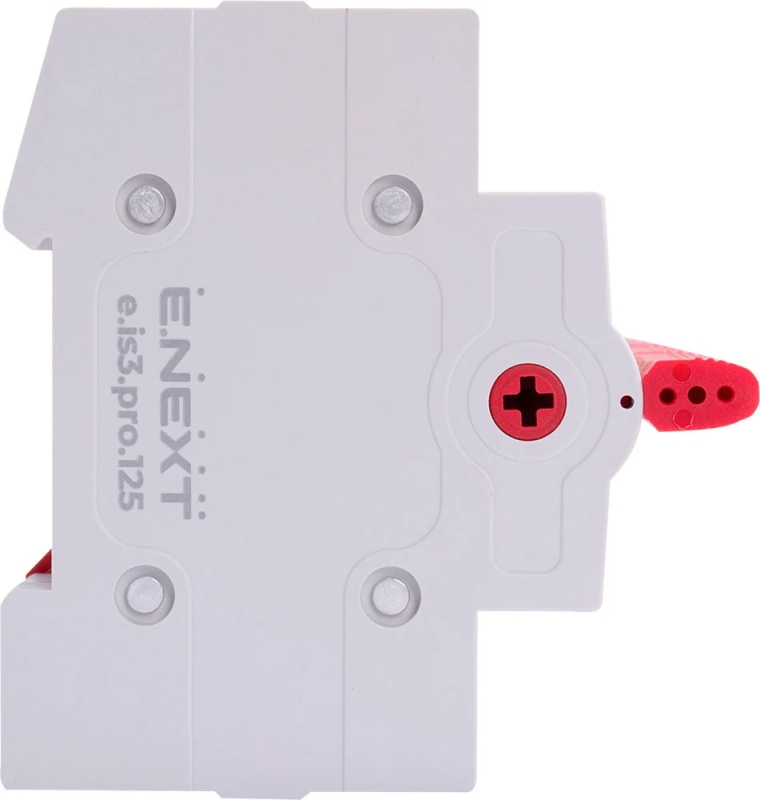

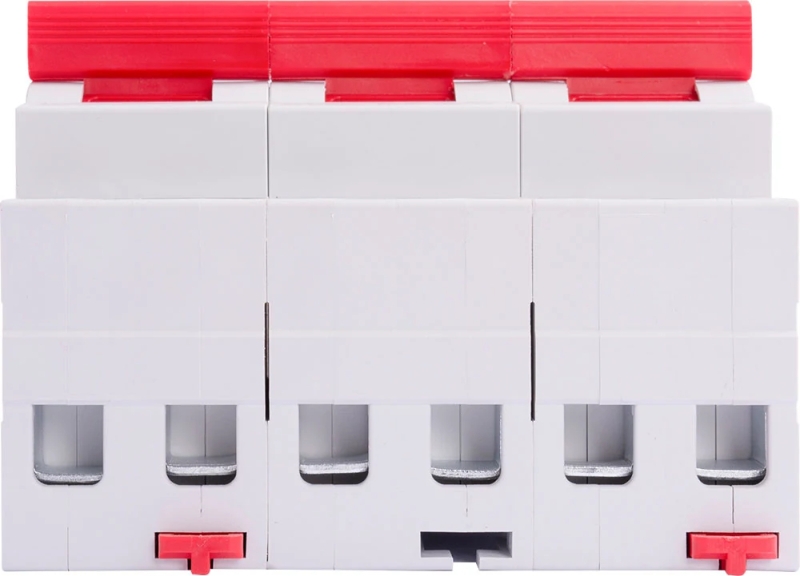

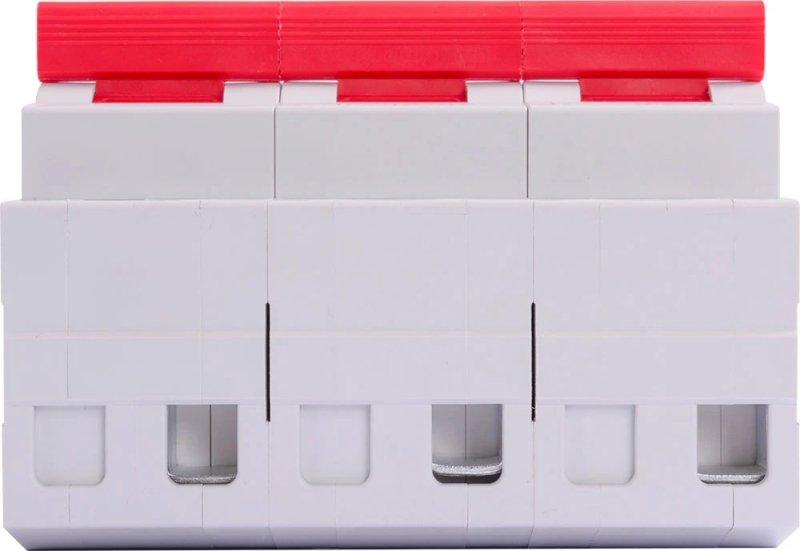

Three-position load break switch e.is3.pro.3.125, 3p, 125 A, E.NEXT

Technical characteristics

Article: p008031
Number of poles: 3
Impulse withstand voltage Uimp: 4 kV
Application category: AC-22B
Tightening force of contact terminals: 6 Nm
Altitude above sea level: 2000 m
Insulation voltage (Ui): 500 V
Rated operating voltage Ue: AC 415 V
Current type: AC
Rated frequency: 50 Hz
Maximum cross-section of connecting wires: 60 mm²
Degree of protection (IP): IP20

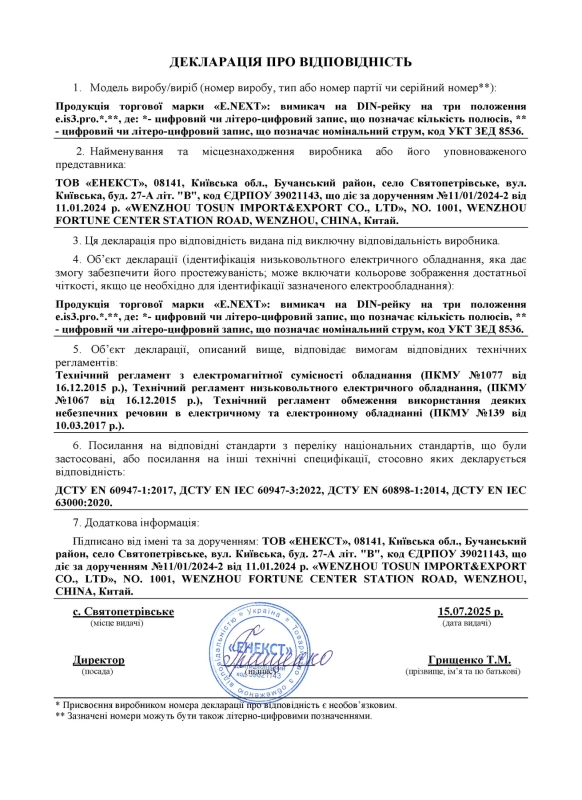

Compliance with standards: DSTU EN 60947-3
Disposal method: Handover to a specialized company
Switch position: 1-0-2
Rated current In: 125 A
Rated short-term withstand overload current (Icw): 24In
Wear resistance (mechanical/electrical): <30000 / 10000 cycles
Operating temperature range: –5…+40 °C

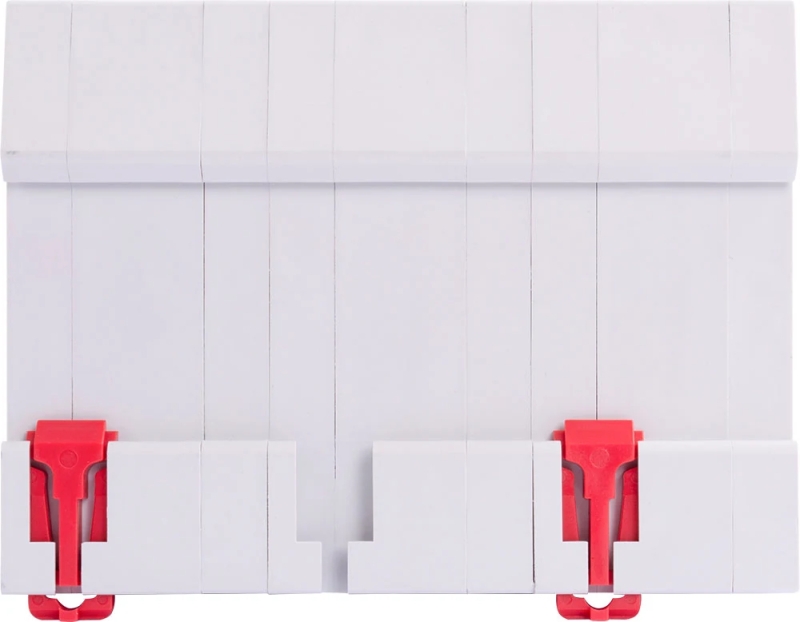

Mounting: On DIN rail 35 mm
Operating position: Vertical or horizontal (deviation up to 5°)
Weight: no more than 450 g
Warranty: 12 months
