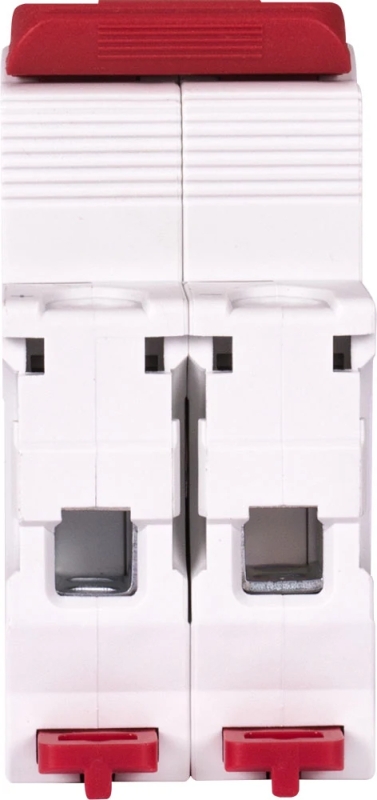

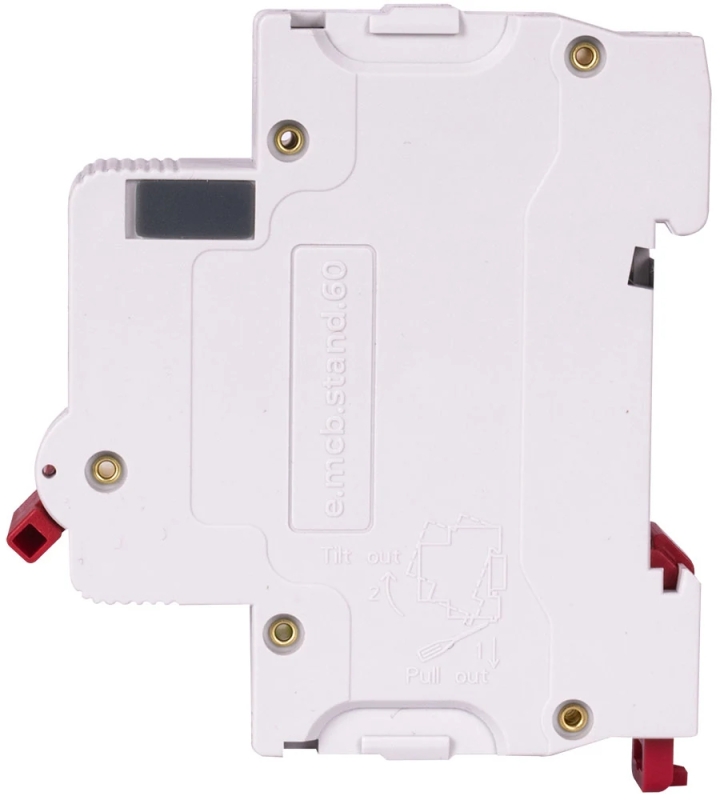

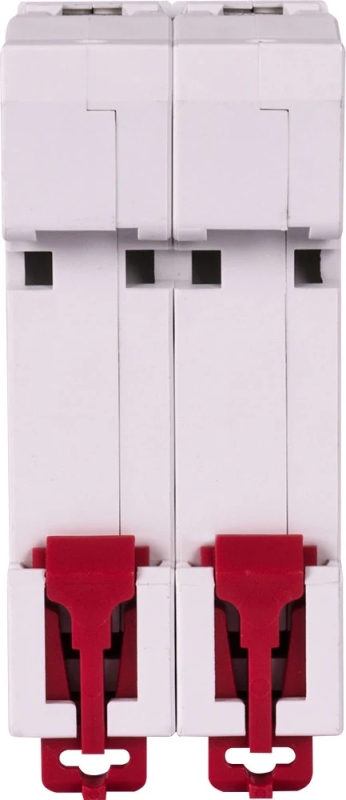

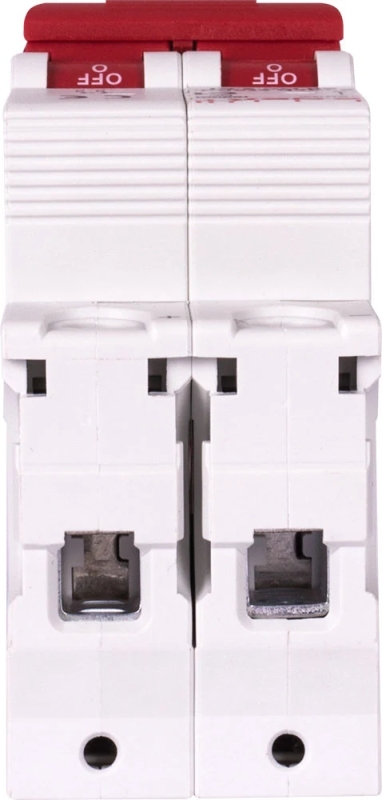

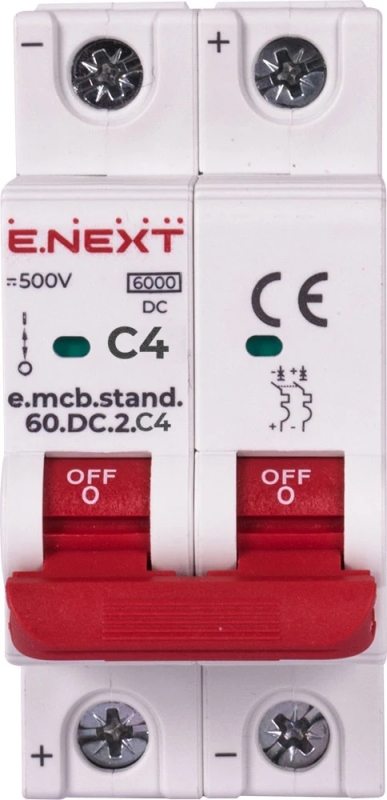

Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT

Price excl. tax: €8.44
Price inc. tax: €10.13
  • Code:
    s081016
The modular circuit breakers of the e.mcb.stand.60.DC series are designed to protect direct current electrical networks from overload currents and short circuits, as well as for infrequent operational switching of electrical networks.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    4 A
  • Number of poles:
    2P
  • Shutdown curve:
    C
  • Breaking capacity [kA]:
    6 kA

We have 54 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order

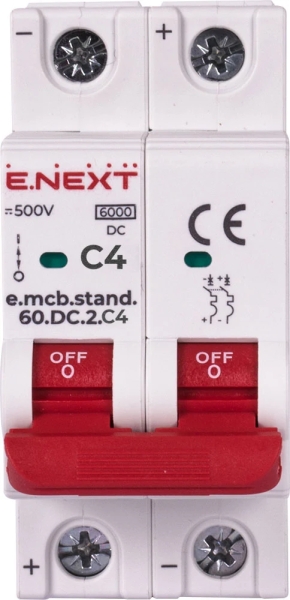

Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT
Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: s081016
Connection to busbar type FORK (fork): no
Number of poles: 2
Current-time characteristic: C
Rated breaking capacity Icn: 6 kA
Impulse withstand voltage Uimp: 6 kV
Application category: DC-22B
Terminal tightening torque: 2.5 Nm
Altitude above sea level: 2000 m
Insulation voltage Ui: 1200 V
Current type: DC
Rated frequency: 50 Hz
Climatic performance: UHL3, UHL4
Pollution degree: 2
Max. conductor cross-section: 25 mm²
Degree of protection (IP): IP20
Compliance with standards: DSTU EN 60947-2; EN 60898-2
Disposal method: handover to a specialized company
Rated current In: 4 A
Durability mech./el., I/O cycles: no more than 20,000 / 10,000
Operating temperature range: -40…+70 °C
Rated operating voltage Un: DC 500 V
Mounting: on DIN rail 35 mm
Operating position: vertical or horizontal (deviation no more than 5°)
Weight: ≤200 g
Warranty: 36 months
