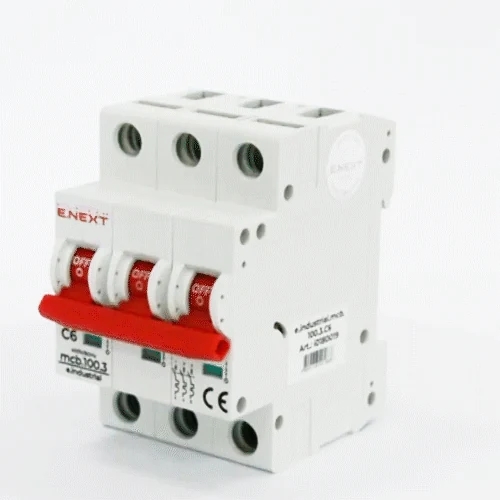

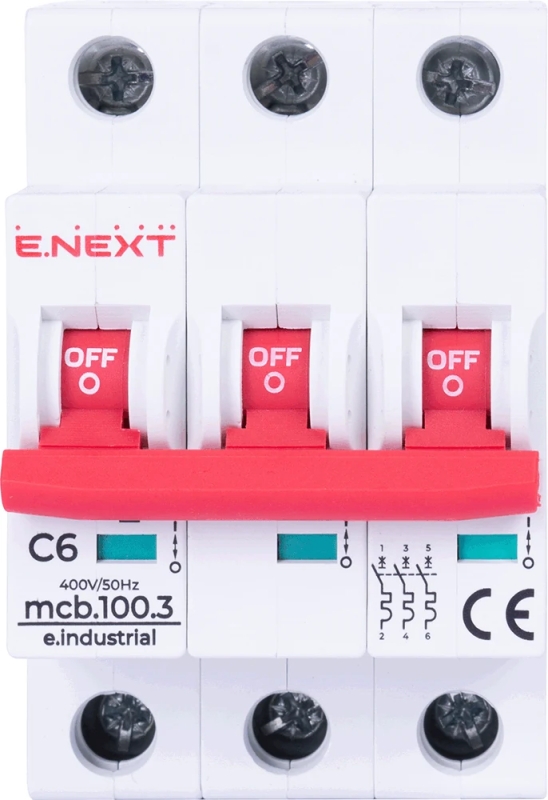

Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT

Price excl. tax: €10.94
Price inc. tax: €13.13
  • Code:
    i0180019
Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA. Key characteristics: nominal voltage DC, V/pole: 48; connection to busbar type FORK: top and bottom; impulse withstand voltage Uimp: 6 kV.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    6 A
  • Number of poles:
    3P
  • Shutdown curve:
    C
  • Breaking capacity [kA]:
    10 kA

We have 88 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT
Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT Modular circuit breaker E.INDUSTRIAL.MCB.100.3.C6, 3 P, 6 A, C, 10 kA, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: i0180019
Nominal voltage DC, V/pole: 48
Connection to busbar type FORK: top and bottom
Current limitation class: 3
Number of poles: 3
Current-time characteristic: C
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 5 Nm
Altitude above sea level: 2000 m
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Climatic performance: UHL4
Pollution degree: 3
Max. conductor cross-section: 25 mm²
Degree of protection (IP): IP20
Compliance with standards: DSTU EN 60898-1; EN 60947-2
Rated breaking capacity Icu: 10 kA
Rated current In: 6 A
Mechanical/electrical durability: ≤20,000 / ≤8,000 cycles
Operating temperature range: –25…+40 °C
Mounting: on 35 mm DIN rail
Operating position: vertical/horizontal (deviation ≤5°)
Weight: ≤345 g
Disposal method: handover to a specialized company
Warranty: 12 months
