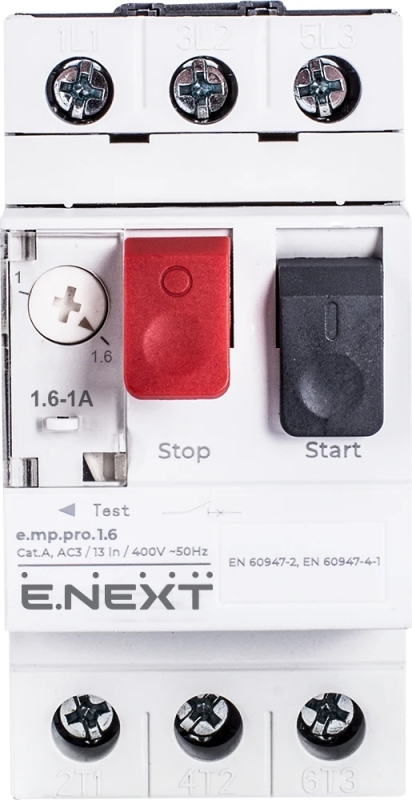

MOTOR PROTECTION E.MP.PRO.1,6 1-1,6A E.NEXT
Price excl. tax:
€22.42
43.85лв.
Price inc. tax:
€26.90
52.61лв.
-
Code:p004001
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: p004001
Number of poles: 3
Setting range: 1…1.6 A
Uimp: 8 kV
Tightening torque: 1.2 Nm
Altitude: 2000 m
Ui: 690 V
Ue: AC 400/660 V
Frequency: 50 Hz
Pollution degree: 2
Max. conductor: 6 mm²
IP: IP20
Standards: DSTU EN 60947-2; EN 60947-4-1
Icu: 15 kA
In: 1.6 A
Wear resistance: <20,000 / 10,000
Ics (400 V): 7.5 kA
Switching cycles: 25 cycles/hour
Temperature: -25…+40 °C
Class: 10A
Mounting: DIN 35 mm
Position: vertical/horizontal, ≤5°
Warranty: 12 months
