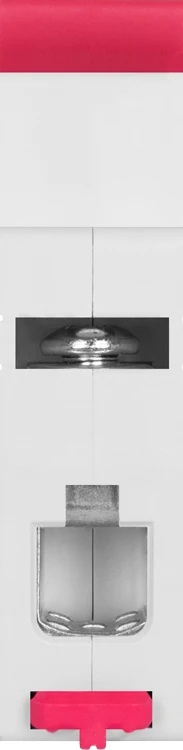

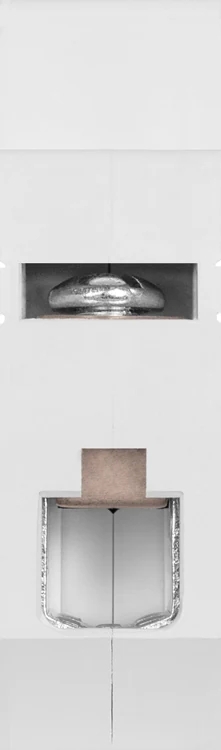

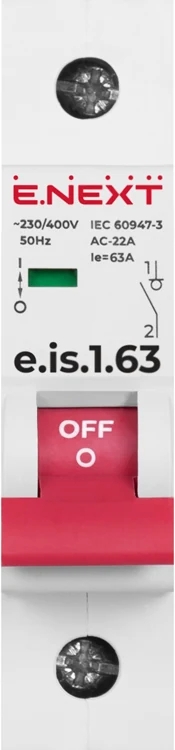

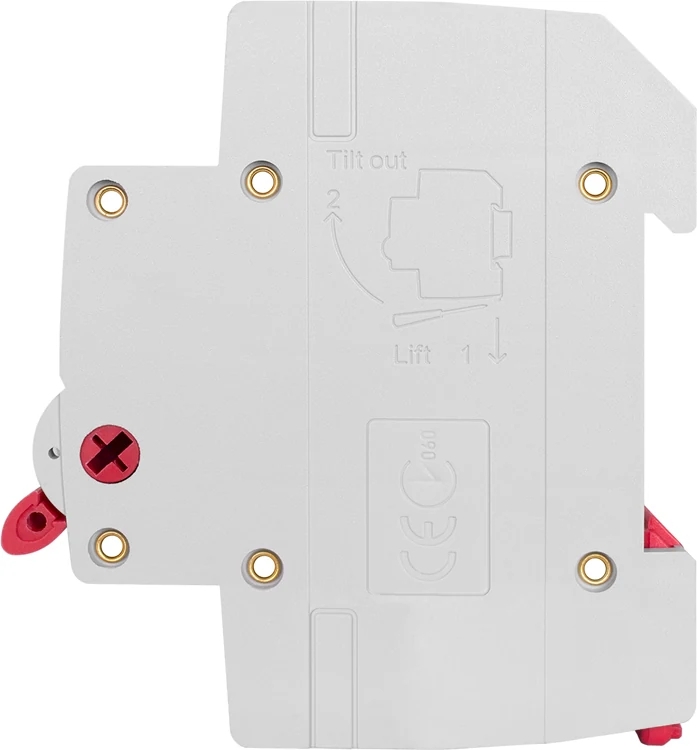

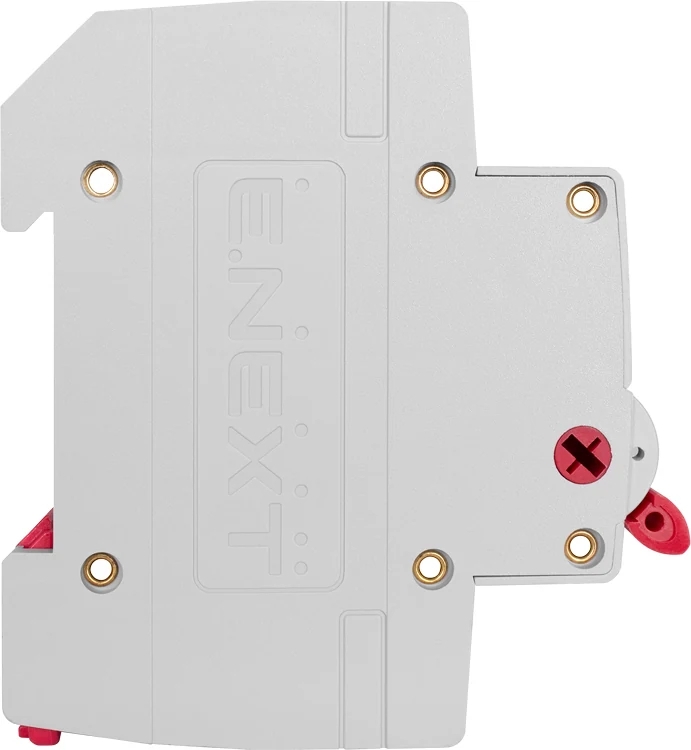

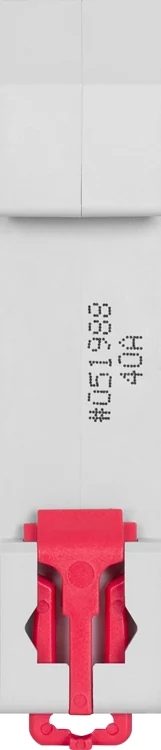

LOAD switch E.IS.PRO.1.63, 1P, 63 A, E.NEXT
Price excl. tax:
€4.83
Price inc. tax:
€5.80
-
Code:p008003
LOAD switch E.IS.PRO.1.63, 1P, 63 A. Key characteristics: impulse withstand voltage Uimp: 4 kV; application category: AC-22A; terminal tightening torque: 3.5 Nm.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: p008003
Number of poles: 1
Impulse withstand voltage Uimp: 4 kV
Application category: AC-22 A
Terminal tightening torque: 3.5 Nm
Altitude above sea level: up to 2000 m
Insulation voltage (Ui): 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Max. cross-section of the connected wires: 50 mm²
Degree of protection (IP): IP20
Compliance with standards: DSTU EN 60947-3
Rated current In: 63 A
Mechanical/electrical durability: < 10,000 / 4,000 cycles
Rated short-time withstand current (1s Icw): 12×In
Operating temperature range: -25…+40 °C
Rated making/breaking capacity: 3×In
Mounting: on DIN rail 35 mm
Operating position: vertical or horizontal, deviation ≤ 5°
Weight: ≤ 80 g
Warranty: 12 months
