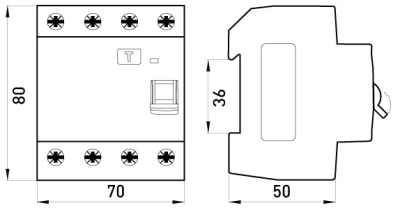

Residual current circuit breaker (RCCB) E.RCCB.PRO.4.40.100, 4, 40 A, E.NEXT
-
Code:p003023
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Technical characteristics
Article: p003023
Product type: RCD (RCD), electromechanical
Compatibility with comb-busbar (FORK): no
Current limitation class: 2
Differential current (IΔn): 100 mA
Number of poles: 4
Impact withstand voltage (Uimp): 6 kV
Tightening torque: 3.5 N m
Mounting height: ≤2000 m
Insulation voltage (Ui): 500 V
Operating voltage (Ue): AC 230/400 V
Rated frequency: 50 Hz
Climatic version: UHL4
Max. conductor cross-section: 25 mm²
Degree of protection (IP): IP20
Compliance with standards: DSTU EN 61008-1
Limited breaking capacity (Icu): 6 kA
Rated current In: 40 A
Mechanical wear resistance: ≤10,000 cycles
Electrical wear resistance: ≤4,000 cycles
Operating temperature range: -25…+40 °C
Making/breaking capacity: 1000 A
Mounting: DIN rail 35 mm
Operating position: vertical or horizontal (deviation ≤5°)
Weight: ≤320 g
RCD type: AC
Warranty: 12 months
