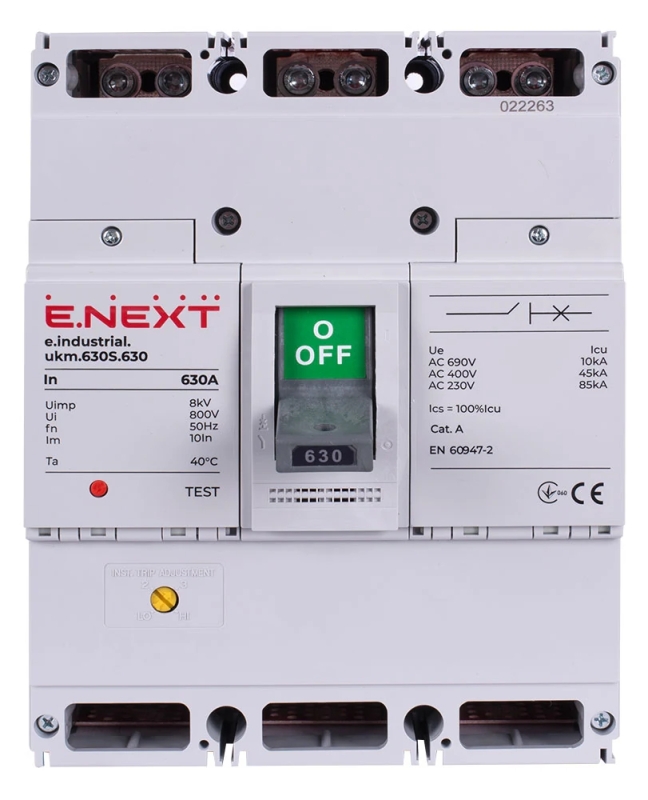

MCCB E.INDUSTRIAL.UKM.630S.630, 630 A, E.NEXT
-
Code:i0010011
Estimated Shipping
outside Varna starts at
€20.00
to Varna starts at
€20.00
to Varna starts at
€8.35
outside Varna starts at
€8.54
Quick Buy
Technical characteristics
Article: i0010011
Number of poles: 3
Weight: 10.9 kg
Uimp: 8 kV
Ui: 800 V
Application category: A
Terminal tightening torque: 22.5 Nm
Ue: AC 660 V
Current type: AC
Rated frequency: 50 Hz
Short-circuit setting Im: 10 In ±20%
Max. conductor cross-section: 40×10 mm² (busbar connector)
Degree of protection (IP): housing IP30; terminal side IP00
Compliance with standards: DSTU EN 60947-1; EN 60947-2 DSTU
Disposal: specialized company
Nom. breaking capacity limit Icu: 70 kA
Rated current In: 630 A
Mechanical/electrical durability: ≤ 2500/500 cycles
Rated operational breaking capacity Ics (AC 400 V): 70 kA
Operating temperature range: −25…+40 °C
Busbar connection: e.industrial.ukm.630S.busbar (i0050005)
Mounting: on mounting plate
Altitude above sea level: not more than 2000 m
Features: thermomagnetic protection unit
Operating position: vertical/horizontal, deviation up to 5°
Warranty: 12 months
