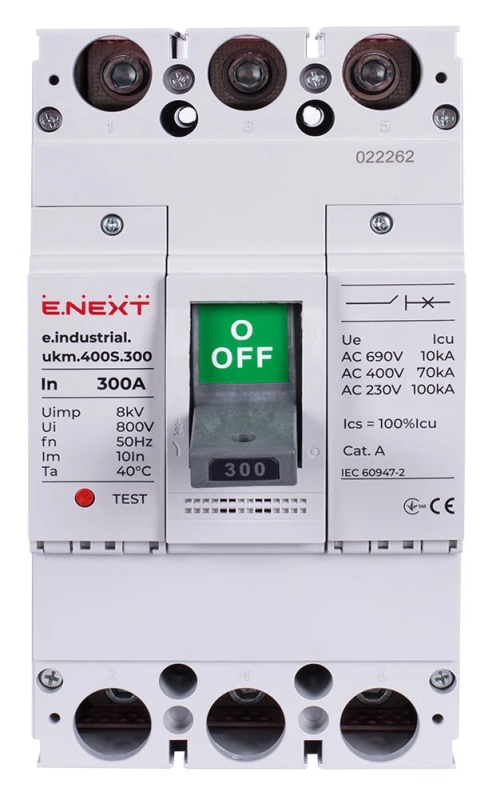

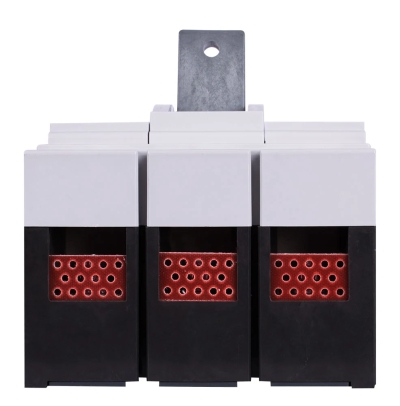

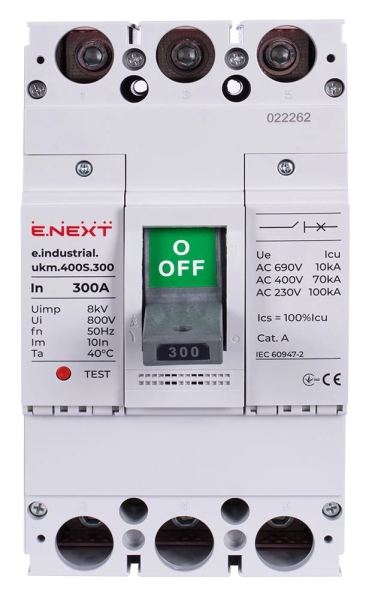

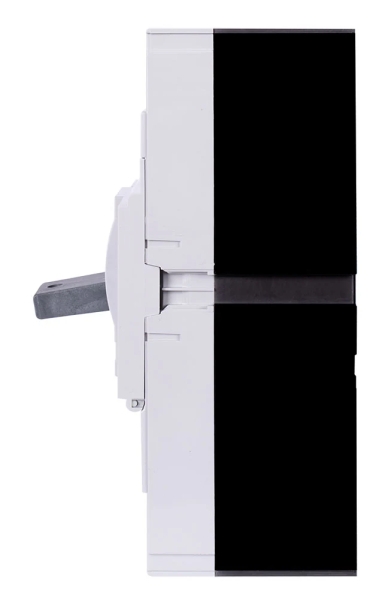

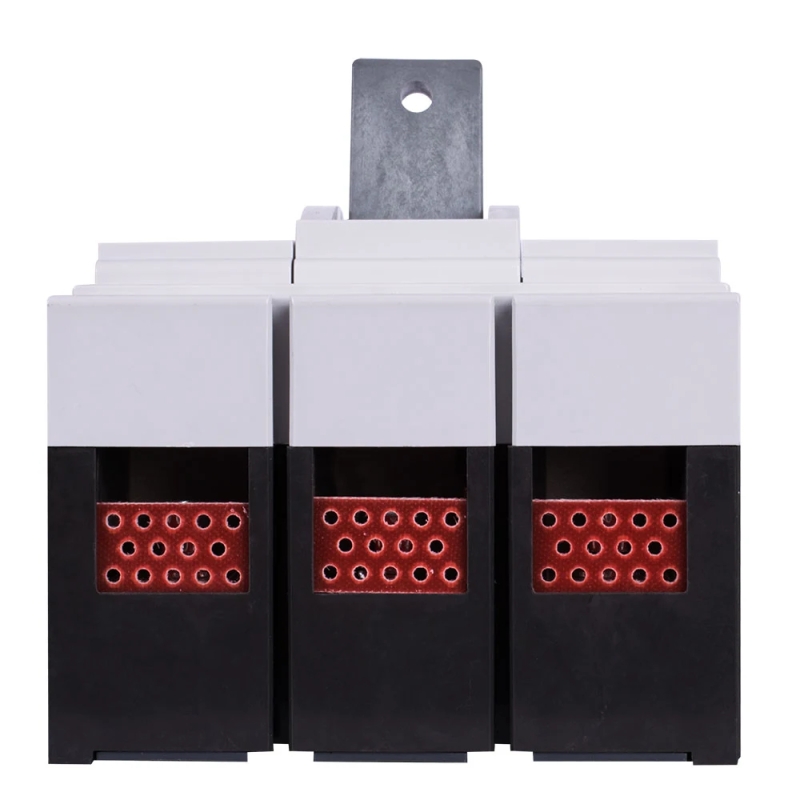

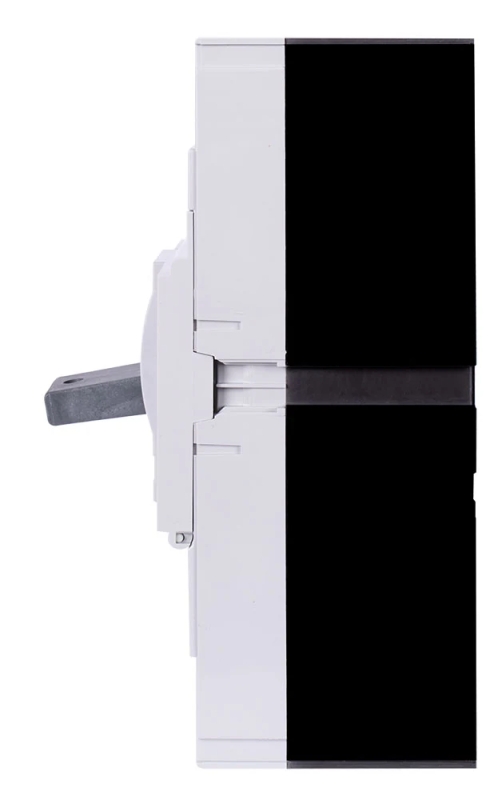

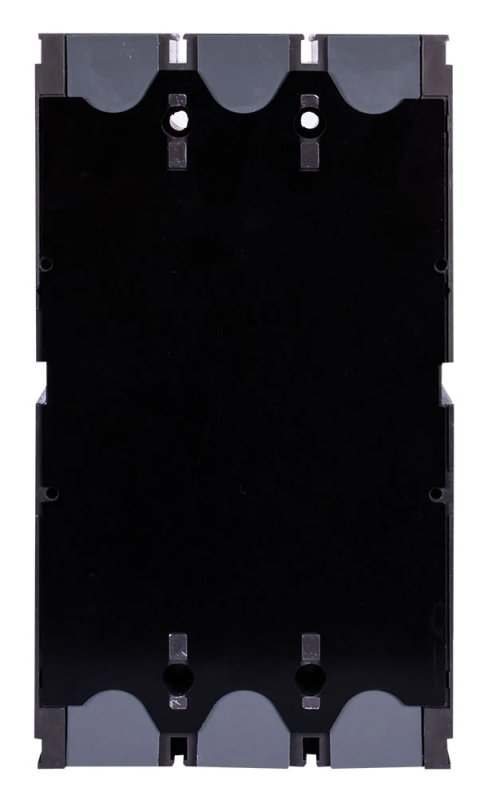

POWER CIRCUIT BREAKER E.INDUSTRIAL.UKM.400S.300, 3P, 300A E.NEXT
Price excl. tax:
€168.73
330.01лв.
Price inc. tax:
€202.48
396.02лв.
-
Code:i0010027
Estimated Shipping
outside Varna starts at
€15.00
to Varna starts at
€15.00
to Varna starts at
€5.88
outside Varna starts at
€6.02
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: i0010027
Number of poles: 3
Weight: 5.7 kg
Uimp: 8 kV
Ui: 800 V
Category: A
Tightening torque: 22.5 Nm
Ue: AC 660 V
Current type: AC
Frequency: 50 Hz
Im: 10 In ±20%
Max. cross-section: 40×8 mm²
IP: housing IP30; terminals IP00
Standards: DSTU EN 60947-1; EN 60947-2 DSTU
Icu: 70 kA
In: 300 A
Endurance mech./el.: ≤ 4000/1000 cycles
Ics (AC 400 V): 70 kA
Temperature: −25…+40 °C
Busbar: e.industrial.ukm.400S.busbar (i0050004)
Mounting: mounting plate
Height: ≤ 2000 m
Features: thermomagnetic block
Position: vertical/horizontal, up to 5°
Warranty: 12 months
