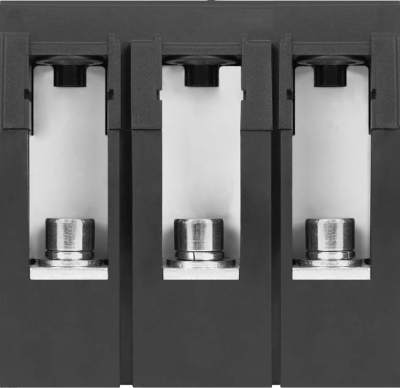

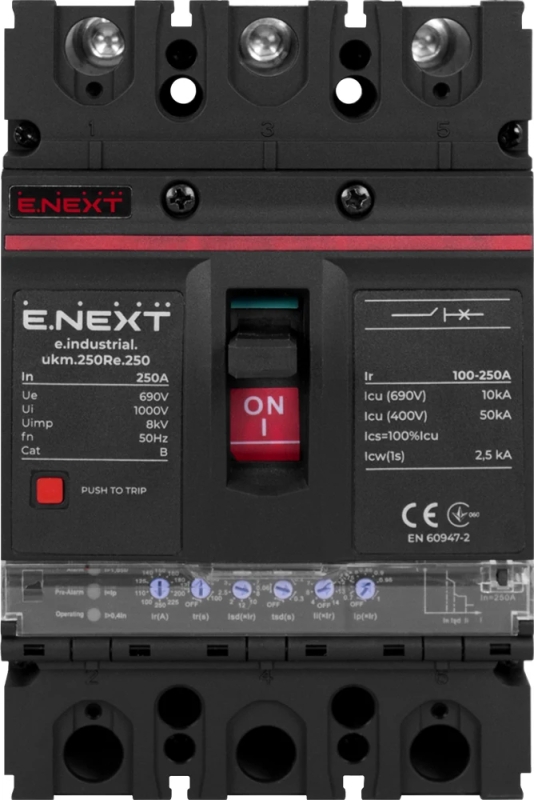

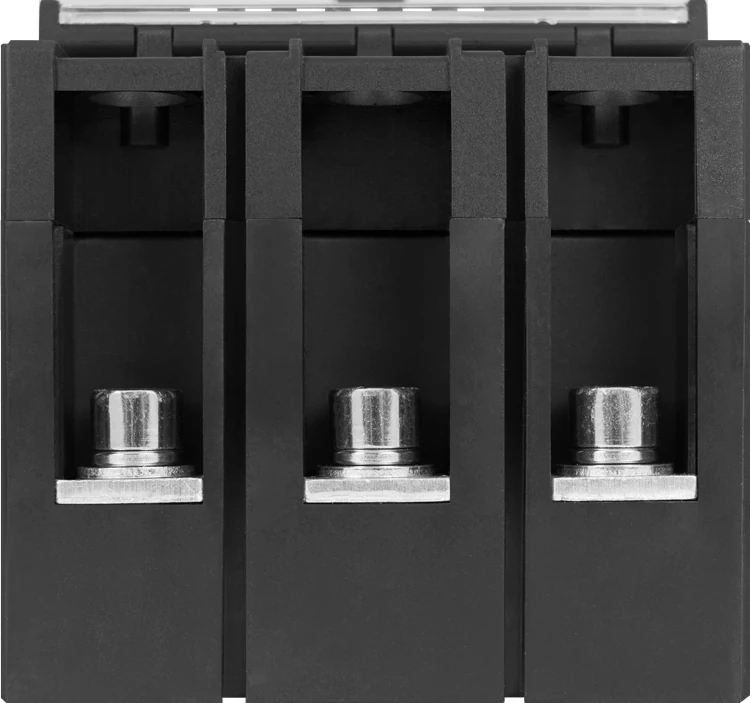

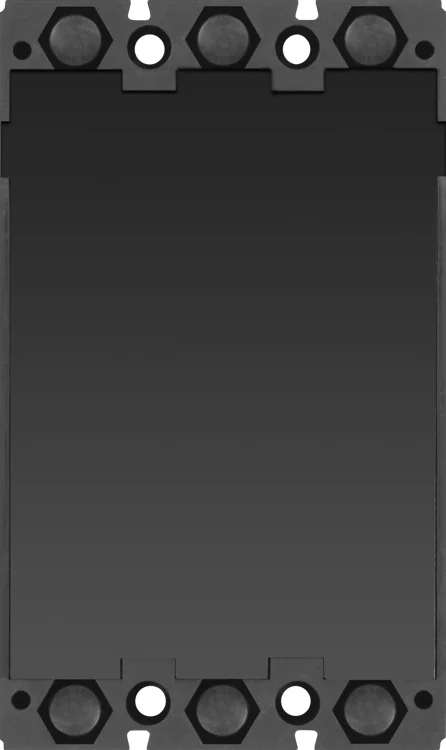

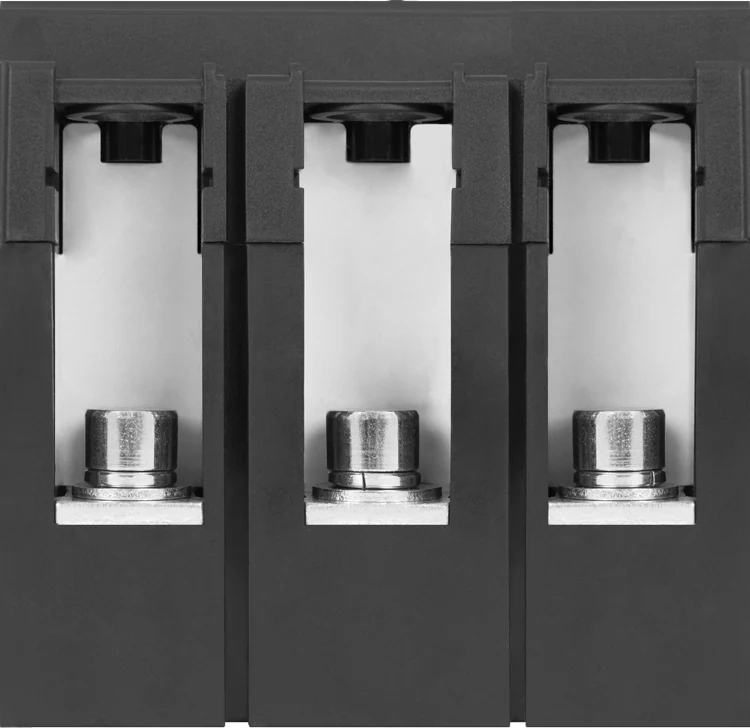

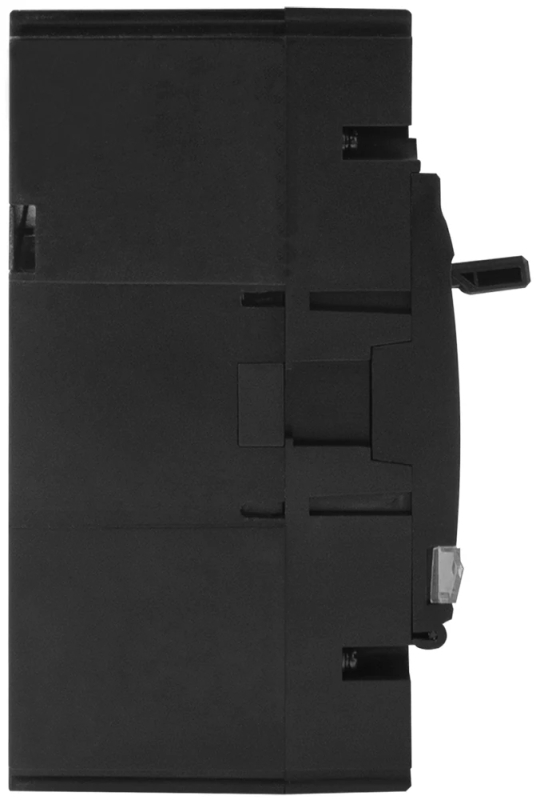

POWER circuit breaker E.INDUSTRIAL.UKM.250RE.250 WITH electronic TRIP, 3P, 250 A, E.NEXT
Price excl. tax:
€214.74
Price inc. tax:
€257.69
-
Code:i0770022
Switches designed to protect electric circuits from continuous overloads and short-circuit currents, as well as to quickly turn on and off sections of electrical networks with a frequency of 50 Hz.
Estimated Shipping
outside Varna starts at
€12.53
to Varna starts at
€12.53
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: i0770022
Number of poles: 3
Uimp: 8 kV
Ui: 1000 V
Category: B
Tightening torque: 12 Nm
Ue: AC 690 V
Current type: AC
Rated frequency: 50 Hz
Max. conductor cross-section: 120 mm²
IP: housing IP30; terminals IP00
Compliance with standards: DSTU EN 60947-1; EN 60947-2 DSTU
Utilization: specialized enterprise
Icu: 50 kA
In: 250 A
Endurance mech./el.: ≤ 40000/8000 cycles
Ics (AC 400 V): 50 kA
Operating temperature range: −30…+70 °C
Mounting: mounting plate
Disconnector type: electronic
Altitude: ≤ 2000 m
Operating position: vertical/horizontal, up to 5°
Warranty: 24 months
