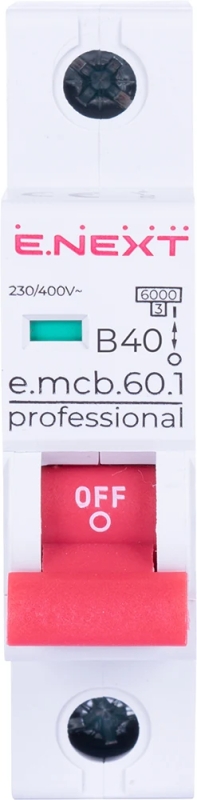

Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT

Price excl. tax: €2.63
Price inc. tax: €3.16
  • Code:
    p041012
Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW. Key characteristics: current limiting class: 3; nominal DC voltage (V/pole): 48; impulse withstand voltage Uimp: 6 kV.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    40 A
  • Number of poles:
    1P
  • Shutdown curve:
    B
  • Breaking capacity [kA]:
    6 kA

We have 137 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT
Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT Modular circuit breaker E.MCB.PRO.60.1.B 40 NEW, 1P, 40 A, IN, 6 kA, NEW, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: p041012
Number of poles: 1
Rated current In: 40 A
Time-current characteristic: B
Current limiting class: 3
Nominal DC voltage (V/pole): 48
Impulse withstand voltage Uimp: 6 kV
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Application category: AC-22B
Climatic version: UHL4
Pollution degree: 2
Degree of protection (IP): IP20
Connection to FORK type busbar: top and bottom
Terminal tightening torque: 3 Nm
Max. conductor cross-section: 25 mm²
Nominal pre-limit breaking capacity Icu: 6 kA
Mechanical/electrical durability: ≤ 20,000 / 10,000 cycles
Operating temperature range: −30…+60 °C
Mounting: DIN rail 35 mm
Operating position: vertical/horizontal, deviation up to 5°
Weight: ≤ 100 g
Compliance with standards: DSTU EN 60898-1; EN 60947-2 DSTU
Disposal method: handover to a specialized company
Warranty: 12 months
