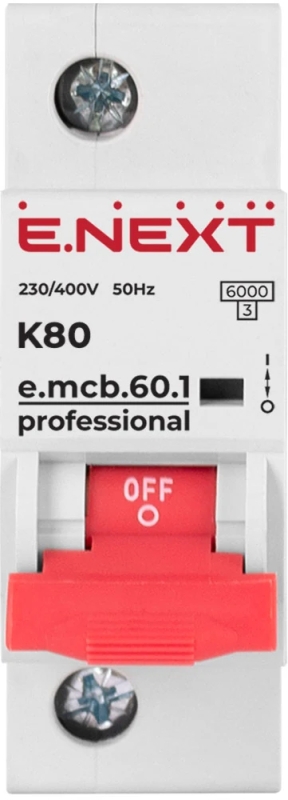

Modular circuit breaker E.MCB.PRO.60.1.K 80 NEW, 1P, 80 A, K, 6 kA NEW, E.NEXT
-
Code:p0430002
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Technical characteristics
Article: p0430002
Number of poles: 1
Rated current In: 80 A
Time-current characteristic: K
Current limiting class: 3
Rated DC voltage, V/pole: 60
Impulse withstand voltage Uimp: 6 kV
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Application category: AC-22B
Climatic version: UHL4
Pollution degree: 2
Degree of protection (IP): IP20
Connection to FORK type busbar: top and bottom
Terminal tightening torque: 3.5 Nm
Max. conductor cross-section: 35 mm² stranded / 50 mm² solid
Rated breaking capacity Icu: 6 kA
Mechanical/electrical durability: ≤ 8,500 / 1,500 cycles
Operating temperature range: −25…+40 °C
Mounting: DIN rail 35 mm
Operating position: vertical/horizontal, deviation up to 5°
Weight: ≤ 100 g
Compliance with standards: DSTU EN 60947-2; EN 60898-1 DSTU
Disposal method: handover to a specialized company
Warranty: 12 months
