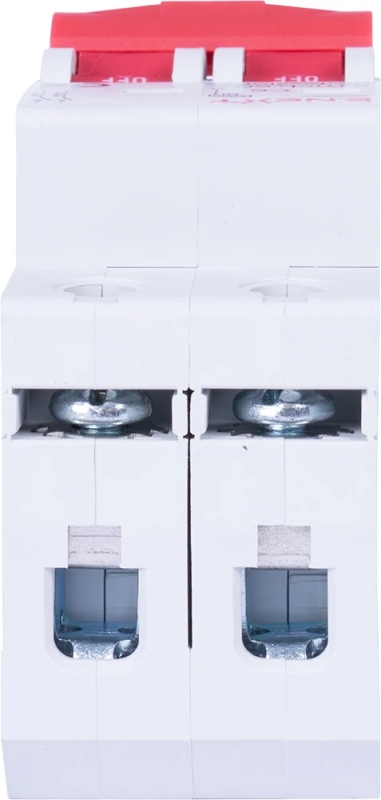

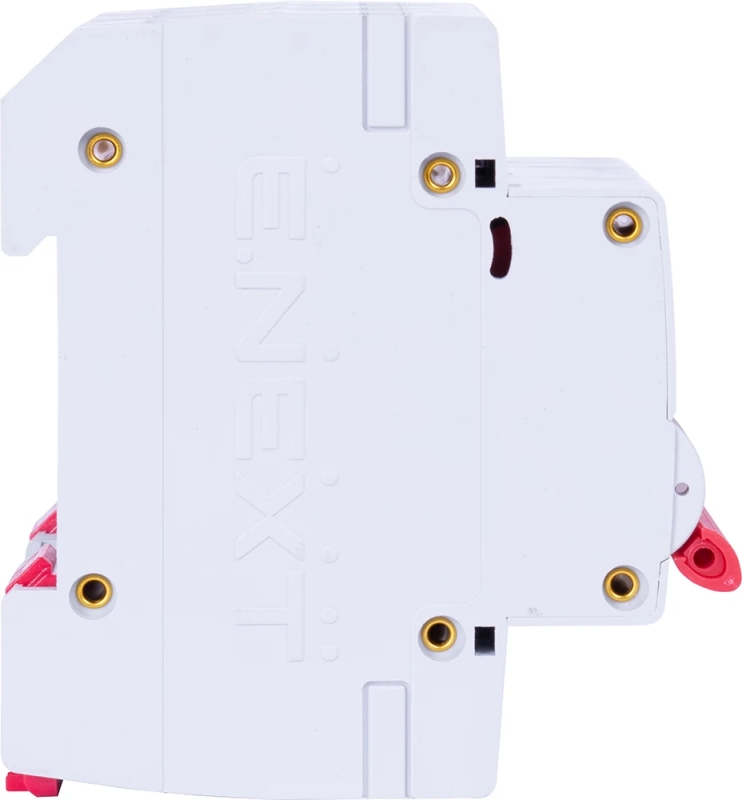

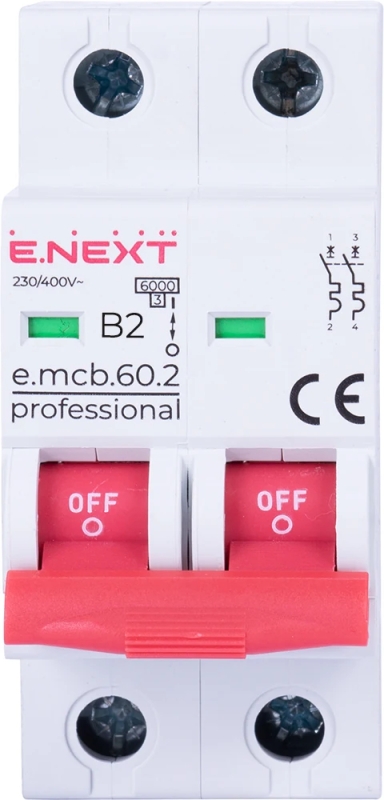

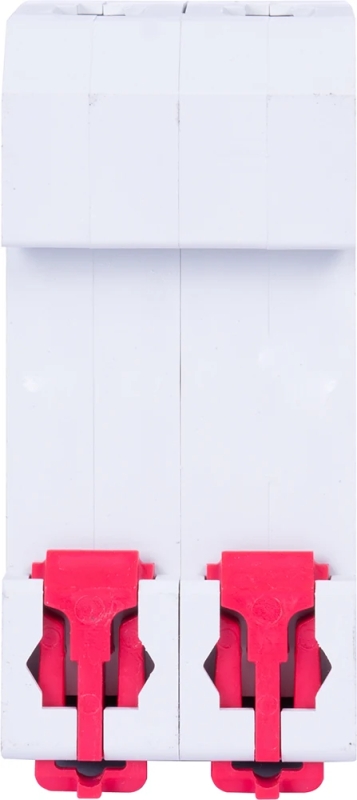

MODULAR CIRCUIT BREAKER E.MCB.PRO.60.2.B 2 NEW, 2P, 2A, IN, 6KA, NEW E.NEXT
Price excl. tax:
€4.73
9.25лв.
Price inc. tax:
€5.68
11.11лв.
-
Code:p041034
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: p041034
Nominal voltage DC, V/pole: 48
Connection to busbar type FORK (fork): top and bottom
Current limiting class: 3
Number of poles: 2
Time-current characteristic: B
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 3 N m
Altitude above sea level: ≤2000 m
Insulation voltage Ui: 500 V
Nominal operating voltage Ue: AC 230/400 V
Current type: AC
Nominal frequency: 50 Hz
Climatic version: UHL4
Pollution degree: 2
Max. conductor cross-section: 25 mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60898-1; EN 60947-2
Disposal method: handover to a specialized company
Limited breaking capacity Icu: 6 kA
Rated current In: 2 A
Wear resistance mech./el.: ≤20 000 / 10 000 cycles
Operating temperature range: −30…+60 °C
Mounting: on DIN-rail 35 mm
Operating position: vertical/horizontal, deviation ≤5°
Weight: ≤200 g
Warranty: 12 months
Article: p041034
Nominal voltage DC, V/pole: 48
Connection to busbar type FORK (fork): top and bottom
Current limiting class: 3
Number of poles: 2
Time-current characteristic: B
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 3 N m
Altitude above sea level: ≤2000 m
Insulation voltage Ui: 500 V
Nominal operating voltage Ue: AC 230/400 V
Current type: AC
Nominal frequency: 50 Hz
Climatic version: UHL4
Pollution degree: 2
Max. conductor cross-section: 25 mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60898-1; EN 60947-2
Disposal method: handover to a specialized company
Limited breaking capacity Icu: 6 kA
Rated current In: 2 A
Wear resistance mech./el.: ≤20 000 / 10 000 cycles
Operating temperature range: −30…+60 °C
Mounting: on DIN-rail 35 mm
Operating position: vertical/horizontal, deviation ≤5°
Weight: ≤200 g
Warranty: 12 months
-
Number of poles:2P
-
Rated current [A]:2 A
-
Shutdown curve:B
-
Breaking capacity [kA]:6 kA
