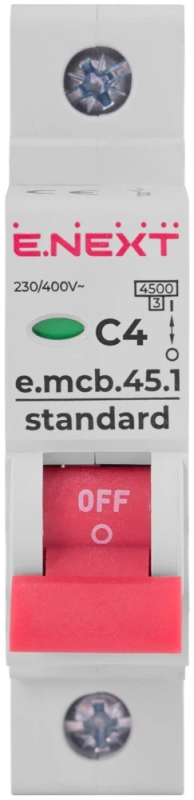

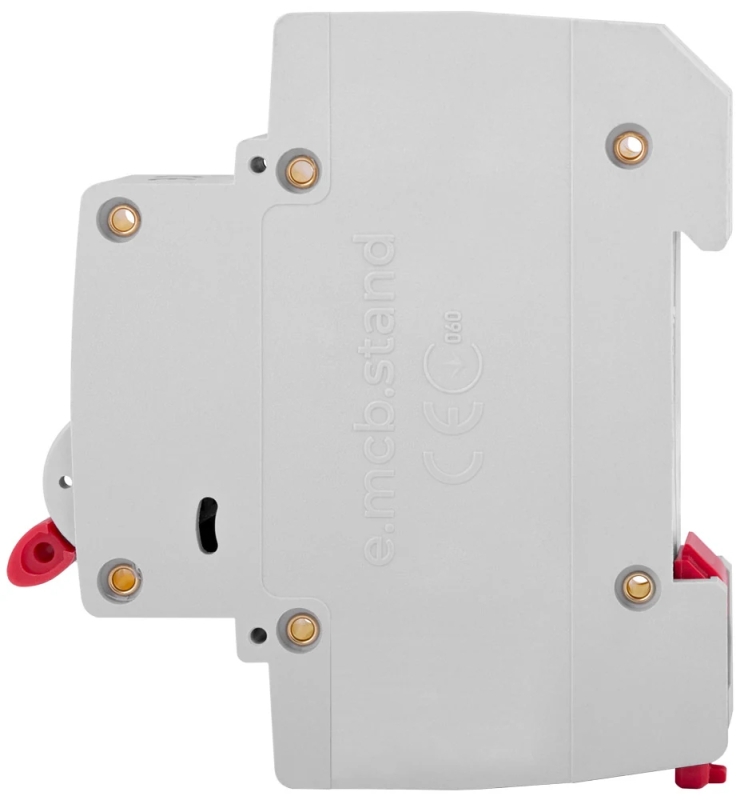

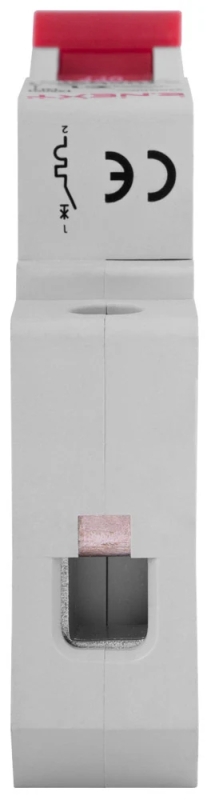

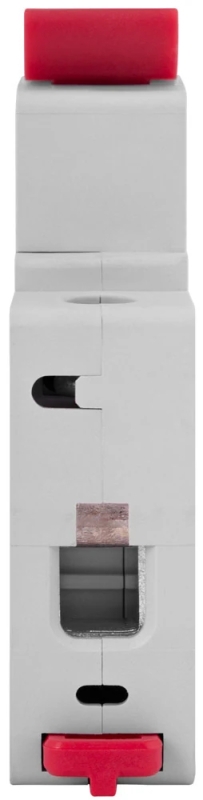

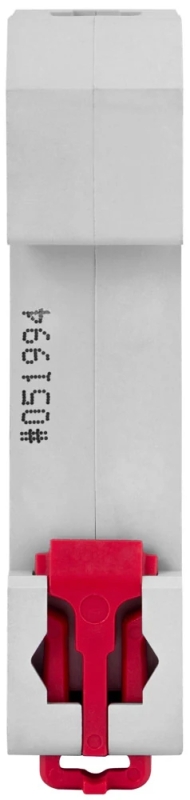

MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C4, 1P, 4A, C, 4.5 KA E.NEXT
Price excl. tax:
€2.02
3.95лв.
Price inc. tax:
€2.42
4.73лв.
-
Code:s002004
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: s002004
Connection to a comb-busbar (FORK): no
Current limitation class: 3
Poles: 1
Tripping curve: C
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 3 Nm
Altitude: ≤2000 m
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Climatic version: UHL4
Pollution degree: 2
Max. conductor cross-section: 25 mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60898-1; EN 60947-2
Rated breaking capacity Icu: 4.5 kA
Rated current In: 4 A
Endurance (mech./el.): ≥10,000 / ≥4,000 cycles
Temperature range: −30…+60 °C
Mounting: DIN rail 35 mm
Operating position: vertical/horizontal (deviation ≤5°)
Weight: ≤100 g
Warranty: 12 months
Article: s002004
Connection to a comb-busbar (FORK): no
Current limitation class: 3
Poles: 1
Tripping curve: C
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 3 Nm
Altitude: ≤2000 m
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Climatic version: UHL4
Pollution degree: 2
Max. conductor cross-section: 25 mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60898-1; EN 60947-2
Rated breaking capacity Icu: 4.5 kA
Rated current In: 4 A
Endurance (mech./el.): ≥10,000 / ≥4,000 cycles
Temperature range: −30…+60 °C
Mounting: DIN rail 35 mm
Operating position: vertical/horizontal (deviation ≤5°)
Weight: ≤100 g
Warranty: 12 months
-
Number of poles:1P
-
Rated current [A]:4 A
-
Shutdown curve:C
-
Breaking capacity [kA]:4.5 kA
