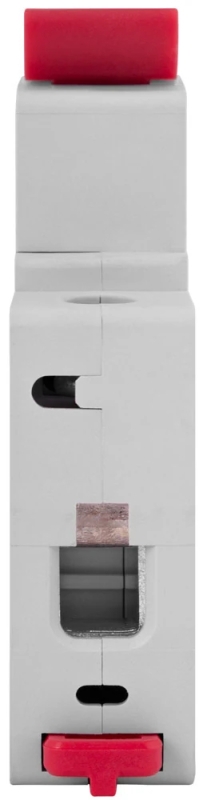

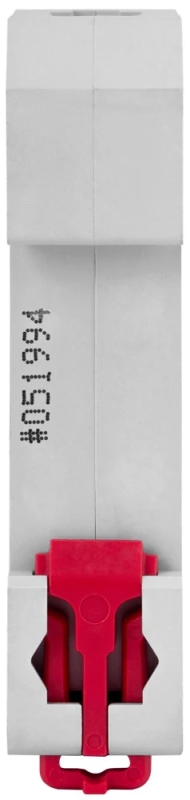

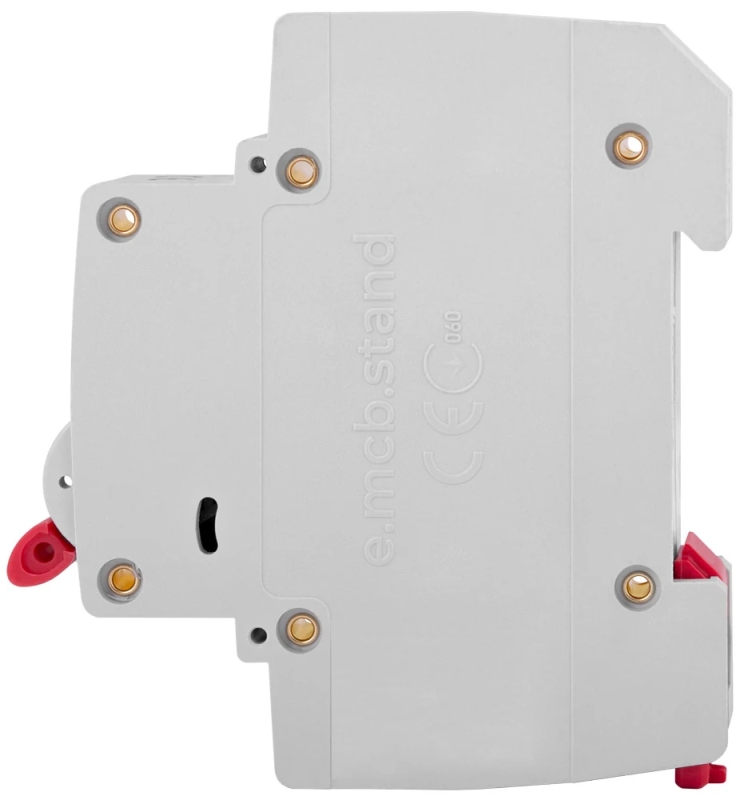

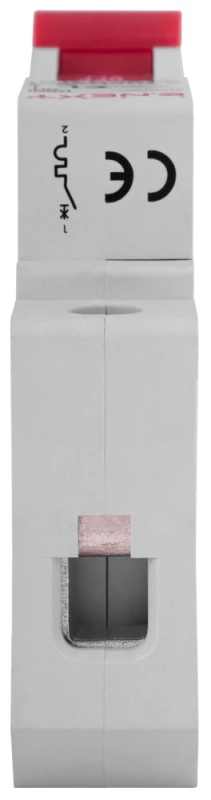

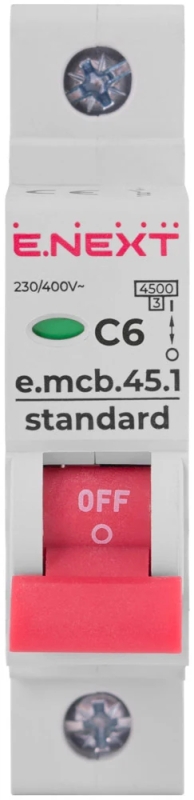

MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C6, 1P, 6A, C, 4.5 KA E.NEXT
Price excl. tax:
€1.84
3.60лв.
Price inc. tax:
€2.21
4.32лв.
-
Code:s002006
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: s002006
Connection to comb-busbar (FORK): no
Current limitation class: 3
Poles: 1
Tripping curve: C
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 3 Nm
Altitude: ≤2000 m
Ui: 500 V
Ue: AC 230/400 V
Current type: AC | 50 Hz
Climatic version: UHL4
Pollution degree: 2
Max. cross-section: 25 mm²
IP: IP20
Standards: DSTU EN 60898-1; EN 60947-2
Icu: 4.5 kA
In: 6 A
Endurance (mech./el.): ≥10 000 / ≥4 000 cycles
Temperature: −30…+60 °C
Mounting: DIN 35 mm
Position: vertical/horizontal (≤5°)
Weight: ≤100 g
Warranty: 12 months
Article: s002006
Connection to comb-busbar (FORK): no
Current limitation class: 3
Poles: 1
Tripping curve: C
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 3 Nm
Altitude: ≤2000 m
Ui: 500 V
Ue: AC 230/400 V
Current type: AC | 50 Hz
Climatic version: UHL4
Pollution degree: 2
Max. cross-section: 25 mm²
IP: IP20
Standards: DSTU EN 60898-1; EN 60947-2
Icu: 4.5 kA
In: 6 A
Endurance (mech./el.): ≥10 000 / ≥4 000 cycles
Temperature: −30…+60 °C
Mounting: DIN 35 mm
Position: vertical/horizontal (≤5°)
Weight: ≤100 g
Warranty: 12 months
-
Number of poles:1P
-
Rated current [A]:6 A
-
Shutdown curve:C
-
Breaking capacity [kA]:4.5 kA
