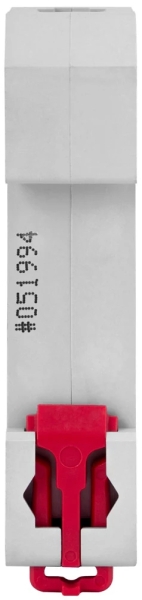

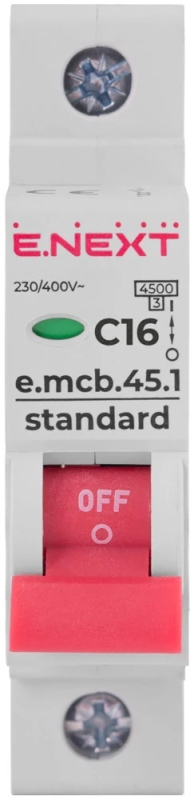

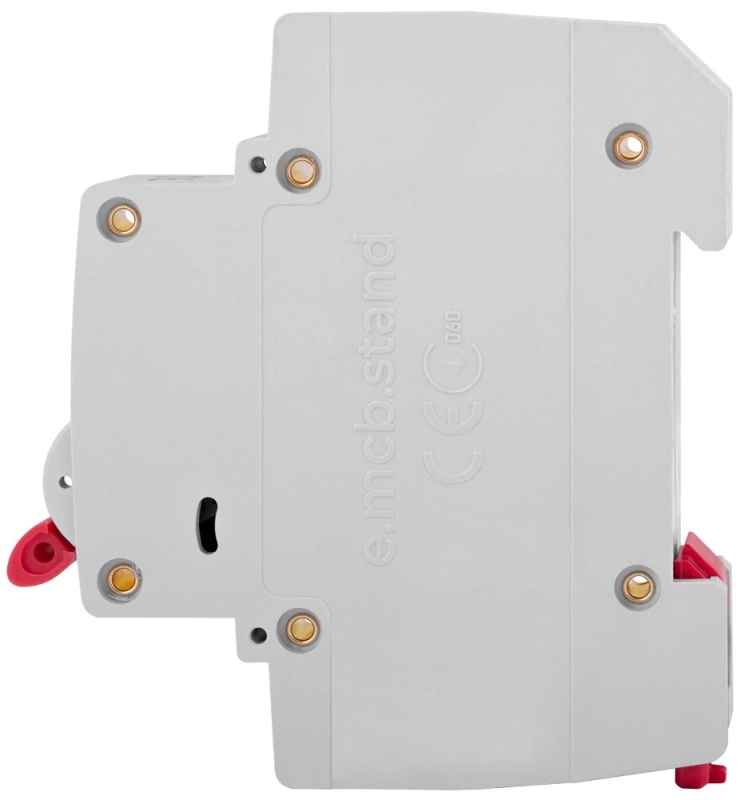

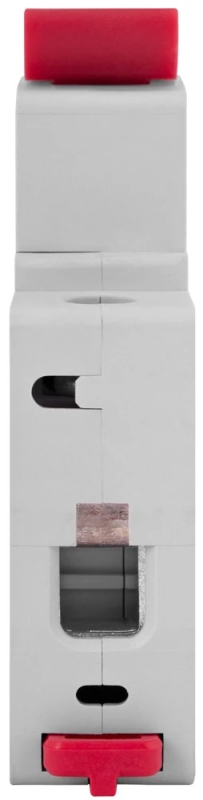

MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C16, 1P, 16A, C, 4.5 KA E.NEXT
Price excl. tax:
€1.84
3.60лв.
Price inc. tax:
€2.21
4.32лв.
-
Code:s002008
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: s002008
Connection to comb-busbar (FORK): no
Current limitation class: 3
Poles: 1
Curve: C
Uimp: 6 kV
AC-22B
Tightening: 3 Nm
≤2000 m
Ui 500 V | Ue AC 230/400 V | 50 Hz | AC
UHL4 | Pollution degree: 2
Max. cross-section: 25 mm²
IP20
Standards: DSTU EN 60898-1; EN 60947-2
Icu: 4.5 kA
In: 16 A
Endurance (mech./el.): ≥10 000 / ≥4 000
Temperature: −30…+60 °C
DIN 35 mm
Position: vertical/horizontal (≤5°)
Weight: ≤100 g
Warranty: 12 months
Article: s002008
Connection to comb-busbar (FORK): no
Current limitation class: 3
Poles: 1
Curve: C
Uimp: 6 kV
AC-22B
Tightening: 3 Nm
≤2000 m
Ui 500 V | Ue AC 230/400 V | 50 Hz | AC
UHL4 | Pollution degree: 2
Max. cross-section: 25 mm²
IP20
Standards: DSTU EN 60898-1; EN 60947-2
Icu: 4.5 kA
In: 16 A
Endurance (mech./el.): ≥10 000 / ≥4 000
Temperature: −30…+60 °C
DIN 35 mm
Position: vertical/horizontal (≤5°)
Weight: ≤100 g
Warranty: 12 months
-
Number of poles:1P
-
Rated current [A]:16 A
-
Shutdown curve:C
-
Breaking capacity [kA]:4.5 kA
