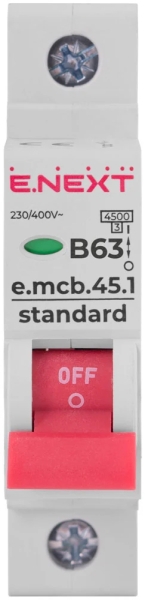

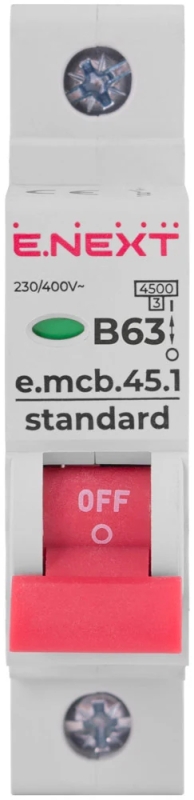

Modular circuit breaker e.mcb.stand.45.1.B63, 1P, 63 A, B, 4.5 kA E.NEXT

Technical characteristics

Item: s001014
Rated current (In): 63 A
Number of poles: 1P
Weather characteristic: B
Rated breaking capacity (Icu): 4.5 kA
Rated operating voltage (Ue): AC 230/400 V
Nominal DC voltage: 48 V/pole
Current type: AC
Nominal frequency: 50 Hz
Current limitation class: 3
Impulse withstand voltage (Uimp): 6 kV
Insulation voltage (Ui): 500 V
Application category: AC-22 B
FORK busbar connection: No
Degree of protection: IP20
Operating temperature: –30…+60 °C
Climate performance: UHL4
Pollution level: 2
Maximum cross-section of connecting wires: 25 mm²
Tightening torque of contact terminals: 3 Nm
Mechanical/electrical durability: ≥10,000 / 4,000 cycles
Mounting: On a 35 mm DIN rail
Operating position: Vertical or horizontal, with a deviation of up to 5°
Maximum altitude above sea level: 2000 m
Mass: ≤100g
Compliance with standards: DSTU EN 60898-1, DSTU EN 60947-2
Disposal method: Handover to a specialized company
Warranty: 12 months
