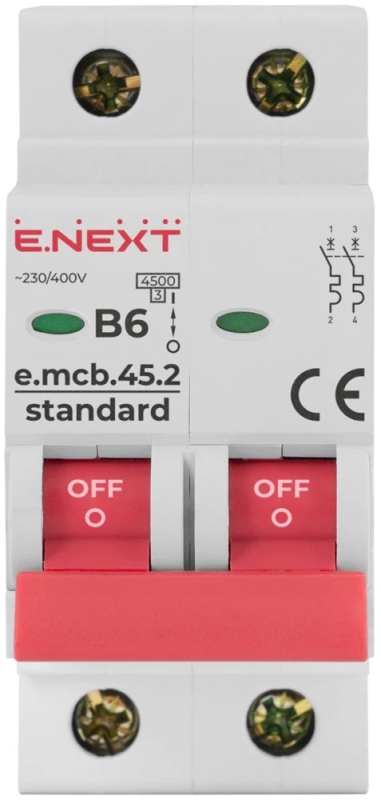

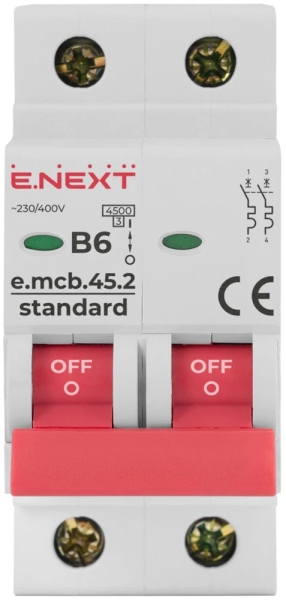

Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT

Price excl. tax: €3.35
Price inc. tax: €4.02
  • Code:
    s001015
Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA. Key characteristics: nominal voltage DC, V/pole: 48 V; connection to comb-busbar (FORK): no; current limitation class: 3.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    6 A
  • Number of poles:
    2P
  • Shutdown curve:
    B
  • Breaking capacity [kA]:
    4.5 kA

We have 40 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT
Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT Modular circuit breaker E.MCB.STAND.45.2.B6, 2P, 6 A, B, 4.5 kA, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: s001015
Nominal voltage DC, V/pole: 48 V
Connection to comb-busbar (FORK): no
Current limitation class: 3
Number of poles: 2
Tripping curve: B
Impulse withstand voltage Uimp: 6 kV
Application category: AC-22B
Terminal tightening torque: 3 Nm
Permissible altitude: ≤ 2000 m
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 230/400 V
Current type: AC
Rated frequency: 50 Hz
Climatic version: UHL4
Pollution degree: 2
Max. conductor cross-section: 25 mm²
Degree of protection (IP): IP20
Compliance with standards: DSTU EN 60898-1; EN 60947-2
Disposal method: hand over to a specialist company
Rated breaking capacity Icu: 4.5 kA
Rated current In: 6 A
Mechanical/electrical durability: ≥ 10,000 / ≥ 4,000 cycles
Operating temperature range: −30…+60 °C
Mounting: DIN rail 35 mm
Operating position: vertical/horizontal (deviation ≤ 5°)
Weight: ≤ 200 g
Warranty: 12 months
