Home Circuit breakers and residual current protection Combined residual current operated devices (RCBO) RCBO series E.STAND Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT

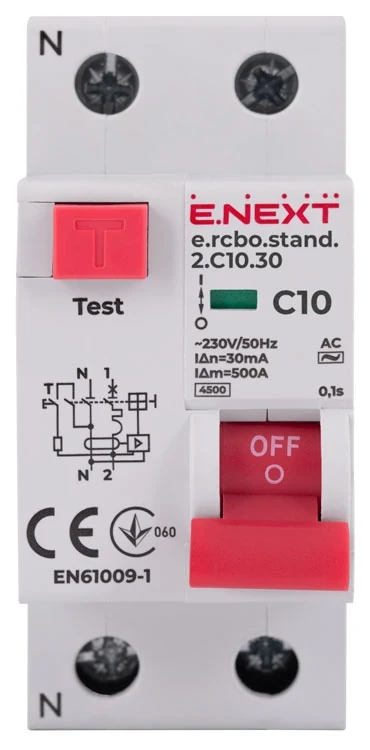

Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT

Price excl. tax: €11.15
Price inc. tax: €13.38
  • Code:
    s034102
Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA. Key characteristics: connection to FORK type busbar: no; impulse withstand voltage Uimp: 4 kV; terminal tightening torque: 3 Nm.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    10 A
  • Number of poles:
    1P+N
  • Shutdown curve:
    C
  • Maximum leakage current [mA]:
    30 mA
  • Type:
  • Short circuit and overload protection:

We have 127 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT
Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT Residual current circuit breaker with overcurrent protection (RCBO) E.RCBO.STAND.2.C10.30, 1P+N, 10 A, C, 30 mA, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: s034102
Connection to FORK type busbar: no
Current limitation class: 2
Residual current tripping current: 30 mA
Number of poles: 1P+N
Current-time characteristic: C
Impulse withstand voltage Uimp: 4 kV
Terminal tightening torque: 3 Nm
Altitude above sea level: 2000 m
Insulation voltage Ui: 400 V
Rated operating voltage Ue: AC 230 V
Current type: AC
Rated frequency: 50 Hz
Max. conductor cross-section: 6 mm²
Degree of protection (IP): IP20
Compliance with standard: DSTU EN 61009-1
Disposal method: transfer to a specialized company
Rated breaking capacity Icu: 4.5 kA
Rated current In: 10 A
Wear resistance mech./el., I/O cycles: not less than 10,000 / 4,000
Operating temperature range: -25…+40 °C
Rated switching/breaking capacity: 500 A
Mounting: on DIN-rail 35 mm
Characteristics: electronic
Operating position: vertical/horizontal (deviation no more than 5°)
Weight: (no more) 250 g
Warranty: 12 months
