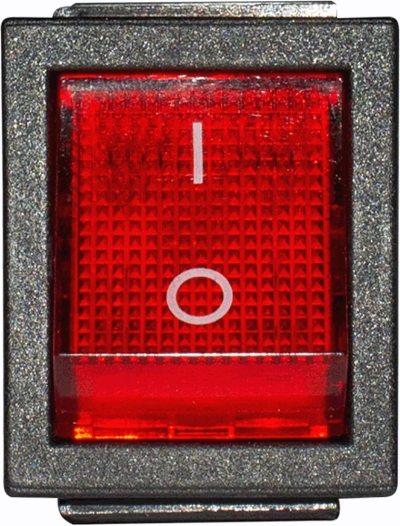

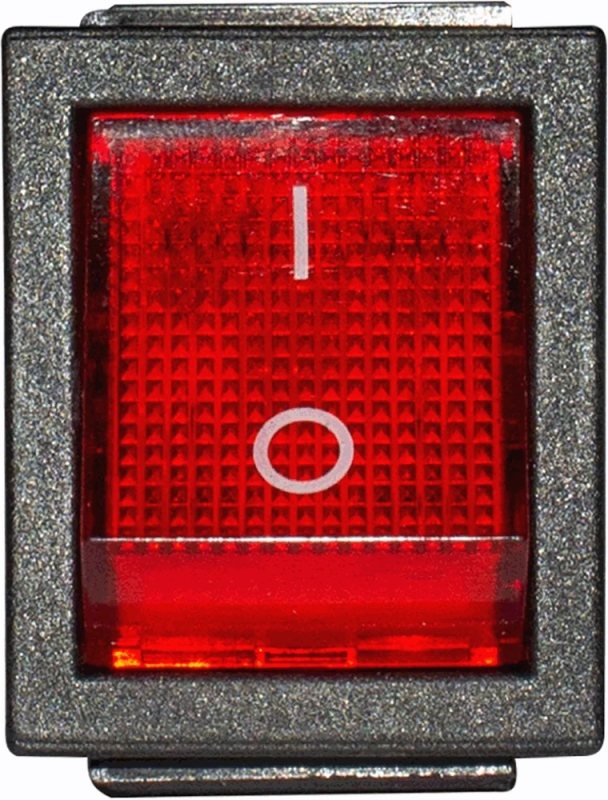

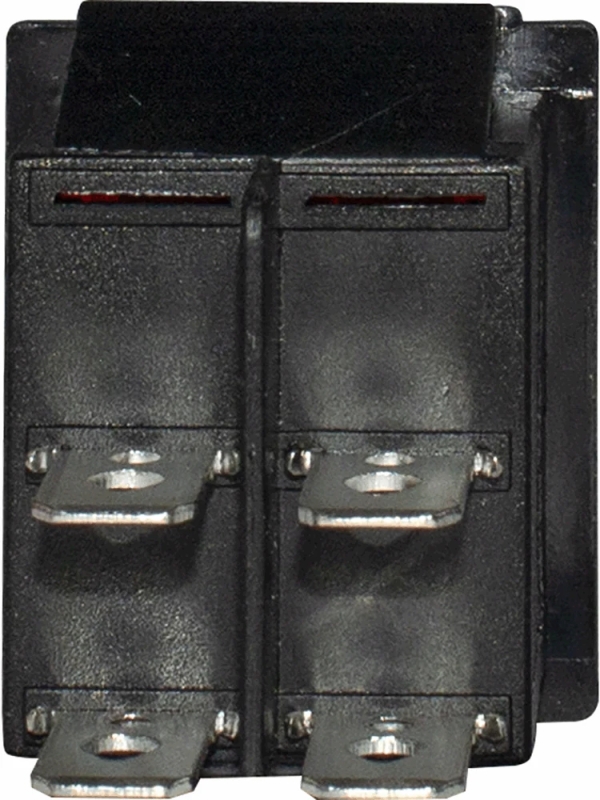

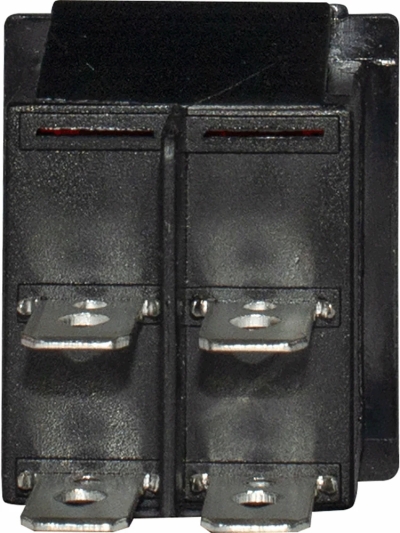

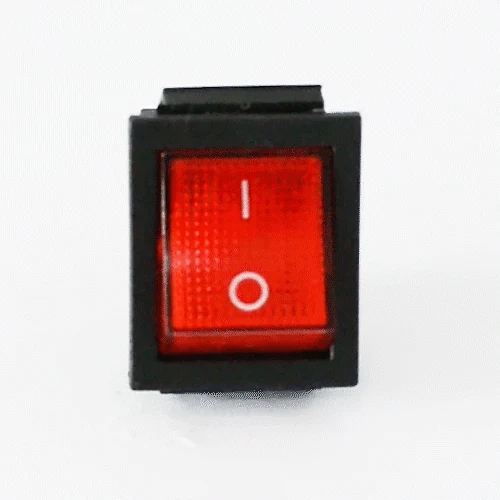

KEY switch E.SWITCH.KEY.04, 4 PIN, off/on, WITH backlight, E.NEXT
Price excl. tax:
€0.61
Price inc. tax:
€0.73
-
Code:s2040004
KEY switch E.SWITCH.KEY.04, 4 PIN, off/on, WITH backlight. Key characteristics: number of contact groups: 2×2 contacts, 2NO; color: red, with backlight; insulation voltage (Ui): 1500 V (1 min).
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: s2040004
Number of contact groups: 2×2 contacts, 2NO
Color: red, with backlight
Insulation voltage (Ui): 1500 V (1 min)

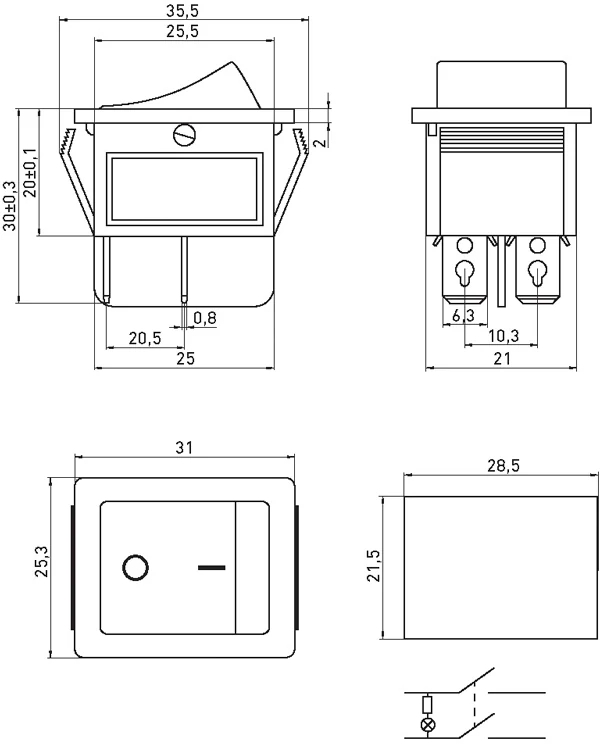

Dimensions of the mounting hole: 21.5×27 mm
Maximum operating current: 250 A
Number of buttons: 1
Altitude above sea level: 2000 m
Current type: AC
Rated frequency: 50 Hz
Pollution degree: 3
Compliance with standards: DSTU EN 60947-1; EN 60947-5-1
Disposal method: handover to a specialized company
Rated current In: 16 A (250 VAC)
Durable mechanical/electrical: not less than 100000/10000 cycles
Commutation: I-0
Operating temperature range: -25…+70 °C
Characteristics: ON-OFF with fixation
Warranty: 12 months
