PACKAGE SWITCH IN THE HOUSING E.INDUSTRIAL.SB.1-0-2.4.40, 4P, 40A (1-0-2) E.NEXT
Price excl. tax:
€22.47
43.95лв.
Price inc. tax:
€26.97
52.75лв.
-
Code:i0360013
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: i0360013
Number of poles: 3P+N
Impact withstand voltage Uimp: 6 kV
Application category: AC-22A, AC-23A
Altitude above sea level: 2000 m
Weight (no more): 0.7 kg
Insulation voltage Ui: 500 V
Rated operating voltage Ue: AC 440 V, DC 32 V
Current type: AC
Rated frequency: 50 Hz
Environment pollution degree: 3
Max. cross-section of connected wires, mm²: 10
Protection degree: IP65
Compliance with standards: DSTU EN 60947-1; EN IEC 60947-3; DSTU EN 60947-5-1
Disposal method: handover to a specialized company

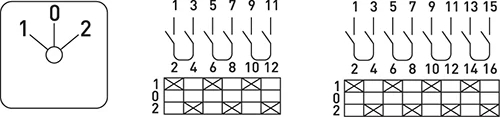

Switch position: 1-0-2
Rated current In: 40 A
Mechanical/electrical durability, cycles: ≤10,000 / 3,000
Operating temperature range: -25…+40 °C
Mounting: on DIN rail 35 mm; on mounting panel
Operating position: arbitrary
Warranty: 12 months
