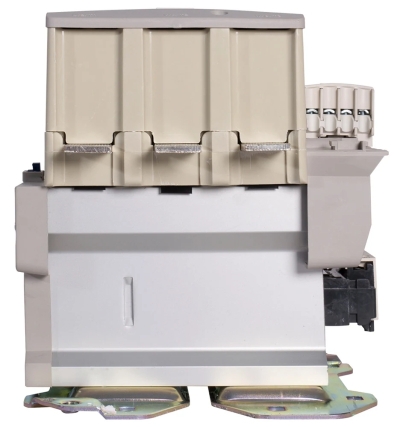

Contactor E.INDUSTRIAL.UKC.400.220, 220 V, 1NO, E.NEXT

Technical characteristics

Article: i.0090009
Number of poles: 3
Impulse withstand voltage Uimp: 8 kV
Application category: AC-3
Type and number of additional contacts: 1NO
Max. short-term overload (t≤1 s): 18×In
Altitude above sea level: 2000 m
Insulation voltage Ui: 690 V
Rated operating voltage Ue: AC 400/660 V
Current type: AC
Control coil voltage Uc: 220 V
Rated frequency: 50 Hz
Rated power of the controlled motor AC-3: 225 kW
Pollution degree: 3
Rated operating current (AC-3): 400 A
Degree of protection (IP): IP00
Compliance with standards: DSTU EN 60947-1; EN 60947-4-1
Disposal method: handover to a specialized company
Mechanical/electrical durability, cycles: ≤3,000,000 / 600,000
Operating temperature range: -25…+40 °C
Mounting: on a mounting panel
Operating position: any
Warranty: 12 months
