FREQUENCY INDICATOR LED E.AD22.FR, Ø22MM, 30-105 HZ E.NEXT
Price excl. tax:
€2.56
5.01лв.
Price inc. tax:
€3.07
6.00лв.
-
Code:s009037
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: s009037
Description: Panel frequency meter/indicator Ø22 mm

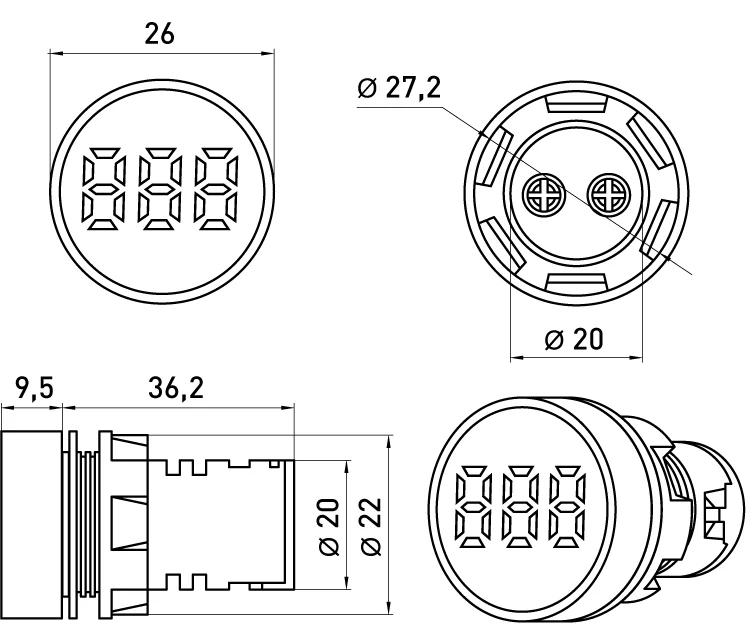

Hole diameter: 22 mm (external Ø28 mm)
Indication color: yellow
Supply voltage: 50–500 V AC
Rated operating voltage Ue: 230 V AC
Measuring range: 30–105 Hz
Material: plastic
Protection degree: IP54
Rated current In: 0.02 A
Max. conductor cross-section: 1.5 mm²
Operating temperature: -20…+40 °C
Altitude above sea level: 2000 m
Pollution degree: 3
Mounting: on mounting panel (hole Ø22 mm)
Operating position: any
Compliance: DSTU EN 60947-1; EN 60947-5-1
Disposal: hand over to a specialized company
Warranty: 12 months
