Insulated anchor clamp e.i.clamp.4.70.120.zr, reinforced, 4x(70–120 mm²)
Price excl. tax:
€15.30
29.92лв.
Price inc. tax:
€18.36
35.91лв.
-
Code:p0210010

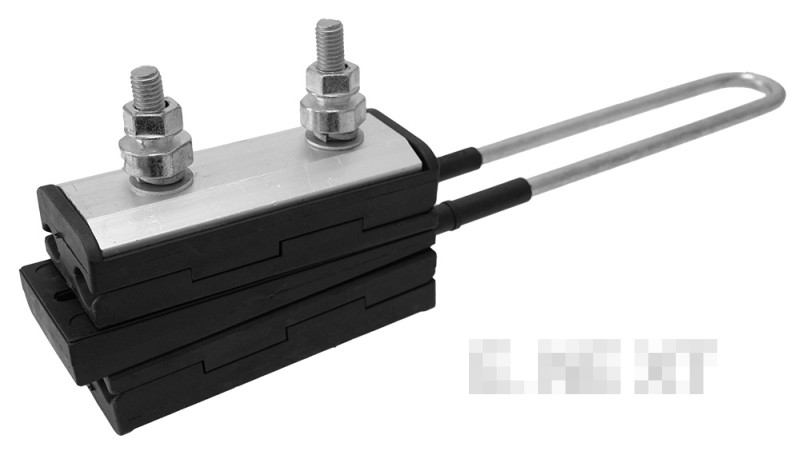

The anchor insulated clamp e.i.clamp.4.70.120.zr is designed for anchor (end) fastening of the SIP with four supporting wires. It is used in the construction of overhead power lines and distribution networks for reliable fixing of insulated wires to supports and consoles.
The execution is reinforced, which provides increased mechanical resistance when operating in outdoor conditions. The clamp is suitable for installation in a wide temperature range.
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€3.40
outside Varna starts at
€3.54
Quick Buy
Just 4 fields to fill in
Technical characteristics
Item: p0210010
Connection wire cross-section, mm²: 4x(70–120)
Operating temperature range, °C: -50...+60
Weight, kg: 1.26
Compliance with standards: DSTU EN 50483-1
Disposal method: handover to a specialized company
Screw tightening torque, Nm: 44
Number of wires in the connecting wire: 4-wire
Warranty, months: 12
