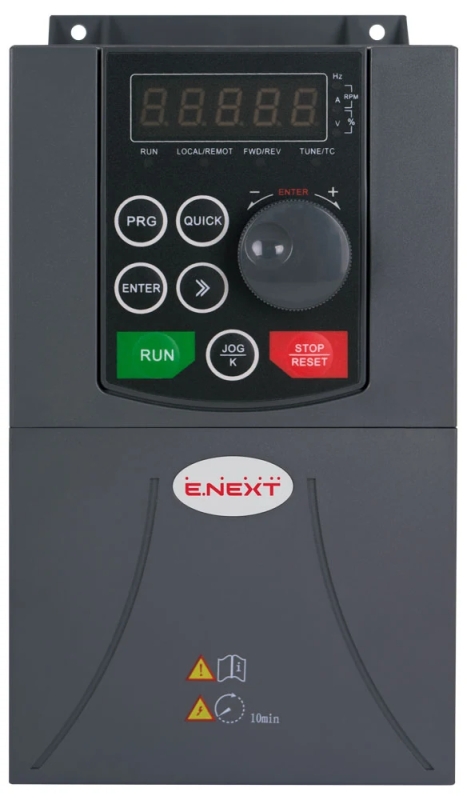

FREQUENCY CONVERTER E.F-DRIVE.PRO.0R7 0.75 KW 3P / 380V E.NEXT
Price excl. tax:
€306.78
600.01лв.
Price inc. tax:
€368.14
720.02лв.
-
Code:p0800102
Estimated Shipping
outside Varna starts at
€4.27
to Varna starts at
€4.27
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: p0800102
Rated power: 0.75 kW
Input/output voltage: 3×380 / 3×380 V
Input/output current: 3.4 / 2.1 A
Output frequency (Hz): V/F: 0–3200 / SVC: 0–300
Carrier frequency: 0.5–16 kHz
Tolerances: voltage ±15%; frequency ±5%; unbalance ≤3%
Acceleration/braking time: 0–6500 s
Overload capacity: 150% – 1 min; 180% – 3 sec
Inputs/outputs: 5(7) digital, 1 high-speed up to 100 kHz, 1(3) analog inputs (0…+10V / 0…20mA), 1(2) open collector or high-frequency pulse output, 1 relay output, 1(2) analog output (0…+10V / 0…20mA), RS485 (Modbus RTU)
Brake module: built-in
Programming panel: included, removable
Cooling: forced
Protection degree: IP20
Compliance with standards: DSTU EN 61800-3; EN 61800-5-1
Disposal method: handover to a specialized company
Warranty: 12 months
